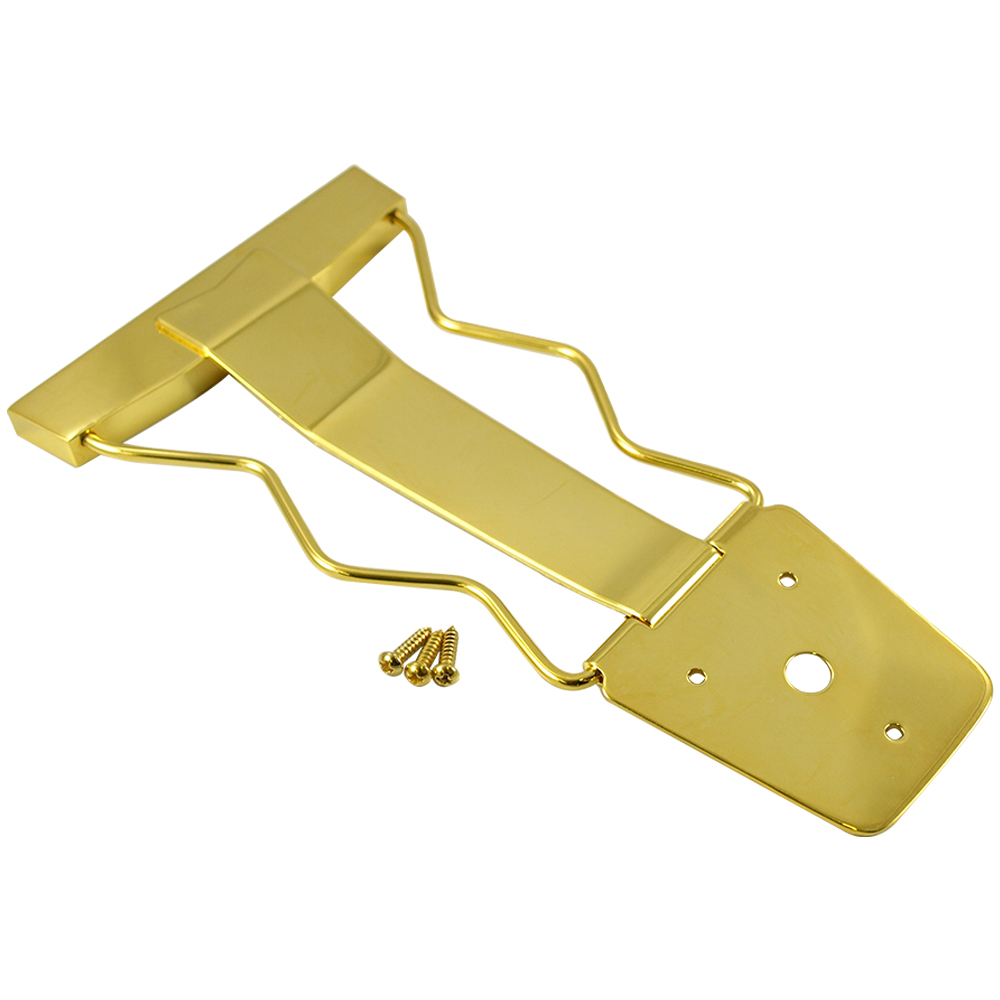

WD Music Replacement Tailpiece for Vintage Gibson ES-175 - Gold
This tailpiece is a correct replacement for vintage Gibson® ES-175's.
- Tension bar overall width: 3 61/64 in. (100mm)
- Tailpiece length not including hinge: 5 13/32 in. (137.5mm)
- Length of Hinge to center of hinge loop: 2 11/32 in. (59.5mm)
- Hinge width: 2 9/64 in. (54.4mm)
- Strap button hole location: 1 13/64 in (30.7mm) below hinge loop center
- Hinge mounting hole locations: 9/16 in. (14.3mm) above strap button hole center
- Lower mounting hole location: 11/16 below center of strap button hole
- Upper hinge mounting holes: 1 1/16 in. (27.1mm) apart centered above strap button hole
Specifications
- String Spacing at tension bar: 2 1/8 in (54mm)- Tension bar overall width: 3 61/64 in. (100mm)
- Tailpiece length not including hinge: 5 13/32 in. (137.5mm)
- Length of Hinge to center of hinge loop: 2 11/32 in. (59.5mm)
- Hinge width: 2 9/64 in. (54.4mm)
- Strap button hole location: 1 13/64 in (30.7mm) below hinge loop center
- Hinge mounting hole locations: 9/16 in. (14.3mm) above strap button hole center
- Lower mounting hole location: 11/16 below center of strap button hole
- Upper hinge mounting holes: 1 1/16 in. (27.1mm) apart centered above strap button hole
