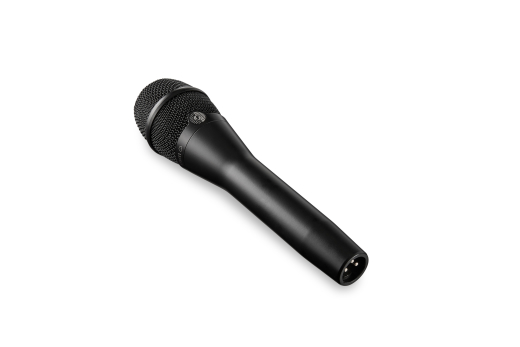

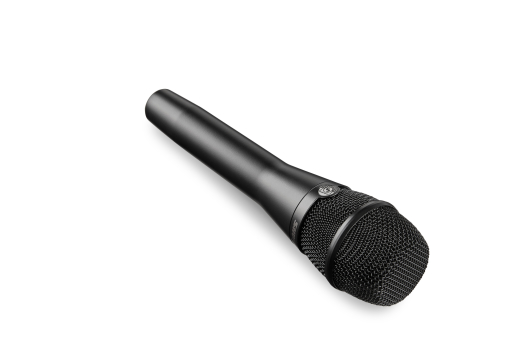

Shure KSM11 Cardioid Condenser Handheld Microphone
Additional Photos:
Product Videos :
Buy Online
This product is delivered by download. Once your payment has been approved your software license will be sent to you via email. The download link for your purchase will be included with your license.
Software Is Not Returnable
Features
• Proprietary condenser capsule utilizing a gold diaphragm and premium electronics for exceptional dynamic range and transient response.• Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail.
• Streamlined design for an overall smaller and lighter capsule footprint.
• Advanced suspended isolation system for virtually zero handling noise.
• Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals.
Specifications
Type: Electret CondenserPolar Pattern: Cardioid
Frequency Response: 80 Hz to 20 kHz
Output Impedance (1 kHz): 150 Ω
Sensitivity at 1 kHz, open circuit voltage:
1k load: 49 dBV/Pa (3.5 mV)
5k load: -48 dBV/Pa (3.9 mV)
1 Pa=94 dB SPL
Maximum SPL with 5 VDC: 149 dB SPL
Signal-to-Noise Ratio:
75 dB
S/N ratio is the difference between 94 dB SPL and equivalent
SPL of self noise, A-weighted
Dynamic Range with 5 VDC:
1k load: 130 dB
5k load: 131 dB
Clipping Level with 5 VDC:
1k load: 6.2 dBV
5k load: 7.7 dBV
Self Noise: 19 dB SPL
typical, equivalent SPL, A-weighted
Common Mode Rejection: 55 dB
Connector: Three-pin professional audio (XLR), male, balanced
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements: 11 to 52 V DC phantom power (IEC-61938) 5.2 mA, maximum
Housing: Aluminum and steel grille
