Behringer Waves Tidal Modulator

Additional Photos:


Product Videos :

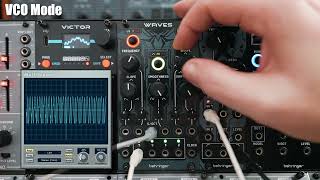

YouTube Video

Surf's up because the totally tubular Behringer WAVES digital tidal modulator and function generator is here! Dive into a righteous sea of sonic possibilities with this rad synth module, featuring 3 generator modes, AD and AR envelopes, and a looping VC-LFO/VCDO. It's time to shred some sonic waves, dude!
Master the Elements of Sound
WAVES offers 4 output modes, letting you shape your sound with a variety of gnarly forms, amplitudes, times, and frequencies. With the Shape control, you can explore tons of combo moves featuring linear, exponential, and sinusoidal segments. This module is totally amped up!
Sync Up and Catch the Rhythm
Get ready to hang loose and vibe with the universe thanks to the external clocking PLL that allows you to create (sub)harmonics in sync with other VCOs. Plus, with up to 16-bit CV control, you'll experience an super accurate resolution for your sonic adventures.
A Perfect Fit for Your Eurorack Ecosystem
The WAVES synth module fits snugly into your Eurorack Ecosystem, no doubt. It's like a perfect beach house for your modular setup to chill in. With the WAVES module in your lineup, you'll be catching sick audio waves in no time!
• Based on Mutable Instruments Tides
• 3 generator modes with AD and AR envelopes plus looping VC-LFO/VCDO
• 4 output modes featuring various shapes, amplitudes, times and frequencies
• Shape control to cover combinations of linear, exponential, or sinusoidal segments
• External clocking PLL to create (sub)harmonics from other VCOs
• Up to 16-bit CV control for extremely accurate resolution
• Eurorack specs: 14 HP, 50 mA +12 V, 20 mA -12 V
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Frequency CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
V/Oct
3.5 mm TS jack, -3 V to +5 V range, impedance 50 kΩ
Smoothness CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Shape CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Shift/Level CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Trig
3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ
Clock
3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ
Outputs
- 4 x 3.5 mm TS jack, DC coupled, impedance 1 kΩ
Controls
- Frequency
- Shape
- Slope
- Smoothness
- Shift/Level
Attenuverters
- Slope
- Frequency
- Smoothness
- Shape
- Shift/Level
Buttons
- Frequency Range
- Mode
- Relationship
Power Consumption
- 50 mA (+12 V) / 20 mA (-12 V)
Master the Elements of Sound
WAVES offers 4 output modes, letting you shape your sound with a variety of gnarly forms, amplitudes, times, and frequencies. With the Shape control, you can explore tons of combo moves featuring linear, exponential, and sinusoidal segments. This module is totally amped up!
Sync Up and Catch the Rhythm
Get ready to hang loose and vibe with the universe thanks to the external clocking PLL that allows you to create (sub)harmonics in sync with other VCOs. Plus, with up to 16-bit CV control, you'll experience an super accurate resolution for your sonic adventures.
A Perfect Fit for Your Eurorack Ecosystem
The WAVES synth module fits snugly into your Eurorack Ecosystem, no doubt. It's like a perfect beach house for your modular setup to chill in. With the WAVES module in your lineup, you'll be catching sick audio waves in no time!
Features
• Digital tidal modulator and function generator• Based on Mutable Instruments Tides
• 3 generator modes with AD and AR envelopes plus looping VC-LFO/VCDO
• 4 output modes featuring various shapes, amplitudes, times and frequencies
• Shape control to cover combinations of linear, exponential, or sinusoidal segments
• External clocking PLL to create (sub)harmonics from other VCOs
• Up to 16-bit CV control for extremely accurate resolution
• Eurorack specs: 14 HP, 50 mA +12 V, 20 mA -12 V
Specifications
Slope CV3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Frequency CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
V/Oct
3.5 mm TS jack, -3 V to +5 V range, impedance 50 kΩ
Smoothness CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Shape CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Shift/Level CV
3.5 mm TS jack, -8 V to +8 V range, impedance 50 kΩ
Trig
3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ
Clock
3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ
Outputs
- 4 x 3.5 mm TS jack, DC coupled, impedance 1 kΩ
Controls
- Frequency
- Shape
- Slope
- Smoothness
- Shift/Level
Attenuverters
- Slope
- Frequency
- Smoothness
- Shape
- Shift/Level
Buttons
- Frequency Range
- Mode
- Relationship
Power Consumption
- 50 mA (+12 V) / 20 mA (-12 V)
