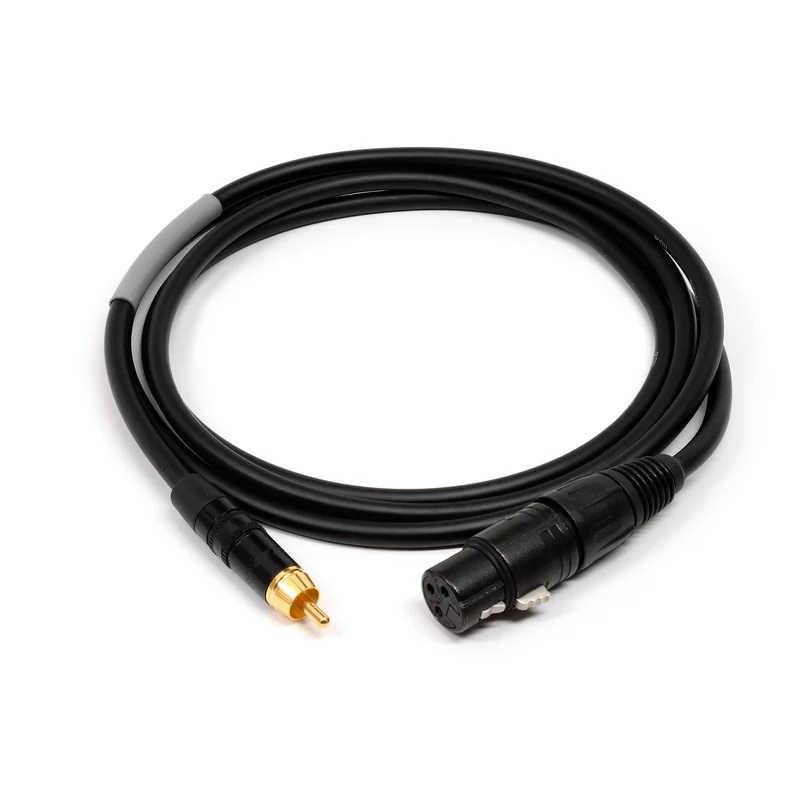

Benchmark Media XLRF to RCA Adapter Cable for Analog Audio, Pin 3 Floating - 3'

Hand assembled in the USA with true silver solder
Benchmark Studio&Stage™ Analog XLR Cables combine the best cable, connectors, and construction techniques in order to offer performance that meets the demands of world-class studios, while providing the strength and reliability required for stage applications. Our professional cables are also well suited for hi-fi applications because they meet or exceed the electrical performance of the best high-end hi-fi cables.

Applications
This special adapter cable connects transformerless balanced analog outputs to unbalanced analog inputs. Use this cable to connect the transformerless (electronically balanced) analog output from any Benchmark product (such as a DAC1 or DAC2) to an unbalanced analog input on a power amplifier or Hi-Fi "preamplifier". This cable will work will all Benchmark balanced analog outputs. Please note that this cable will not work with the transformer-coupled analog outputs found on some non-Benchmark products because pin 3 of this cable is floating.

Special Wiring (pin 3 floating)

- XLR pin 1 to RCA ring
- XLR pin 2 to RCA center pin
- XLR pin 3 - open

Specifications

- 23 AWG, 60-strand copper conductors
- Special cross-linked PE insulation
- Flexible in extreme cold weather
- High-density (94% ) TAC braided copper shield
- Conductor DC resistance: 19.8 Ohms / 1000 ft.
- Shield DC resistance: 9.4 Ohms / 1000 ft.
- Capacitance between conductors: 21 pF / ft.
- Capacitance between conductors and shield: 32 pF / ft.
- Nominal impedance: 88 Ohms
- Hand assembled in the USA with true silver solder

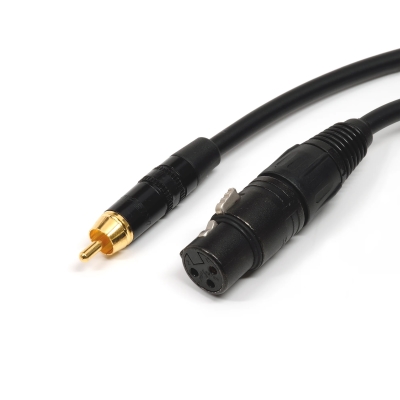

- Input end is XLR-Female, output end is RCA-Male

Do not use this cable with digital signals.
