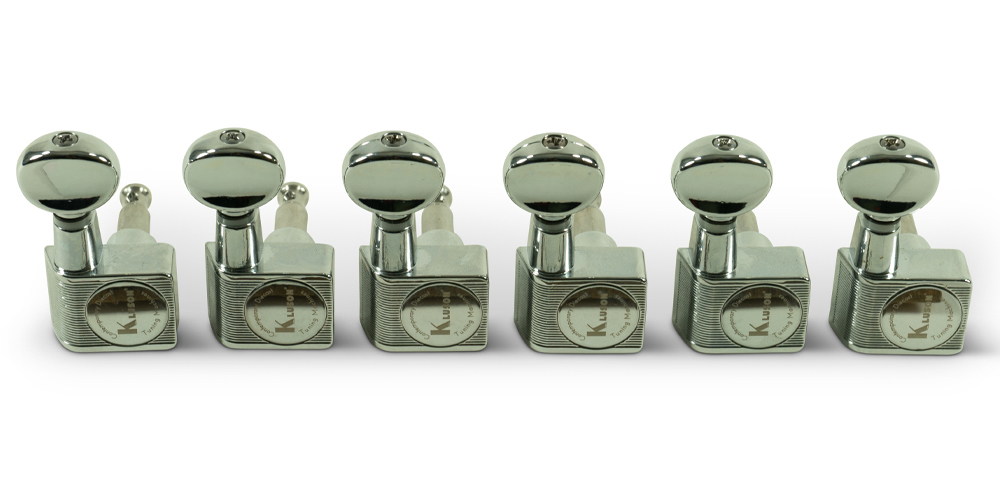

Kluson 6-In-Line Contemporary Diecast Series 2 Pin Tuning Machines with Staggered Posts - Chrome

Kluson® 6 in line contemporary diecast series 2 pin tuning machines with staggered posts.
- Peg Hole Requirement: 25/64 in. (10mm)
- Gear Ratio: 19:1
- Bushing Type: Hex Head screw-in bushing
- Footprint: 57/64 in (22.65mm) X 21/32 in. (16.8mm)
- Mounting Hole Size Requirement for pins: 3/32 in (2.41mm) bit
- Collar Diameter: 25/64 in. (9.95mm)
- Collar Depth: 3/8 in. (9.68mm)
- String Thru location: 29/32 in. from back of housing to hole ctr.
- Button Shaft length from Housing to button: 13/32 in. (10.3mm)
- Overall Button Shaft Length including Button: 15/16 in. (24mm)
Staggered Posts
- 19mm High E and B strings
- 20.5mm G and D strings
- 22mm A and Low E strings
Specifications
- Button Shaft Diameter: 3.7mm round sides / 2.9mm flat sides of the shaf- Peg Hole Requirement: 25/64 in. (10mm)
- Gear Ratio: 19:1
- Bushing Type: Hex Head screw-in bushing
- Footprint: 57/64 in (22.65mm) X 21/32 in. (16.8mm)
- Mounting Hole Size Requirement for pins: 3/32 in (2.41mm) bit
- Collar Diameter: 25/64 in. (9.95mm)
- Collar Depth: 3/8 in. (9.68mm)
- String Thru location: 29/32 in. from back of housing to hole ctr.
- Button Shaft length from Housing to button: 13/32 in. (10.3mm)
- Overall Button Shaft Length including Button: 15/16 in. (24mm)
Staggered Posts
- 19mm High E and B strings
- 20.5mm G and D strings
- 22mm A and Low E strings
