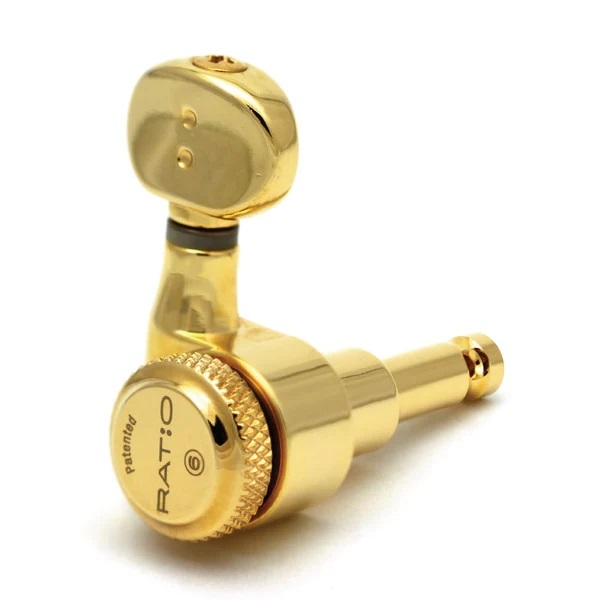

Graph Tech 6-In-Line Ratio Electric Locking Machine Heads, Classic - Gold
The PRL-8731 is a right-handed sets of Locking RATIO® Calibrated Machine Heads for electric guitars that use 6-in-line tuners. It has a two-pin casing that can be used as is, or with Graph Tech's Patented InvisoMatch Mounting Plates.
4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.
- Peg holes diameter required: 13/32" (10 mm)
- String post diameter: 0.236" (6 mm)
- String post length to string hole: 0.910" (23 mm)
- Weight per single machine head: 0.083 lbs (38 g)
- Weight per set of six: 0.496 lbs (225 g)
- String diameter up to 72 gauge
- Includes 6 machine heads, mounting screws and bushings
- Includes complimentary 4 sets of aluminum mounting plates
4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.
Specifications
- Gear ratio: unique for each string position - one turn-one tone- Peg holes diameter required: 13/32" (10 mm)
- String post diameter: 0.236" (6 mm)
- String post length to string hole: 0.910" (23 mm)
- Weight per single machine head: 0.083 lbs (38 g)
- Weight per set of six: 0.496 lbs (225 g)
- String diameter up to 72 gauge
- Includes 6 machine heads, mounting screws and bushings
- Includes complimentary 4 sets of aluminum mounting plates
