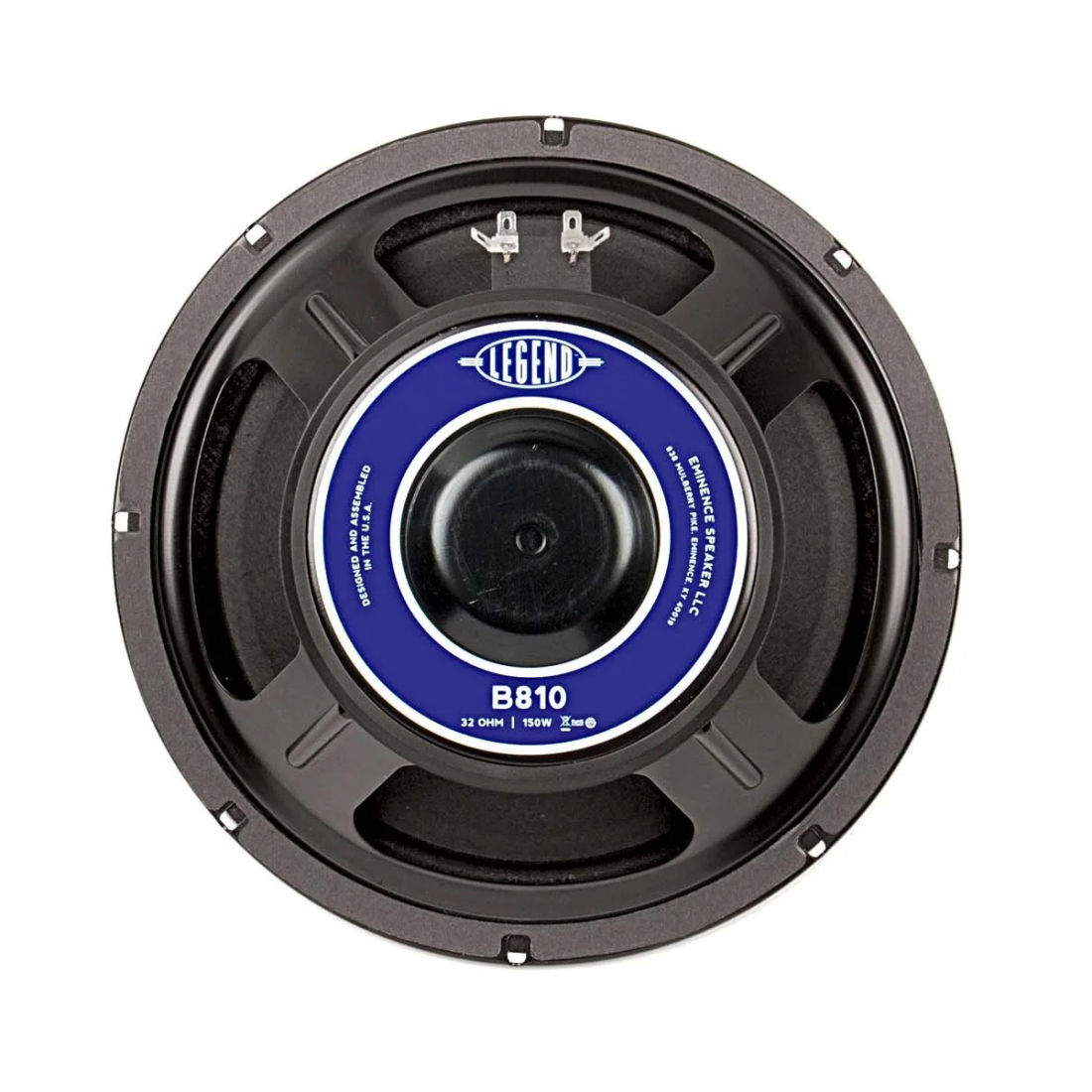

Eminence Legend B810 10-Inch 32 Ohm 150W Bass Guitar Speaker

A 32 ohm, 10 inch bass guitar speaker offering classic sound with modern features. A perfect replacement for your 8x10 cabinet.

Specifications

- Nominal Basket Diameter: 10", 254 mm
- Nominal Impedance*: 32 Ω
- Power Rating*
- Program Power: 300 W
- Watts: 150 W
- Resonance: 52 Hz
- Usable Frequency Range: 49 Hz - 5.1 kHz
- Sensitivity*: 92.7 dB
- Magnet Weight: 30 oz.
- Gap Height: 0.312", 7.9 mm
- Voice Coil Diameter: 2", 51 mm

THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 52 Hz
- DC Resistance (Re): 27.5 Ω
- Coil Inductance (Le): 2.72m H
- Mechanical Q (Qms): 13.91
- Electromagnetic Q (Qes): 0.68
- Total Q (Qts): 0.65
- Compliance Equivalent Volume (Vas): 66.4 liters / 2.34 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 165.2 cc
- Mechanical Compliance of Suspension (Cms): 0.39 mm/N
- BL Product (BL): 17.7 T-M
- Diaphragm Mass Inc. Airload (MMs): 24 grams
- Efficiency Bandwidth Product (EBP): 77
- Maximum Linear Excursion (Xmax): 4.7 mm
- Surface Area of Cone (Sd): 350.1 cm2
- Maximum Mechanical Limit (Xlim): 9.5 mm

MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 0.039 cu.ft. / 1.1 liters
- Overall Diameter: 10.11", 256.8 mm
- Baffle Hole Diameter: 9.13", 231.9 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.23", 5.8mm
- Mounting Holes B.C.D.: 9.6", 243.8mm
- Depth: 4.08", 103.6 mm
vNet Weight: 6.7 lbs, 3.04 kg

MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Kapton former
- Magnet Composition: Ferrite magnet
- Core Details: Bumped
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Cloth cone edge
- Dust Cap Composition: Zurette dust cap
