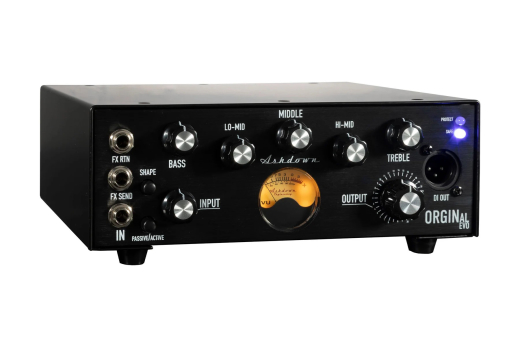

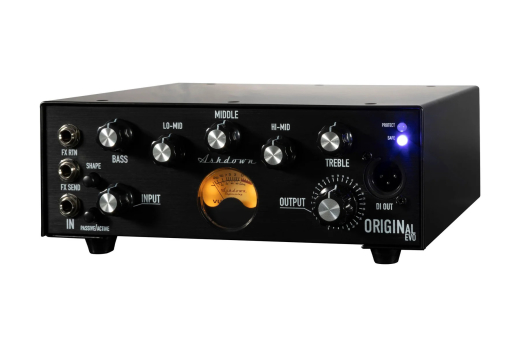

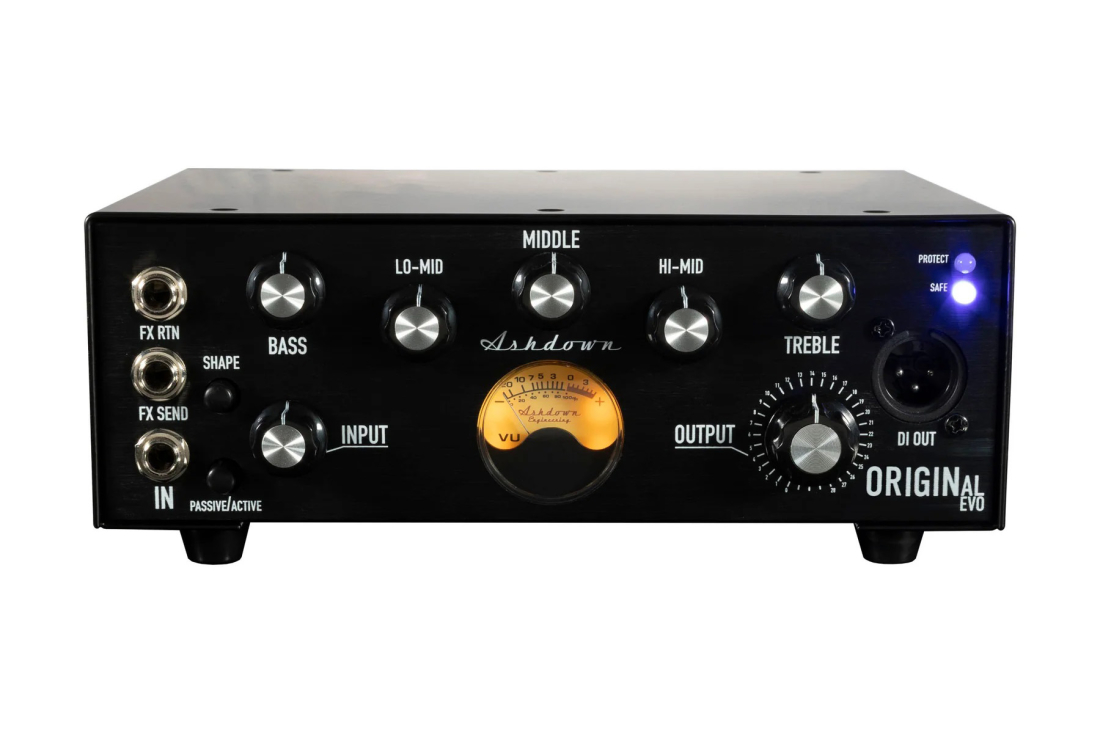

Ashdown Engineering OriginAL EVO 300W Mini Bass Head
Additional Photos:
With a power output of 300 Watts, the OriginAL EVO is primed to deliver robust and authoritative bass tones, ensuring your presence is felt on stage and in the studio. However, the standout feature of this compact amp head is its unwavering commitment to simplicity and tonal brilliance.
The 5-band EQ provides precise control over bass, middle, and treble frequencies, allowing you to sculpt your sound with unparalleled precision. Dedicated hi-mid and lo-mid knobs further enhance your ability to fine-tune your tone, ensuring that your bass playing sounds exactly as you imagine it.
In addition to its tonal versatility, the OriginAL EVO incorporates modern conveniences that make it a musician's best friend. The front-facing effects loop and XLR DI output streamline your sound management, providing you with the tools you need for a professional performance.

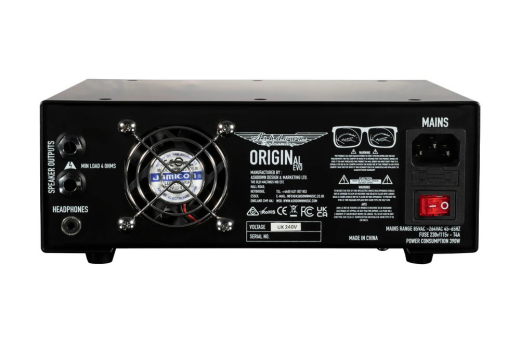

The rear panel features a headphone output for silent practice sessions and multiple speaker outputs, offering the flexibility to adapt your rig configuration to any musical situation.
The amplifier boasts auto-protect voltage for global touring musicians and features an adaptive temperature-controlled fan, making it equally suitable for studio and stage use.
Specifications
Power Output: 300 WattsPower Requirements: 115-230 Volts
Speaker Outputs: 2 x Jack outputs
Frequency Response: -3dB @ 22Hz and 25KHz
High Instrument Input: Impedance 3.9mΩ, input range 150mV: 20 p-p
Low Instrument Input: Impedance 1MΩ, input range 150mV: 10V p-p
Line Input: Impedance 10kΩ, input range 300mV: 40V p-p
DI Output: 600 Ohm balanced, Level -20dBu nominal
Impedance: Minimum 4 Ohms
Signal to noise- Better than 80dB (EQ flat)
EQ: Bass +/-15dB @ 100Hz, Lo Mid +/-15dB @ 220Hz, Middle +/-15dB @ 660Hz, Hi Mid +/-15dB @ 1.6kHz, Treble +/-15dB @ 7kHz shelving
Effects Send: Impedance 22kΩ, Level 0dBu nominal
Effects Return: Impedance 22kΩ, Input Level 0dBu Nominal
Distortion: Less than 0.5% THD
Dimensions (H x W x D): 89 x 220 x 209 (3.5 x 8.7 x 8.2 inch)
Weight: 1.8 kg (3.97 lbs)
