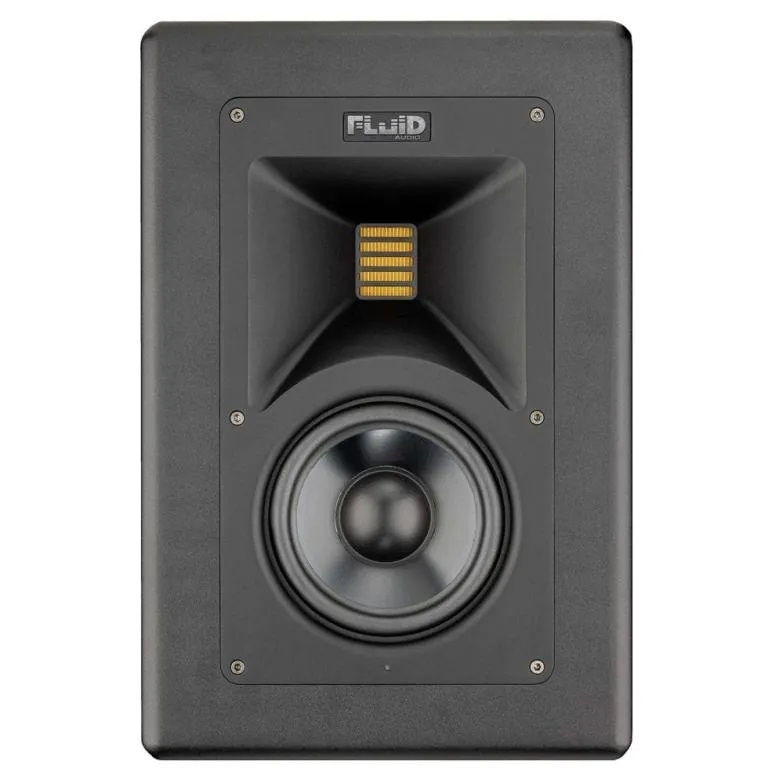

Fluid Audio Image 2 3-Way Reference Monitor (Single)
Additional Photos:
Your Price: $2,599.00 CDN
or from $153 CDN/mo
Image 2 Professional 3-Way Reference Studio Monitor is a dedicated nearfield/midfield workhorse. Using the latest DSP and Class-D amplification, Fluid Audio has pushed the limits to create stunning results. Delivering accurate imaging, extremely flat frequency response, and incredible bass extension with very low distortion in a closed cabinet.
With Sonarworks SoundID Reference integration, the room calibration correction will import directly into embedded platform of the monitor. Giving users the ability to create their own calibration profile for their monitor setups to remove unwanted coloration and experience the most accurate studio reference sound for any studio or home environment.
2 in 1 monitor: A full range mixing and mastering system that can switch into cubemix mode at the press of a footswitch. Cubemix mode enables engineers to dial-in low end and midrange levels for even playback on many "bass challenged" devices. It further helps with the adjustment of vocals, nailing the kickdrums and overall balance.
It's future-ready USB port expands the incredible functionality and provides the ability to upload and run exported room correction files natively at the monitor level, as well switching between profiles (supports loading up to 4 different SoundID Reference profiles) and cubemix mode.
The newly developed AMT tweeter (Air Motion Transformer) delivers precise, detailed response, expansive headroom, and low distortion, while the aluminum cone mid-range driver utilizes a shorting ring within its motor structure to substantially reduce harmonic distortion. Focusing the magnetic flux and concentrating it within the voice coil gap reduces modulation movement of the voice coil which makes the variation of system inductances more linear as input current varies. The end result is accuracy so clean; mixing takes on a whole new flow.
The opposed, dual 8" ultra-long-throw bass woofers offer a wide frequency response, extending down to 40Hz with +/- 2.2 dB deviation. From 80Hz to 20kHz, the response is even flatter at +/- 2.0 dB. This, coupled with their interlocked magnet design, results in improved dynamics and room response. Each bass driver is individually powered by the latest state-of-the-art 225W Class-D amplifier.
Driving the entire system is the newly developed Class-D Quad amplifier. Spending the most development time on this important element, the amplifier has extremely low self-noise, very low distortion, improved THD+N performance, improved IMD performance, and lower output impedance. The sealed enclosure design provides a natural, 6db/oct roll off for a more controlled low frequency response. This translates into less likelihood of unwanted interaction with the room, which means these monitors are less sensitive to positioning.
Mixing or mastering on the Image 2 will deliver professional results that are more accurate, and more effortlessly achieved than ever before. Making it one of the best speaker for music production.
ACCURATE AND TRANSPARENT
Using the Fluid Audio DCT (DSP Configuration Tool) you can push SoundID Reference calibration profiles to the built-in embedded DSP platform onboard the Image 2. This will compensate for room imperfections that acoustically treated and un-treated rooms sometimes have. Using SoundID Reference (v5.6 and newer) and a measuring microphone, you can measure your room, create calibration curves specifically for your environment and upload them directly onto the Image 2 with the DCT tool. The Image 2 supports up to 4 different profiles.
As an example: Flat target, Dolby Atmos Music, Custom Target as well as Translation Check. All of these can be loaded as different profiles and switched between using the DCT tool running on Windows or OSX. (USB has to be connected to both monitors to switch between the profiles). You can also enable and disable cubemix mode using the DCT tool (which will not affected by the calibration profiles).
COMPACT ALL IN ONE
Fluid Audio has ingeniously incorporated precision accuracy, controlled directivity. Impressively, this system maintains an extended bass response down to -3dB @38Hz (in chamber), ensuring a comprehensive audio experience. The Image 2 stands as a testament to uncompromising audio quality, catering to the discerning preferences of recording engineers and audio enthusiasts alike.
In essence, Fluid Audio's Image 2 offers a complete audio solution, blending pinpoint accuracy, directional control, and a diverse range of input options, all within a space-saving design. Its exceptional bass performance makes it a preferred choice for those seeking exceptional sound quality in a compact format.
DSP AND CONVERTERS
Fluid Audio Image 2 DSP board feature great performance in every aspect. Flagship discrete AD/DA converters. Together with well optimized signal circuitry improves the S/N ratio to 115 dBa.
The in-house developed digital signal processing system introduces a range of features that greatly enhance the studio experience. In addition to the analog XLR input, there are an AES digital in and SPDIF IN/out, enabling the possibility of daisy chaining two Image 2 speakers. Moreover, the digital connection bypasses interface conversions, effectively reducing unwanted artifacts.
- Frequency Response: + 2.2dB 40Hz-20kHz ; -3dB @ 38Hz
- Crossover: Bass / Mid : 154Hz, Mid / Treble : 2800 Hz
- Driver Dimensions: 2 x 8" Bass + 1 x 5" Midrange + ⌀ 1.1" x 1.7" AMT Tweeter, 2 x ⌀ 203 mm Bass + ⌀ 130 mm Midrange + ⌀ 28 x 43 mm AMT Tweeter, AMT Tweeter unfolded size 4.5" x 1.1" / 114 x 28 mm (total radiation area)
- Amplifier Power: 2 x 225 W Bass (Class D), 150 W Midrange (Class D), 75 W Treble (Class D)
- Signal Processing: AD Converter : 24 bit, Internal sample rate : 192kHz
- Audio Input Connectors: Analog XLR/TRS, Digital AES (supports AES/EBU) and SPDIF connection
- Acoustic adjustments rear panel: High Freq: -1, 0, +1 / Mid Freq: -1, 0, +1 / Low Freq: -2, -1, 0, +1, +2
- Rear panel other: Digital / Analog selector, Channel sellect digital input L/R, Auto standby On/Off, GND lift, Footpedal input for CubeMix mode
With Sonarworks SoundID Reference integration, the room calibration correction will import directly into embedded platform of the monitor. Giving users the ability to create their own calibration profile for their monitor setups to remove unwanted coloration and experience the most accurate studio reference sound for any studio or home environment.
2 in 1 monitor: A full range mixing and mastering system that can switch into cubemix mode at the press of a footswitch. Cubemix mode enables engineers to dial-in low end and midrange levels for even playback on many "bass challenged" devices. It further helps with the adjustment of vocals, nailing the kickdrums and overall balance.
It's future-ready USB port expands the incredible functionality and provides the ability to upload and run exported room correction files natively at the monitor level, as well switching between profiles (supports loading up to 4 different SoundID Reference profiles) and cubemix mode.
The newly developed AMT tweeter (Air Motion Transformer) delivers precise, detailed response, expansive headroom, and low distortion, while the aluminum cone mid-range driver utilizes a shorting ring within its motor structure to substantially reduce harmonic distortion. Focusing the magnetic flux and concentrating it within the voice coil gap reduces modulation movement of the voice coil which makes the variation of system inductances more linear as input current varies. The end result is accuracy so clean; mixing takes on a whole new flow.
The opposed, dual 8" ultra-long-throw bass woofers offer a wide frequency response, extending down to 40Hz with +/- 2.2 dB deviation. From 80Hz to 20kHz, the response is even flatter at +/- 2.0 dB. This, coupled with their interlocked magnet design, results in improved dynamics and room response. Each bass driver is individually powered by the latest state-of-the-art 225W Class-D amplifier.
Driving the entire system is the newly developed Class-D Quad amplifier. Spending the most development time on this important element, the amplifier has extremely low self-noise, very low distortion, improved THD+N performance, improved IMD performance, and lower output impedance. The sealed enclosure design provides a natural, 6db/oct roll off for a more controlled low frequency response. This translates into less likelihood of unwanted interaction with the room, which means these monitors are less sensitive to positioning.
Mixing or mastering on the Image 2 will deliver professional results that are more accurate, and more effortlessly achieved than ever before. Making it one of the best speaker for music production.
ACCURATE AND TRANSPARENT
Using the Fluid Audio DCT (DSP Configuration Tool) you can push SoundID Reference calibration profiles to the built-in embedded DSP platform onboard the Image 2. This will compensate for room imperfections that acoustically treated and un-treated rooms sometimes have. Using SoundID Reference (v5.6 and newer) and a measuring microphone, you can measure your room, create calibration curves specifically for your environment and upload them directly onto the Image 2 with the DCT tool. The Image 2 supports up to 4 different profiles.
As an example: Flat target, Dolby Atmos Music, Custom Target as well as Translation Check. All of these can be loaded as different profiles and switched between using the DCT tool running on Windows or OSX. (USB has to be connected to both monitors to switch between the profiles). You can also enable and disable cubemix mode using the DCT tool (which will not affected by the calibration profiles).
COMPACT ALL IN ONE
Fluid Audio has ingeniously incorporated precision accuracy, controlled directivity. Impressively, this system maintains an extended bass response down to -3dB @38Hz (in chamber), ensuring a comprehensive audio experience. The Image 2 stands as a testament to uncompromising audio quality, catering to the discerning preferences of recording engineers and audio enthusiasts alike.
In essence, Fluid Audio's Image 2 offers a complete audio solution, blending pinpoint accuracy, directional control, and a diverse range of input options, all within a space-saving design. Its exceptional bass performance makes it a preferred choice for those seeking exceptional sound quality in a compact format.
DSP AND CONVERTERS
Fluid Audio Image 2 DSP board feature great performance in every aspect. Flagship discrete AD/DA converters. Together with well optimized signal circuitry improves the S/N ratio to 115 dBa.
The in-house developed digital signal processing system introduces a range of features that greatly enhance the studio experience. In addition to the analog XLR input, there are an AES digital in and SPDIF IN/out, enabling the possibility of daisy chaining two Image 2 speakers. Moreover, the digital connection bypasses interface conversions, effectively reducing unwanted artifacts.
Specifications
- Max SPL: 116 dB (Dual Monitors) 113dB (Single)- Frequency Response: + 2.2dB 40Hz-20kHz ; -3dB @ 38Hz
- Crossover: Bass / Mid : 154Hz, Mid / Treble : 2800 Hz
- Driver Dimensions: 2 x 8" Bass + 1 x 5" Midrange + ⌀ 1.1" x 1.7" AMT Tweeter, 2 x ⌀ 203 mm Bass + ⌀ 130 mm Midrange + ⌀ 28 x 43 mm AMT Tweeter, AMT Tweeter unfolded size 4.5" x 1.1" / 114 x 28 mm (total radiation area)
- Amplifier Power: 2 x 225 W Bass (Class D), 150 W Midrange (Class D), 75 W Treble (Class D)
- Signal Processing: AD Converter : 24 bit, Internal sample rate : 192kHz
- Audio Input Connectors: Analog XLR/TRS, Digital AES (supports AES/EBU) and SPDIF connection
- Acoustic adjustments rear panel: High Freq: -1, 0, +1 / Mid Freq: -1, 0, +1 / Low Freq: -2, -1, 0, +1, +2
- Rear panel other: Digital / Analog selector, Channel sellect digital input L/R, Auto standby On/Off, GND lift, Footpedal input for CubeMix mode
