PreSonus CDL10P Full Range 2-Way Active Hybrid Speaker
Additional Photos:

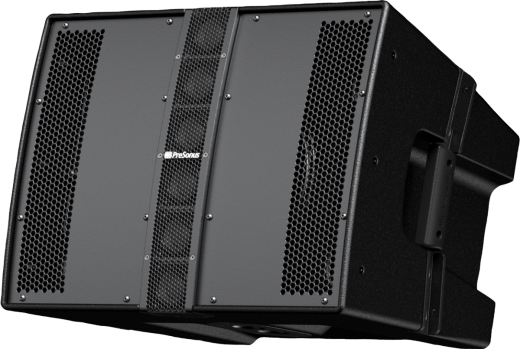

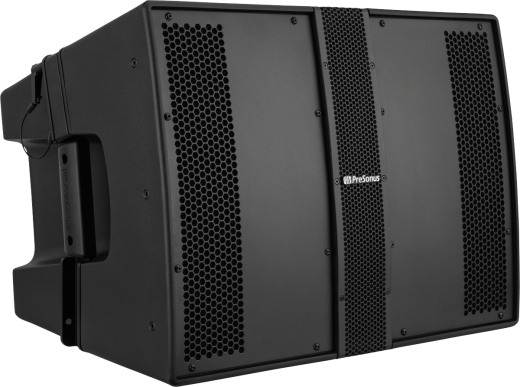

Like the CDL12P, CDL10P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.

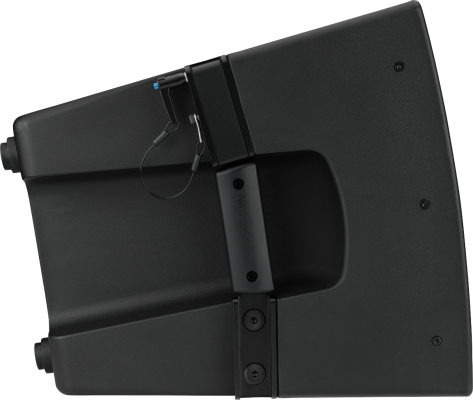

The CDL10P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL10P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL10P's integrated 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.
Features
• Continuous-directivity constant curve array with six 2-inch cone drivers disperses sound 120° horizontally• 15° vertical directivity can be extended from 30° up to 90° with additional arrayable CDL10P's
• 10-inch, long-throw LF transducer with 2.5-inch voice coil
• Low 420 Hz crossover point minimizes comb filtering and enhances line array intelligibility
• 500 x 500 watts Class D power for high SPLs and lightning-fast transient response
• Onboard DSP: 90 High-pass filter, Array Mode (1-6 boxes), Sub Mode (Off, CDL18s, ULT18, or AIR18s)

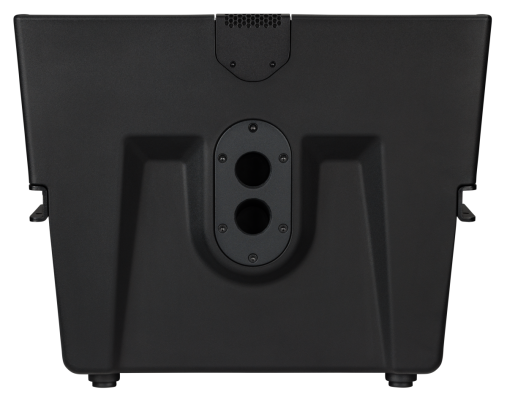

35 mm pole socket with 7.5° downward tilt for use with up to two CDL10P on a tripod or atop PreSonus® CDL Sub18, CDL18s or ULT18 subwoofer
• Integrated flyware to create an array of up to six CDL10P's
• Signal, -3 dB, Limiter Protection, and Clip Monitoring
• Rugged, lightweight plastic enclosure and tour-grade, 1.2 mm steel grille - great for touring bands and mobile DJs
Specifications

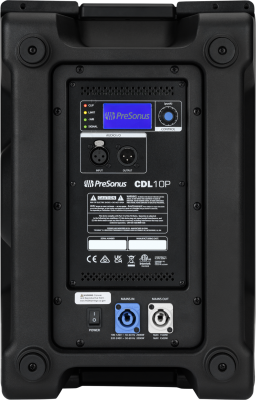

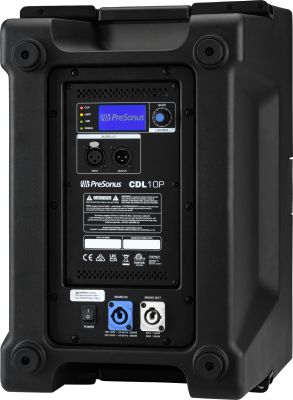

ElectronicsInputs: One - 1 XLR
Line Out: One - Direct Line Out (XLR)
Channels: One
Voltage: 100-120V
Power Consumption: 4.2A
Performance
Peak SPL: 130 dB
Total Power Output: 2000W Peak, 1000W Program (500W RMS)
Speakers
Total Impedance: NA
Crossover Frequency: 420 Hz
Speaker Type: Powered 2-Way, Full-Range
Coverage Pattern: 120 degree (H) x 15 degree (V)
Hardware
Cabinet Material: Molded Plastic
Handle: 2 Side
Audio Controls: Preset Select for number of arrayed boxes HPF On/Off PreSonus Subwoofer Configuration
Cooling: Free Air Convection
Grille Material: Powder-Coated Steel
Pole SocketDual Position (0˚, 7.5˚)
