JDK Audio R22 Dual Channel Compressor

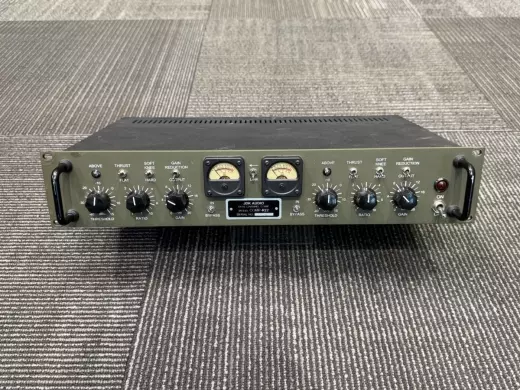

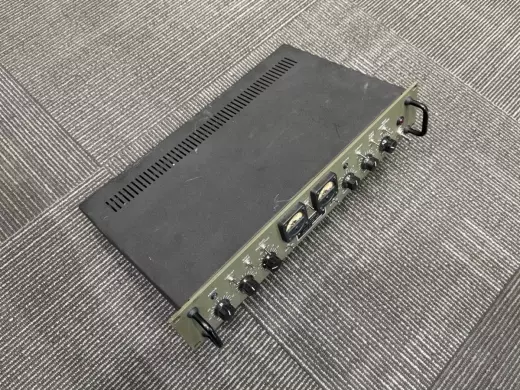

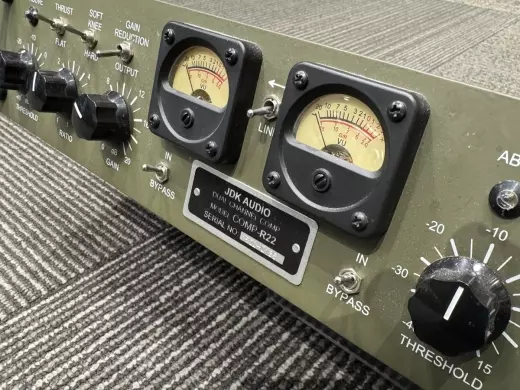

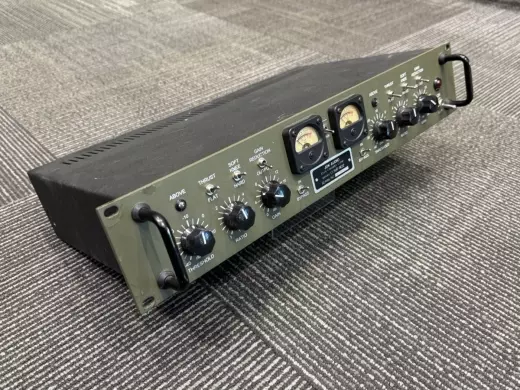

Additional Photos:
Features
• Patented THRUST circuit• Variable Threshold, Ratio, and Make-up Gain controls
• Switchable metering of output level and gain reduction
• Above threshold LED indication
• Switchable Hard or Soft Knee compression
• Linkable for stereo operation with true RMS power summing
• Fully balanced XLR and 1/4" inputs and outputs
Specifications
Inputs:Balanced XLR and 1/4" jack (1/4" normalled priority)Outputs: Balanced XLR and 1/4" parallel jacks
Power Consumption, Quiescent: 7.81 Watts
Input Impedance: 15KΩ Balanced
Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz
THD+N @ 1 kHz, +4 dBu: < 0.005%
Maximum Level: +19 dBu
Signal-to-Noise Ratio: -88 dBu (comp in); -92 dBu (bypass); -106 dB
Crosstalk: < 84 dB @ 20 kHz
Stereo Link: True RMS Power Summing
Meter: -20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable
Compressor Controls
Threshold Range: -40 dBu to +15 dBu
Ratio Range: 1:1 to 10:1
Makeup Gain Range: 0 dB to +20 dB
Hard or Soft Knee switchable
Flat or Thrust side chain filter switchable
Attack Time: Program and Control Adaptive, 10mSec to 40mSec
Release Time: Program and Control Adaptive, 30mSec to 400mSec
Current: 93 mA, 10.8 VoltAmps
Dimensions
Fits: 2U EIA 19" Rack
Size: 19" x 3.5" x 12" Deep
Weight: 10.23 lbs
