Midas DN4816-I Bus-Powered StageConnect Interface

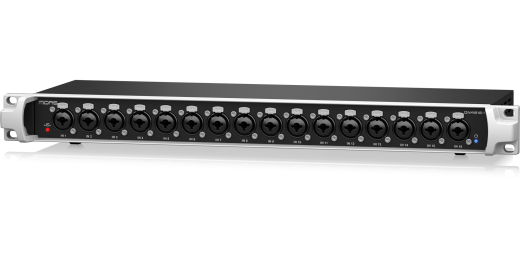

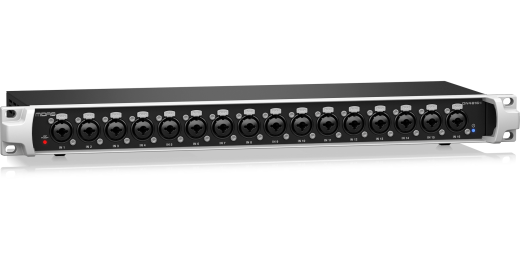

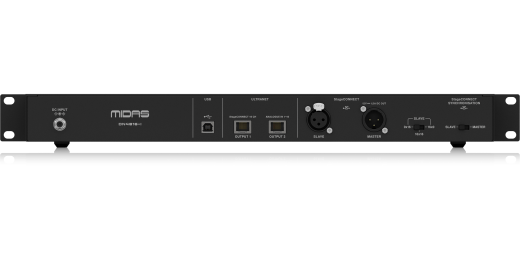

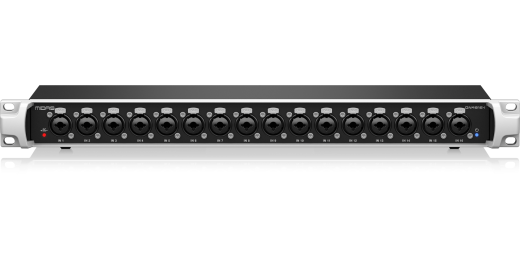

Additional Photos:
The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.
The Midas DN48XX Series is one of the first available I/O-Interfaces based on the StageConnect-Standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.05 ms of latency.
The DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. StageConnect was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind the devices can be used with all StageConnect devices like HUB4. The StageConnect ecosystem opens a wide field of audio devices. May it be several I/O devices spread over the stage or equipment in the siderack - the use cases for the DN48XX Series StageConnect Interfaces are virtually endless.
Specifications
ProcessingA/D conversion: 24-Bit, 48/44.1 kHz, 114 dB
StageConnect bus capacity: 32 ch, 24-Bit PCM audio
I/O latency: 0.05 ms
Connectors
Analog Inputs: 16 x XLR female jacks, balanced
Impedance: 20 kΩ unbalanced / 40 kΩ balanced
Max. input level: +21 dBu
Ultranet: 2 x RJ45
Shielded CAT5e cable max. length: 75 m
StageConnect: 1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable: max. 40 m
USB: Type B
System
Frequency response: 20 Hz - 20 kHz +/-0.2 dB
Dynamic range: 106 dB
Cross talk rejection @ 1 kHz, adjacent channel: 106 dB
Noise (20 Hz - 20 kHz bandwidth): -106 dBFS
Distortion: 0.004% / 1 kHz / 0 dBu in
Power
Power supply: 12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W)
Power consumption: 8.5 W
