Fluid Audio SRI-2 USB Audio Interface with Monitor Control
Additional Photos:
High-Resolution Desktop Music Production
With outstanding dynamic range and low noise, it provides pristine 24-bit/192 kHz audio quality and clarity. It's premium mic preamps and transparent conversion translate into recordings with depth and richness. With both Combo inputs mounted on the front panel, you know exactly what is plugged in no need to fumble with inputs on the rear panel. The convenient angled design allows you to easily reach all knobs and buttons, and LED indicators let you know exactly what positon they're in - even in dimly lit studios.
A Portable Studio Complete with Steinberg Cubase LE DAW Software
Compact and USB powered means portable. The USB 2.0 connection provides ample power to drive headphones for tracking or mixing, while at home or on the road. An external power input (Micro USB) must be used when connecting to your iPad, using the included Cubasis software. Whether you are recording an instrument, such as guitar, or using a microphone requiring 48V phantom power, all buttons and knobs are easy to access. Coupled with the included Cubase LE software, is a powerful and intuitive music production system. And though it comes with Cubase LE, it is compatible will all major DAWs, including Avid Pro Tools, Presonus Studio One, Ableton Live, Apple Logic Pro, FL Studio, REAPER, Bitwig Studio and more.
Solid Construction
The robust aluminum housing is not only attractive, but sturdy. It is at home in the studio as well as on the road. The volume knob is made of solid aluminum, which gives it the weight and the feel of vintage studio gear.

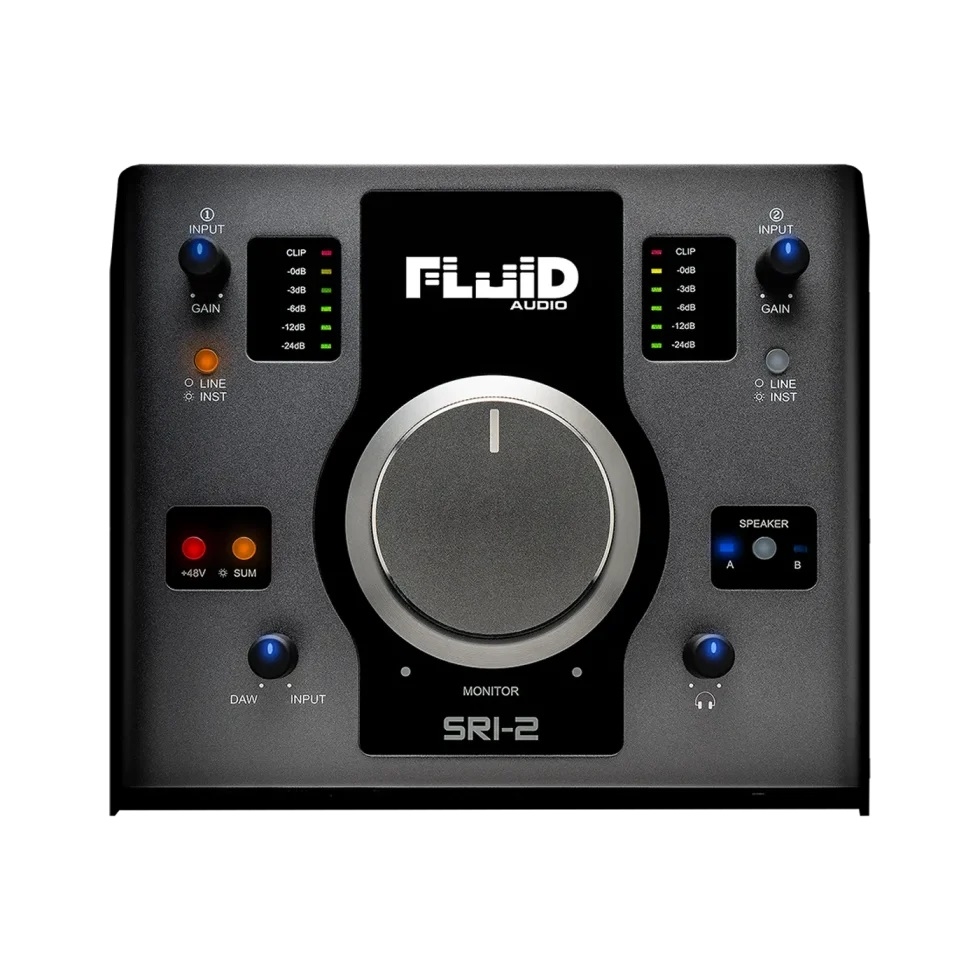

Controls Overview
Above all else, it is a premium 22 USB 2.0 audio interface with outstanding 24-bit/192 kHz audio conversion. The SRI-2 connects to the outputs and inputs of other audio gear, and performs analog-to-digital (A/D) and digital-to-analog (D/A) audio conversions on the gear's signals. The digital audio signals are routed into and out of the host computer via the high speed USB 2.0 protocol, which is carried on the single USB cable (included).
Speaker AB Switching Button
The SRI-2 actually has 4 outputs (2 sets for 2 pair of speakers). (Most interfaces have only one pair of outputs). This allows you to switch the routing of your audio to either pair. This helps you evaluate your mix as you can compare on speakers of different size, configuration, etc.
SUM Button
In it's normal state input 1 will be routed to the left monitor output, and input 2 to the right monitor output. When the SUM button is engaged, however, it will combine both input signals to the main channel outputs, centering the input channels and creating a mono out to your monitors.
This is handy for a live performance setup where, for instance, a microphone is in input 1 and guitar is in input 2
Features
• 24-bit/192 kHz 2 x 2 USB 2.0 audio interface• 2 Class-A mic preamps supporting +48 V phantom power
• 2 XLR/TRS inputs for Line/Mic/Instrument recording

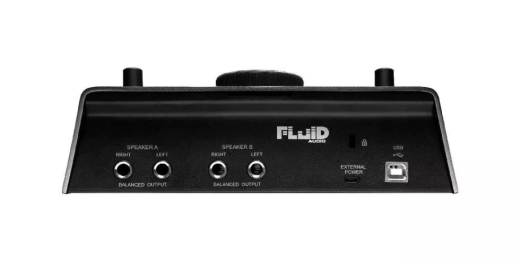

• 4 TRS outputs, for AB switching between two pair of monitors
• 1 High-power headphone output with independent level control
• USB-powered for mobile recording using either PC or Mac
• USB micro external power when used with iPad
• ASIO drivers for Windows
• Includes Cubase LE DAW software download version for Mac and PC
• Includes Cubasis LE music for iOS
Specifications
MIC INPUT 1/2 (Balanced)- Maximum Input Level: 7 dBu
- Input Impedance: 100 Ohm
- Available Gain: 54dB
- Frequency Response: +0.1 dB, 20 Hz to 20 kHz
- Dynamic Range: 104 dB, A-weighted
- THD+N: 0.0016%, 1 kHz, -1 dBFS, 20 Hz/20 kHz BPF
- Noise EIN: ‐120dBu (A‐Weighted)
- Polarity: Pin 1: Ground, Pin 2: Hot (+), Pin 3: Cold (‐)
HI-Z INPUT 1(Balanced)
- Maximum Input Level: +4 dBu
- Input Impedance: 1M Ohm
- Frequency Response: +0.1 dB, 20 Hz to 20 kHz
- GAIN Range: ‐+12 dB 52 dB
- THD+N: 0.0031%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
- Dynamic Range: 104 dB, A‐weighted
LINE INPUT 1/2 (Balanced)
- Maximum Input Level: +25 dBu
- Frequency Response: +0.1 dB, 20 Hz to 20 kHz
- Input Impedance: 20k Ohm
- GAIN Selection: -11dB +29 dB
- THD+N: 0.005%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
- Dynamic Range: 104 dB, A‐weighted
MAIN OUTPUT L/R (Balanced)
- Maximum Output Level: +6 dBFS
- Output Impedance: 75 Ohm
- Frequency response: +0.1/‐0.1 dB, 20 Hz to 20 kHz
- Dynamic range: 102 dB, A‐weighted
- THD+N: 0.0014%, 1 kHz, 0 dBFS, 20 Hz/20 kHz BPF
Headphones Output
- Maximum Output Level: 75 mW +75 mW, @ 32 Ohm
- Dynamic range: 100 dB, A‐weighted
- THD+N: 0.006%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
- Impedance: 10 Ohm
- Maximum Output Level dBu: +12dBu
USB Connection
- USB 2.0,
- 24‐bit : 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz
Package Contents
- SRI-2 Audio Interface
- USB Cable
- SRI-2 User Guide
- Cubase LE/Cubasis Code Card
- Cubase LE/Cubasis Quick Start Guide
