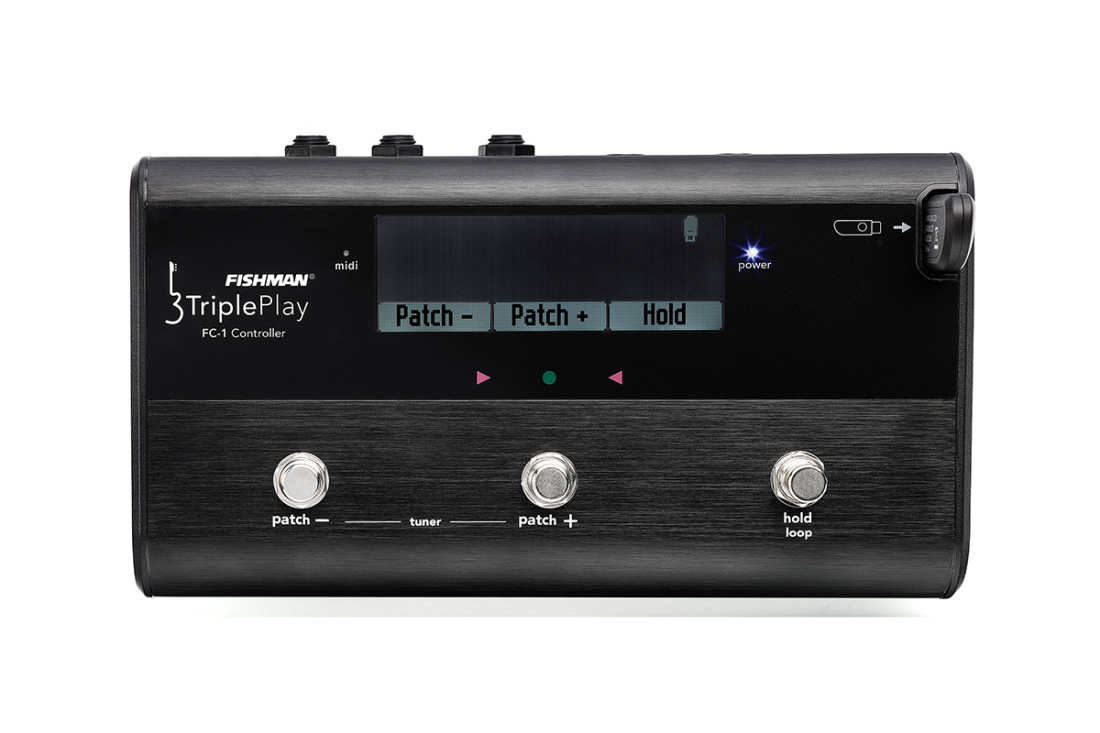

Fishman TriplePlay FC-1 Controller

Control any virtual instrument with you guitar

The TriplePlay FC-1 Foot Controller from Fishman is a three-button footswitch which offers versatile control of the TriplePlay computer application and external sound modules for guitarists to use in live concerts and studio-based production. It is plug-and-play USB class compliant for hassle-free setup.

Use the FC-1 to control your TriplePlay Windows or Mac application. Change patches, connect an expression pedal, sustain, loop and hold with the TriplePlay factory and user patches, or reprogram the buttons to send custom MIDI information.

Control External Sound Modules or Keyboards
With the FC-1, you can now use TriplePlay to plug directly into an external MIDI sound module or keyboard, without a computer attached! Simply remove the USB receiver from your Mac or PC and insert it into the TriplePlay FC-1 Controller's USB host port. The incoming MIDI data is then passed wirelessly from the guitar to the conventional 5-Pin Din output for use with any MIDI-equipped hardware.

Programmable foot switches and expression pedal input
Three programmable switches default to patch selection, hold, tuner access, and TriplePlay sensitivity settings, with the added ability to program each to send a separate MIDI CC as a momentary or latched controller.

Programmable Hardware Presets
A large graphic LCD displays the currently loaded hardware synth patch. All the hardware patches are stored on the controller and can be programmed with the TriplePlay software so you can load the exact sound you need immediately!

TriplePlay Software Suite
The TriplePlay software suite allows you to configure your TriplePlay device and access the most advanced features. All software is included with purchase of TriplePlay Wireless or TriplePlay Express.
- TriplePlay Utility
- TriplePlay Host
- Synthmaster One

Features

• Large, easy-to-read graphic LCD, displays Patch name and number
• Built-in tuner
• TriplePlay battery level indication
• Plug & play USB class compliant (no driver required)
• 5-Pin Din MIDI In/Out
• Relay-controlled 1/4 inch Guitar Audio In/Out
• Mac/Win utility for MIDI CC foot switch assignment
• 3 programmable foot switches for patch up and down plus hold (sustain)
• 9-Volt AC adapter and USB cable included

Specifications

MIDI: Input, Output
AUDIO: 1/4
CONTROLS: (3) Footswitches (programable) (1) Expression pedal input (programable)
USB: Host for TriplePlay USB Receiver (not included) Micro-USB for computer data
DISPLAY: 192 mm x 64 mm backlit graphic LCD
MATERIAL: Durable composite and metal
WEIGHT: 1.35 lbs (0.61 kg)
DIMENSIONS: 2.4
POWER: 9-Volt power adapter and USB cable included
