Xvive Audio U8 Acoustic Guitar Wireless System
Additional Photos:

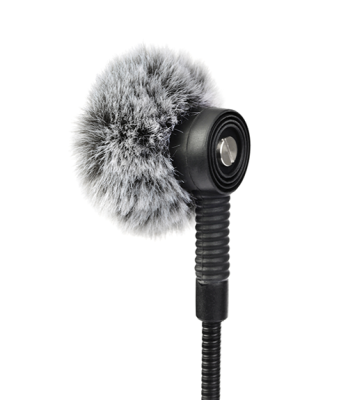

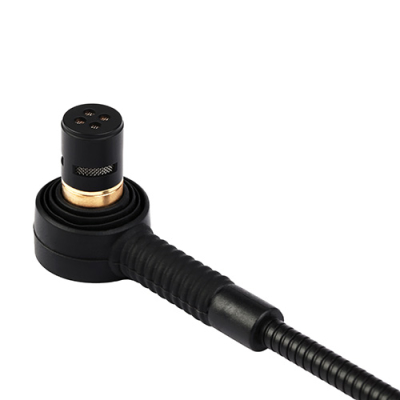

TOP SHELF MIC
There was no compromise made on the design of the system's ultra-high-quality supercardioid gooseneck microphone, which is perfectly voiced for acoustic and classical guitars. With a max SPL of 142 dB and a sensitivity of -45 dB, you'll hear the natural sound of your instrument wherever you go.
STRUM AND STROLL
XVIVE always delivers reliable performance and top-level fidelity. The U8 system uses the 2.4 GHz band, has 6 channels to ensure you always have options if you encounter interference, and the wireless range is up to 90 feet!

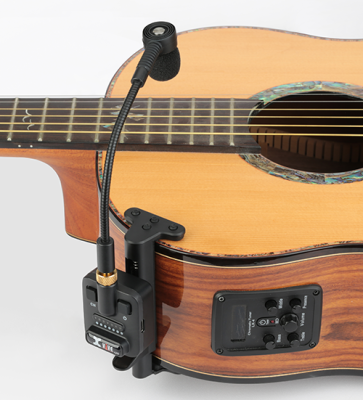

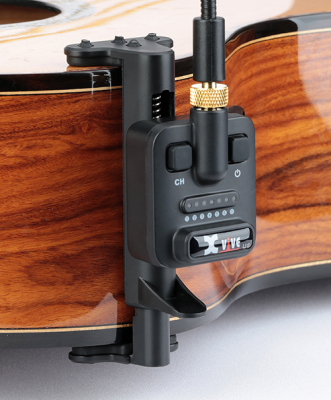

CLIP IT ON
The U8 set comes with a strong and sturdy clip that attaches the transmitter and gooseneck microphone to the body of your acoustic or classical guitar. It will fit on instrument bodies that are between 74 mm and 105 mm thick (2.9" - 4.13").
CHARGE IT
Charge the transmitter and receiver at the same time using the dual USB-C cable and any 5V 2A USB power supply. Charging for two and a half hours gets you 5 hours of play time; 1.25 hours gets you 2 hours of play time, and 30 min of charging gets you 1 hour.
Features
• 2.4 GHz wireless system with a 142 dB SPL supercardioid microphone• High-resolution 24-bit/48 kHz audio, less than 5 ms latency
• 20 Hz - 20 kHz frequency response
• Dynamic range of 108 dB, signal-to-noise ratio of 108 dB
• Up to 5 hours of battery life
• 6 wireless channels
• Wireless range: up to 90 feet (27 m)

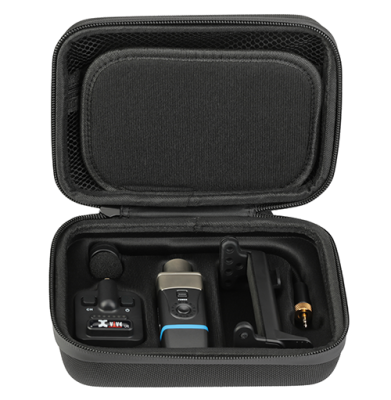

• Includes: Carry Case, Microphone, Transmitter, Receiver, Dual USB-C Charging Cable, Clip, Windscreen, Windshield and Manual
Specifications
Microphone SpecificationsTYPE: Supercardioid
DIMENSIONS: 20 mm x 28 mm x 190 mm
WEIGHT: 35 g
OUTPUT: 1/8" balanced male TRS (Tip = +3.3V, Ring = -3.3V, Sleeve = ground)
SENSITIVITY: -45 dB
MAX. SPL: 142 dB
Wireless System Specifications
TUNING BANDWIDTH: 2400 2483.5 MHz
WORKING RANGE: 90 ft (indoors)
AUDIO FREQUENCY RESPONSE: 20 Hz 20 kHz (-3dB)
DYNAMIC RANGE: 108 dB
SIGNAL-TO-NOISE RATIO: 108 dB
RF SENSITIVITY: -88 dBm
TOTAL HARMONIC DISTORTION: 0.2%
RF OUTPUT POWER: 10 mW E.I.R.P. max
OPERATING TEMPERATURE RANGE: 0°C to 45°C
CHANNEL COUNT: 6
CHARGING VOLTAGE / CURRENT: 5V / 2A
BIT DEPTH / SAMPLE RATE: 24-bit / 48 kHz
LATENCY: less than 5 ms
Transmitter Specifications
DIMENSIONS: 40 mm x 29 mm x 50 mm
WEIGHT: 35 g
AUDIO INPUT CONNECTOR: 1/8" balanced TRS female
MAXIMUM INPUT LEVEL: 3.7 Vp-p
PHANTOM POWER: +/- 3.3V
USB TYPE: USB Type-C
ANTENNA IMPEDANCE: 50 Ω
ANTENNA TYPE: 1/4 wave sleeve dipole, non-removable
NUMBER OF ANTENNAS: 1
Receiver Specifications
DIMENSIONS: 31 mm x 29 mm x 98 mm
WEIGHT: 92 g
OUTPUT IMPEDANCE: 470 Ω (1 kHz)
AUDIO OUTPUT CONNECTOR: XLR balanced male
MAXIUMUM OUTPUT LEVEL: 3.6 Vp-p
USB TYPE: USB Type-C
ANTENNA IMPEDANCE: 50 Ω
ANTENNA TYPE: 1/4 wave sleeve dipole, non-removable
NUMBER OF ANTENNAS: 2
