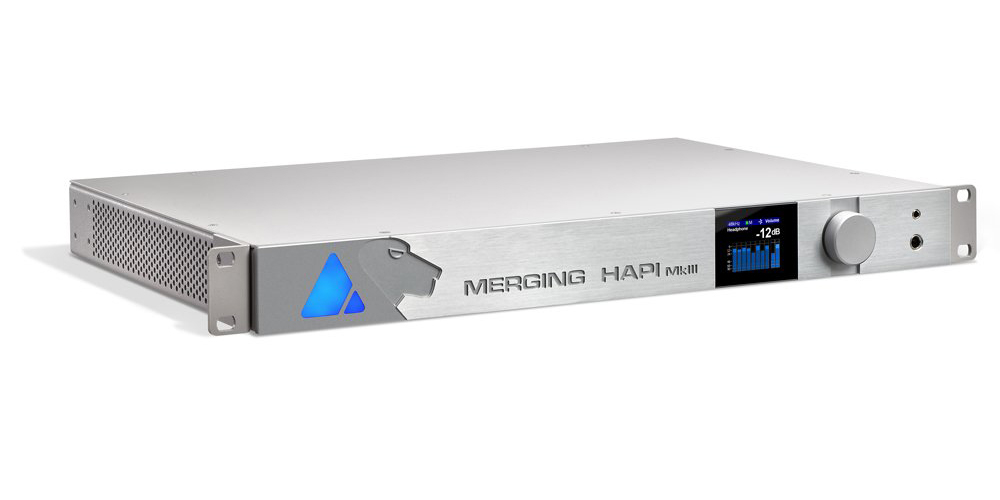

Merging Hapi Mk III Network Audio Converter
Additional Photos:
Compared to its predecessors, Hapi Mk III adds extended AoIP capabilities. In addition to full RAVENNA/AES67 support, Hapi Mk III is Dante Ready™.
Hapi Mk III is the foundation of the Merging ecosystem. Its unchanged small form factor of only 1U makes it the ideal rack unit for any application. Two slots for Merging I/O expansion cards allow you to configure Hapi Mk III to your applications. Merging A/D cards feature a unique dual gain topology, with up to 78 dB gain and an impressive dynamic range of up to 136 dB A (mic) / 139 dB A (line). Additionally, premium versions offer even higher specifications and support ultra-high resolution formats DXD, 384 kHz PCM and DSD 256 bitstream. D/A cards feature selectable roll-off filters. D/A trims level (in 0.1 dB increments) and signal polarity can be adjusted for each channel individually to ensure mastering grade precision.
Hapi Mk III connects to...everything!
Next to its network capabilities, Merging Hapi Mk III offers a wide range of connectivity options, which include ADAT, S/PDIF, AES/EBU, Wordclock. Additionally, 2 slots for Merging V3 expansion cards allow up to 16 channels of analog I/O (mic/line) or 128 channels of MADI + SFP. A 64-channel PT64 V3 card for Pro Tools integration will follow in 2025. With the ability to handle an impressive number of 64 streams, 144 input and 146 output channels, the internal router is truly a powerful tool. Therefore, Hapi Mk III is an excellent solution for increasing the channel count of RAVENNA/AES67 interfaces, such as Merging Anubis or Neumann MT 48. Of course, Hapi MK III can also be combined with Neumann's line of AES67 studio monitors to create stereo and immersive 3D audio setups. With the new Dante option, Hapi Mk III can also be used as the centerpiece or an I/O extension in Dante AoIP environments.For headphone monitoring, Hapi Mk III features an ultra-low impedance, mastering grade headphone output, conveniently positioned on the front of the unit in both 1/4" and 1/8" TRS format.
The sync port on the back of the unit allows synchronization via LTC, MIDI and Video Reference.
Dante®
As a new feature of the Mk III model, Hapi now offers optional support for the Dante standard by Audinate, which is highly popular in the live and installation sector. This option adds compatibility with more than 4000 devices from over 600 manufacturers. Hapi Mk III comes Dante Ready™, so users who require Dante can purchase a license from Audinate. Two license models are available, 16x16 I/O and 64x64 I/O. This ensures there are no additional costs for users who do not need Dante.Features
• Up to 152 input and 154 output channels, 64 streams• ADAT, S/PDIF, AES/EBU, Wordclock
• 2 slots for optional I/O expansion
• Near-zero latency from input to output (< 1ms)
• RAVENNA/AES67 with NMOS, ST2110 and ST2022-7 support
• Dante Ready™, optional license available from Audinate
• Standalone operation, remote control of preamps within Pro Tools, unlimited presets
• Swiss design, made to extremely tight tolerances.
Expansion Card Compatibility
Hapi Mk III requires new V3 expansion cards, which will be launched alongside Hapi Mk III.- As is typical for Merging, all V3 Expansion Cards with analog inputs and/or outputs are available in two versions, Standard and Premium.
- Older generation cards cannot be used with Hapi Mk III.
- V3 cards can be used in Hapi Mk II but not in first generation Hapi nor Merging Horus devices. The only exception being the MADI128V3 card, which is compatible with Hapi Mk III only but not with any older generation Merging devices.
