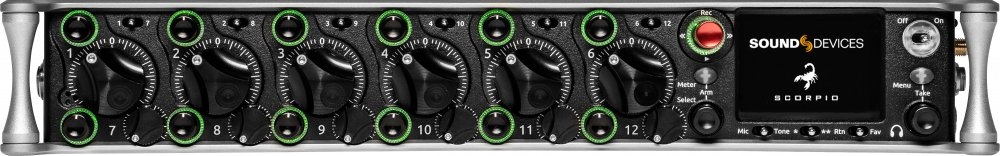

Sound Devices Scorpio 32-Channel Portable Mixer/Recorder
Additional Photos:
Product Videos :
YouTube Video
Your Price: $16,425.00 CDN
or from $760 CDN/mo
A fully-customizable routing matrix enables sound professionals to send any input to any channel, bus, or output. Up to 12 buses may be individually mixed. Due to its compact form factor, the Scorpio is equally at home over-the-shoulder or in a mobile rig.
Scorpio incorporates Sound Devices' most cutting-edge technology. An ultra-powerful engine comprised of three FPGA circuits and six ARM processors deliver the horsepower needed for the most complex tasks. FPGA-based audio processing with 64-bit data paths ensures the highest sound quality and reliability. The Scorpio also features Sound Devices' latest and best in analog microphone preamplifier design. These preamps have the smoothest sound and lowest noise of any preamp in the company's 20-year history and include built-in analog limiters, high pass filters, delay, 3-band EQ and phantom power.
Like Sound Devices' popular 788T, the Scorpio has an internal SSD and adds the ability to simultaneously record to two SD cards for redundancy. For additional flexibility, sound professionals can send different files to their choice of media. The companion SD-Remote Android application allows for control of the Scorpio via a large display.
Great attention to detail has been paid to every aspect of the Scorpio's design. Most common menus are accessible with only one or two button presses, and many menu shortcuts can be achieved with only one hand. Scorpio features a built-in dual L-Mount battery charger and may be powered with L-Mount batteries or via the TA4 DC inputs using smart batteries, NP-1 batteries, or in-line power supplies. The ultra-accurate, fully-featured timecode generator contains its own battery to hold timecode for up to four hours after power off.
- 10 Hz to 80 kHz + 0.5 dB (192 kHz sample rate, re 1 kHz)
THD + Noise
- 0.005% max (1 kHz, 22 Hz-22 kHz BW, trim @20, fader @ 0, -10 dBu in)
Equivalent Input Noise
- -131 dBV (-129 dBu) max (A-weighting, 76 dB gain, 150 ohm source impedance)
Processing Engine
- Highly extensible, full FPGA-based audio processing, 3 FPGAs
- Six-way ARM multiprocessor system
- 64-bit audio processing precision
Audio Over Ethernet
- Dante, 32 channels in, 32 channels out
- AES67 compatible
- 1 Gb/s Ethernet, 2 ports, transformer-balanced
Inputs

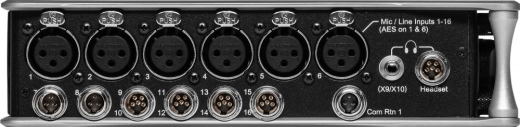

- Mic/Line inputs: 16 total, all fully featured; 6 on full-size XLR, 2 on TA3, 8 on TA5
- Mic-level inputs: (XLR, TA3, TA5): Class-A, discrete differential long-tail pair, 4k ohm input impedance
- Line-level inputs: (XLR, TA3, TA5): active-balanced, 4k ohm input impedance
- AES3 or AES42 available on XLR inputs 1 and 6
- AES42: +10 V, 250 mA available, type-1, auto-ASRC
- Rtn A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance
- Com Rtn 1,2 (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance
- External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom
Maximum Input Level
- Mic: +8 dBu (2.0 Vrms)
- Line: +28 dBu (19.5 Vrms)
- Rtn A, B, C: +18 dBu (6.2 Vrms)
- Com Rtn 1, 2: +24 dBu (12.3 Vrms)
- External Slate Mic: +12 dBu (3.2 Vrms)
High-Pass Filters
- Adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital
Limiters
- Limiters available at all channels, buses, headphones, for all sample rates
- Analog first stage, all subsequent stages digital
- Attack time: 1 ms
- Release time: adjustable, 50 ms to 1000 ms
- Threshold: adjustable, -2 dBFS to -12 dBFS
- Selectable knee: hard or soft
- Selectable ratio: inf:1, 20:1
Delay
- Channel Adjustable 0-50 ms
- Output Adjustable 0-500 ms
Maximum Gain
- Trim stage (mic input): 76 dB
- Trim stage (line input): 36 dB
- Fader stage: 16 dB
- Bus stage: 16 dB
- Headphone stage: 20 dB
- Mic-to-Line: 108 dB
- Mic-to-Headphone: 112 dB

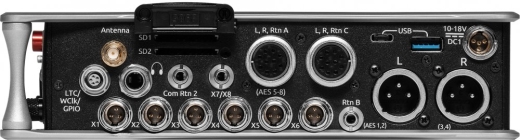

Outputs
- XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
- Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
- TA3 (X1-X6) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
- 3.5mm (X7, X8): unbalanced, stereo, 1.8k ohms
Headphone Outputs
- 1/4", 3.5 mm
- TA5 (along with mic input pins) for single connection to headset + mic
- High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
- Compatible with headphones of any impedance
Maximum Output Level (all into 10k load)
- Line: +20 dBu (7.8 Vrms)
- -10: +6 dBu (1.5 Vrms)
- Mic: -20 dBu (0.078 Vrms)
- X7/X8 Out: +6 dBu (1.5 Vrms)
- Headphone outputs (1/4", TA-5, X9/X10): +14 dBu (4.0 Vrms)
A/D converters
- 32-bit, 120 dB, A-weighted dynamic range typical
- Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
Digital Outputs
- AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)
- 110 ohm, 2 V p-p, AES and S/PDIF compatible
Recording
- Internal 256 GB SSD
- Two removable SD Cards
- Simultaneous recording to internal SSD and the two SD cards
- exFAT formatting
- 36 tracks (32 iso channels, 4 buses)
- Broadcast WAV monophonic and polyphonic file format
- 64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB
USB
- USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards
- USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices
Wireless
- Built-in Bluetooth v5.0 BLE (not supported with rev 1.0 release of SD-Remote)
Timecode and Sync
- Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes.
- Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
- Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)
- Timecode Input: 20k ohm impedance, 0.3 V - 3.0 V p-p (-17 dBu - +3 dBu)
- Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)
- Word Clock Input: 10k/75 ohm selectable impedance, 1-5 V p-p input sensitivity
- Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR
Remote Control
- USB MIDI Control - 3rd party fader controllers
- SD-Remote Android app
- USB Keyboard
- External Timecode Record Trigger
LCD
- 320x240, Transflective, excellent sunlight visibility
- Larger touchscreen display available via USB-connected SD-Remote app
Power
- External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)
- Dual rear-mount Sony-style L-mount batteries with chargers
- Idle Current Draw: 875 mA @ 12 V (10.5 W)
- Intelligent power-down of unused mic preamps and other internal circuits
Environmental
- Operating: -20 C to 60 C, 0 to 90% relative humidity (non-condensing)
- Storage: -40 C to 85 C
Dimensions (H x W x D)
- 5.1 x 32 x 20.5 cm (2 x 12.6 x 8.1")
Weight
- 5.8 lbs (2.63 kg) unpackaged, without batteries
Scorpio incorporates Sound Devices' most cutting-edge technology. An ultra-powerful engine comprised of three FPGA circuits and six ARM processors deliver the horsepower needed for the most complex tasks. FPGA-based audio processing with 64-bit data paths ensures the highest sound quality and reliability. The Scorpio also features Sound Devices' latest and best in analog microphone preamplifier design. These preamps have the smoothest sound and lowest noise of any preamp in the company's 20-year history and include built-in analog limiters, high pass filters, delay, 3-band EQ and phantom power.
Like Sound Devices' popular 788T, the Scorpio has an internal SSD and adds the ability to simultaneously record to two SD cards for redundancy. For additional flexibility, sound professionals can send different files to their choice of media. The companion SD-Remote Android application allows for control of the Scorpio via a large display.
Great attention to detail has been paid to every aspect of the Scorpio's design. Most common menus are accessible with only one or two button presses, and many menu shortcuts can be achieved with only one hand. Scorpio features a built-in dual L-Mount battery charger and may be powered with L-Mount batteries or via the TA4 DC inputs using smart batteries, NP-1 batteries, or in-line power supplies. The ultra-accurate, fully-featured timecode generator contains its own battery to hold timecode for up to four hours after power off.
Specifications
Freq. Response- 10 Hz to 80 kHz + 0.5 dB (192 kHz sample rate, re 1 kHz)
THD + Noise
- 0.005% max (1 kHz, 22 Hz-22 kHz BW, trim @20, fader @ 0, -10 dBu in)
Equivalent Input Noise
- -131 dBV (-129 dBu) max (A-weighting, 76 dB gain, 150 ohm source impedance)
Processing Engine
- Highly extensible, full FPGA-based audio processing, 3 FPGAs
- Six-way ARM multiprocessor system
- 64-bit audio processing precision
Audio Over Ethernet
- Dante, 32 channels in, 32 channels out
- AES67 compatible
- 1 Gb/s Ethernet, 2 ports, transformer-balanced
Inputs
- Mic/Line inputs: 16 total, all fully featured; 6 on full-size XLR, 2 on TA3, 8 on TA5
- Mic-level inputs: (XLR, TA3, TA5): Class-A, discrete differential long-tail pair, 4k ohm input impedance
- Line-level inputs: (XLR, TA3, TA5): active-balanced, 4k ohm input impedance
- AES3 or AES42 available on XLR inputs 1 and 6
- AES42: +10 V, 250 mA available, type-1, auto-ASRC
- Rtn A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance
- Com Rtn 1,2 (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance
- External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom
Maximum Input Level
- Mic: +8 dBu (2.0 Vrms)
- Line: +28 dBu (19.5 Vrms)
- Rtn A, B, C: +18 dBu (6.2 Vrms)
- Com Rtn 1, 2: +24 dBu (12.3 Vrms)
- External Slate Mic: +12 dBu (3.2 Vrms)
High-Pass Filters
- Adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital
Limiters
- Limiters available at all channels, buses, headphones, for all sample rates
- Analog first stage, all subsequent stages digital
- Attack time: 1 ms
- Release time: adjustable, 50 ms to 1000 ms
- Threshold: adjustable, -2 dBFS to -12 dBFS
- Selectable knee: hard or soft
- Selectable ratio: inf:1, 20:1
Delay
- Channel Adjustable 0-50 ms
- Output Adjustable 0-500 ms
Maximum Gain
- Trim stage (mic input): 76 dB
- Trim stage (line input): 36 dB
- Fader stage: 16 dB
- Bus stage: 16 dB
- Headphone stage: 20 dB
- Mic-to-Line: 108 dB
- Mic-to-Headphone: 112 dB
Outputs
- XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
- Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
- TA3 (X1-X6) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
- 3.5mm (X7, X8): unbalanced, stereo, 1.8k ohms
Headphone Outputs
- 1/4", 3.5 mm
- TA5 (along with mic input pins) for single connection to headset + mic
- High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
- Compatible with headphones of any impedance
Maximum Output Level (all into 10k load)
- Line: +20 dBu (7.8 Vrms)
- -10: +6 dBu (1.5 Vrms)
- Mic: -20 dBu (0.078 Vrms)
- X7/X8 Out: +6 dBu (1.5 Vrms)
- Headphone outputs (1/4", TA-5, X9/X10): +14 dBu (4.0 Vrms)
A/D converters
- 32-bit, 120 dB, A-weighted dynamic range typical
- Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
Digital Outputs
- AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)
- 110 ohm, 2 V p-p, AES and S/PDIF compatible
Recording
- Internal 256 GB SSD
- Two removable SD Cards
- Simultaneous recording to internal SSD and the two SD cards
- exFAT formatting
- 36 tracks (32 iso channels, 4 buses)
- Broadcast WAV monophonic and polyphonic file format
- 64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB
USB
- USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards
- USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices
Wireless
- Built-in Bluetooth v5.0 BLE (not supported with rev 1.0 release of SD-Remote)
Timecode and Sync
- Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes.
- Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
- Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)
- Timecode Input: 20k ohm impedance, 0.3 V - 3.0 V p-p (-17 dBu - +3 dBu)
- Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)
- Word Clock Input: 10k/75 ohm selectable impedance, 1-5 V p-p input sensitivity
- Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR
Remote Control
- USB MIDI Control - 3rd party fader controllers
- SD-Remote Android app
- USB Keyboard
- External Timecode Record Trigger
LCD
- 320x240, Transflective, excellent sunlight visibility
- Larger touchscreen display available via USB-connected SD-Remote app
Power
- External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)
- Dual rear-mount Sony-style L-mount batteries with chargers
- Idle Current Draw: 875 mA @ 12 V (10.5 W)
- Intelligent power-down of unused mic preamps and other internal circuits
Environmental
- Operating: -20 C to 60 C, 0 to 90% relative humidity (non-condensing)
- Storage: -40 C to 85 C
Dimensions (H x W x D)
- 5.1 x 32 x 20.5 cm (2 x 12.6 x 8.1")
Weight
- 5.8 lbs (2.63 kg) unpackaged, without batteries
Media
Youtube video product demo
Q & A
There are currently no questions for this product.
Reviews
There are currently no reviews for this product. Be the first to write one!
Protect your investment with the Long & McQuade Performance Warranty
A warranty can be a very important factor when making a buying decision. Because repairs can be very expensive in terms of parts and labour costs, manufacturers usually only provide one year limited warranties that generally only cover items that malfunction due to a manufacturer’s defect. With an important purchase such as a musical
instrument or piece of studio gear, however, many people want to have the peace of mind in knowing that their investment will be protected should the product no longer be performing at 100%.
Because of this, Long & McQuade provides our customers with a FREE one-year Performance Warranty on most of our products. The Long & McQuade Performance Warranty supplements the manufacturer’s warranty to ensure that our customers receive complete “no hassle” warranty coverage within their first year.
How does the Long & McQuade Performance Warranty differ from most manufacturers' warranties?
- Performance Guarantee: Normal wear and tear is covered, so your product will be performing as well as the day you purchased it for the entire duration of the coverage. Band and Orchestral Performance Warranty does not include replacing pads or cleaning for woodwind instruments, unless deemed necessary by our repair staff. Ultrasonic cleaning for brass instruments will be provided if deemed necessary by our repair staff, but is not routinely offered under the Performance Warranty.
- Product Replacement: If your product cannot be fixed or costs too much to fix, we will replace it with the equivalent model for no additional charge. If this is not possible, a full refund will be provided.
- No Lemon Policy: Your product will be replaced should the same problem occur multiple times.
- Convenient: Easy drop off and pick up of the product at any Long & McQuade location.
- Guitar Setup: Guitars purchased at Long & McQuade come with 1 free setup, to be redeemed within 1 year for new guitars and 90 days for used guitars.
- Loaners Available: A loaner product may be given while the product is being repaired.
- Power Surge Protection: Your product is covered even if damaged from a power surge.
- Accessory Coverage: Any peripheral devices or accessories that come with your product (i.e. foot pedal, case) are also covered.
- Commercial Use Coverage: Music and recording professionals who purchase gear for “heavy-use” commercial purposes will still be covered.
Long & McQuade reserves the right to restrict the purchase of additional years of Performance Warranty. Used products come with a 3-month Long & McQuade Performance Warranty. Some products (i.e. computers, software, cymbals and other items) are covered only by the manufacturer‘s warranty. Consumables (i.e. strings, reeds, drum sticks, batteries, tubes, cross faders) are excluded as they are designed to be replaced. Cosmetic Damage, Accidental Damage, or problems caused by Humidity or Temperature Issues are not covered. Speakers damaged by overpowering are generally not covered. Our coverage does not provide compensation for loss of use. As of June 2018 the Performance Warranty is no longer transferable. The warranty is only valid in Canada.
Purchasing additional years of coverage
Some manufacturers provide warranties for longer than 1 year; however, these are usually limited warranties that do not provide the same coverage as the Long & McQuade Performance Warranty. Customers interested in more complete and convenient (but not necessarily longer) coverage are still able to purchase additional years of the Performance Warranty.
If you are interested in receiving this coverage for longer than one year, you have the option of purchasing additional years of the Performance Warranty. The pricing is as follows:
- NEW products: Starting at 4% of the current new selling price to double the warranty from 1 year to 2 years. Starting at 4% for each additional year.
- USED products: Starting at 4% of the current new selling price to increase the warranty from 3 months to 1 year. Starting at 4% for each additional year.
- GUITARS: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year. $45 maximum. An additional free setup is not included with additional purchased years of Performance Warranty.
- BAND and ORCHESTRAL instruments: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year.
Great Additions
Reserve in Store
| Product | SKU | Qty |
|---|---|---|
| Scorpio 32-Channel Portable Mixer/Recorder | 812407 |
