Strymon AA.1 Amplifier Attenuator Eurorack Module

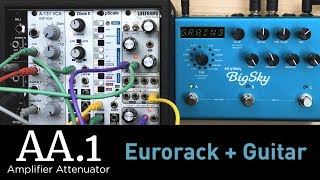

Product Videos :
Merge Guitar With Modular
AA.1 is purpose built to combine your guitar gear and Eurorack modules in just about any way you can imagine. Connect a pedal to the effects send and return of Magneto. Use your guitar or bass as a signal source for mangling and warping with your modular gear. Send an instrument level stereo master output from your modular rack to your computer audio interface.
On The Level
AA.1 is designed to solve all the issues that arise when introducing guitar gear to the world of Eurorack. Most Eurorack modules output very hot audio signal levels that can easily overload the inputs of effects pedals or computer audio interfaces. And it's not just the output of the modules: Audio inputs in a Eurorack system also need to receive hot signals. AA.1 amplifies the input and attenuates the output signals to the appropriate levels.
Easy to Use
AA.1 is straightforward to use. The 1/4" stereo input amplifies guitar level signals by +18dB, outputting the amplified signal through left and right 1/8" outputs (use the left output for mono). Left and right 1/8" inputs attenuate Eurorack level signals by -18dB, sending the attenuated signal through left and right 1/4" outputs suitable for outputting to guitar level products.
Specifications
Amplifier:Gain: +18dB
Max Input Level (before soft clipping): 2.25Vpp
Max Output: 18Vpp
Input Impedance: 1 MΩ
Output Impedance: 1 kΩ
20Hz 20kHz, +/- 1dB
Attenuator:
Gain: -18dB
Max Input Level (Nominal): 20Vpp
Max Output Level (Nominal): 2.5Vpp
Input Impedance: 8 kΩ
Output Impedance: 880 Ω
20Hz 20kHz, +/- 1dB
Power
+12V rail: 10mA max
-12V rail: 10mA max
+5V rail: 0mA
Dimensions
Rack Width: 4 HP
Rack Depth: 1.5" (38mm)
