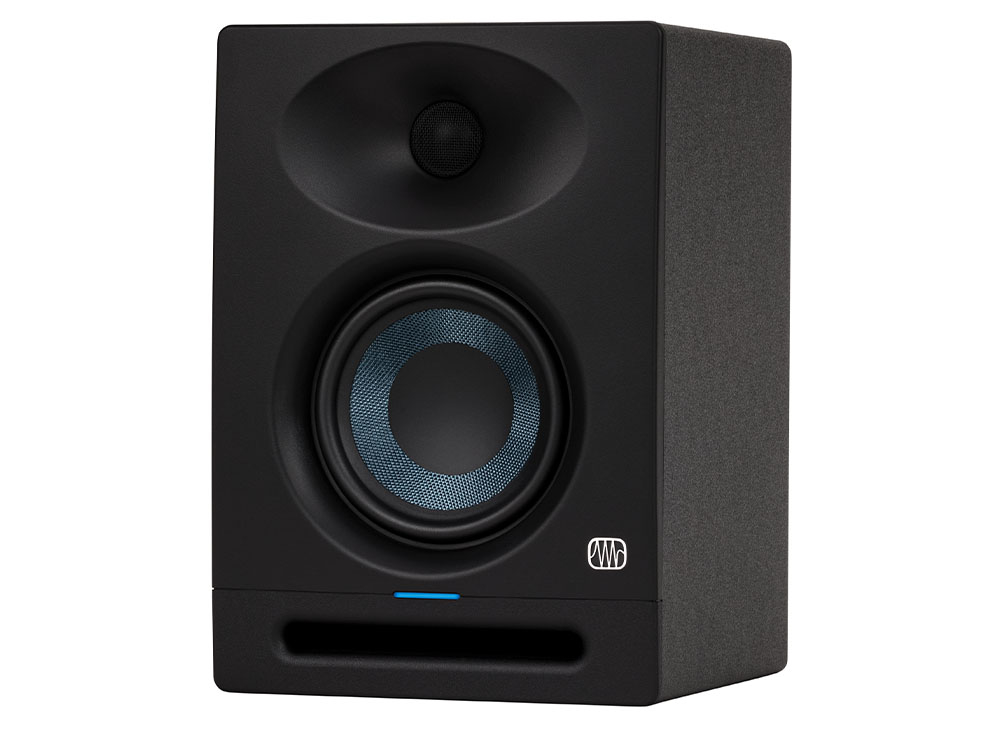

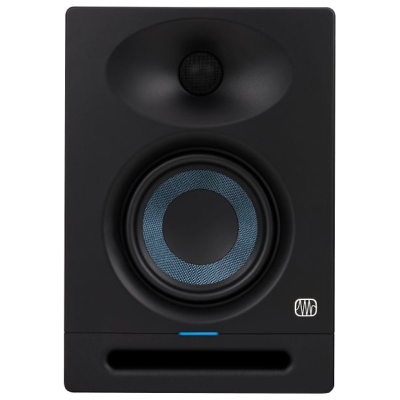

PreSonus Eris Studio 4 (Single) 4.5-inch 2-Way Active Studio Monitor with EBM Wave Guide
Additional Photos:
Product Videos :
The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response that allows you to hear the finest details in your mix, while a wide 120-degree horizontal dispersion creates a broad sweet spot with lifelike stereo imaging. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction.
The 4.5-inch, woven-composite, low-frequency driver produces tight, clear bass with plenty of punch that defies the Eris Studio 4's space-saving size. The ported enclosure and 50W of biamped power combine to maximize bass response and allow the Eris Studio 4 to reach down to an astonishing 55 Hz - without a subwoofer!
Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking Eris speakers up to virtually anything.
Features
• 4.5-inch, woven-composite, low-frequency transducer• 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
• 120˚(H) x 60˚(V) EBM waveguide for wide sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 50W, Class AB biamplification
• 55 Hz to 20 kHz frequency response
• 100 dB SPL (Peak, @ 1 meter)
• Acoustic Tuning controls: HF (+/-6 dB, continuously variable); Midrange (+/-6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
• RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier "soft start" feature (eliminates popping on power-up)
• Internal power supply with IEC connector and power switch with on/off LED
• Balanced XLR and -inch inputs and unbalanced RCA inputs
Set up your studio monitors for your room.
Eris® Studio 4 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.
Honest. Expressive. Powerful.
Like all PreSonus® studio monitors, the Eris® Studio 4 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space, and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.
Specifications
DimensionsWidth: 7" (17.8 cm)
Height: 10" (25.4 cm)
Depth: 7.28" (18.5 cm)
Weight: 8.8 lbs (4 kg)
Electronics
Voltage Requirements: 100-240 VAC, 50-60 Hz
Connection Type: IEC
Hardware
Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard
Monitors
Protections:
- RF Interference
- Output-Current Limiting
- Over-Temperature
- Turn-On/Off Transient
- Subsonic Filter
Audio Switches: Acoustic Space (Flat, -2 dB, -4 dB); Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Audio Controls: Volume - High Frequency (+/-6 dB, center 10 kHz, continuously variable); Mid Frequency (+/-6 dB, center 1 kHz, continuously variable)
Peak SPL: 99 dB (at 1 meter)
Crossover Frequency: 2.7 kHz

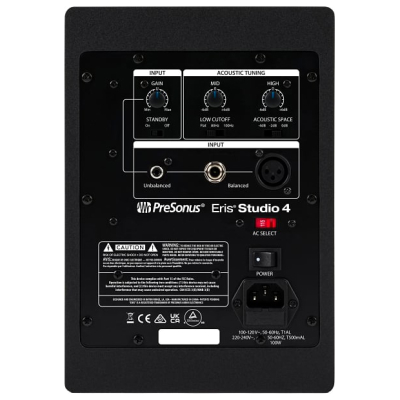

Monitor Inputs: 1 - Balanced XLR, 1 - Balanced 1/4" TRS, 1 - Unbalanced RCA
HF Transducers: 1" Ultra Low Mass, Silk Dome Tweeter
LF Transducers: 4.5" Woven Glass Fiber Composite
Frequency Response: 55 Hz - 20 kHz
Input Impedance: 10 kΩ
Coverage Pattern: 120 degree (H) x 60 degree (V)
Monitor Amplifier Power: 50W Bi-Amped
