Xvive Audio XVIVE-PX Portable 3 Channel Personal Mix Set
Additional Photos:
Product Videos :

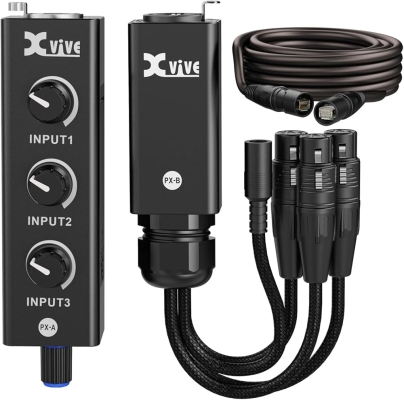

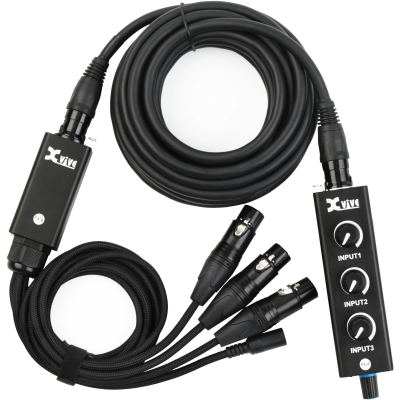

The PX-A 3-Channel Mixer and Headphone Amplifier is a beltpack unit that accepts three audio signals, lets you mix them however you like, and passes on the mixed signal to your in-ear monitors, earphones or headphones.
You choose what you need to hear and adjust as needed during performance. Singers, for example, need to control their own volume, but will also need to hear whatever instruments they rely on for a pitch reference. So Input 1 might be an aux mix including only their vocalor a mix of all vocals with their voice loudest; Input 2 could have a mix of guitar and keyboards, and Input 3 could be a mix of bass and kick drum. This is just one example!
Whether you're a singer or an instrumentalist - or both - the PX system lets you hear what you want to hear on stage, in the studio or in rehearsal.
Features
A snake you can trust - The PX-A Mixer receives audio from a mixing console via the PX-B 3-Channel Snake. The snake's three XLR plugs (or included XLR-to-1/4" TS adapters) connect to outputs (typically aux outputs) from the console, or other audio sources such as a drum machine or audio interface. Then the included 25-foot EC25 Cat 5 Cable sends the audio to the input of your PX Mixer.Power Options - The PX-A Mixer can be powered by two AAA batteriesor, more reliably, a 9V / 2A center-negative power supply connected to the PX-B Snake. The ethernet cable, which can be up to 200 feet long, conveys both the audio from the console and the PoE (Power over Ethernet) from the power supply!
Mix and Pan - Not only can you adjust your master earphone/headphone volume and the levels of your three chosen channels, but you can also pan the channels (left, right or center) using DIP switches located inside the PX-A's battery compartment. This can help you hear better by isolating the channels.
Reliable Signal and Sound Quality - The locking Cat 5 cable connector on the PX-A ensures that your Ethernet cable stays connected during performance. Audio signals are transmitted digitally up to 200 feet, without degradation, via Ethernetand thanks to the PX-A's high-quality preamp and internal circuitry, you will enjoy pristine audio at all times.
Expand for a Band - If you're performing, recording or rehearsing with a band of up to five people, you can expand your PX system with the PX-H 5-Channel Hub. Each additional band member would need their own PX-A Mixer and Ethernet cable, but only one PX-B Snake and one power supply would be needed to send audio to the Hub and supply all connected Mixers with power.
Specifications
Input Type: XLR BalancedOutput Type: 1/8" TRS, stereo
Impedance: 8 - 80 kΩ
Max. Output: 2x 150mW @ 16Ω
Power Input: PoE (Power over Ethernet) or 2x AAA batteries
Battery Life: ~5 hours
Current: ~210 mA
PoE Power Requirement: 9V/2A center-negative. Powers up to 5 PX-A units
