EVH 5150 Iconic Series 40W EL34 1x12 Combo - Black
Additional Photos:
Designed by renowned amp engineer, James Brown, the 5150® Iconic® Series 40-watt 1x12 combo is powered by two EL34 power tubes and voiced by a complex, multi-stage hybrid preamp section anchored by a duet of ECC83 tubes providing all the fire power the modern guitarist needs. The cabinet is constructed out of MDF with special internal plywood baffling for tight and increased bass response, and houses a custom designed EVH 12" Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.
Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel's burn button adds fiery crunch that's ideal for blistering leads.
Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The channel two noise gate's quick attack suppresses any hiss while ensuring all staccato riffing is articulate and crisp, not choked and choppy. The Boost control allows you to add another 10Db of foot-switchable volume to your tone - perfect for ensuring your solos cut through the mix. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.
Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, 1/4 power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system.

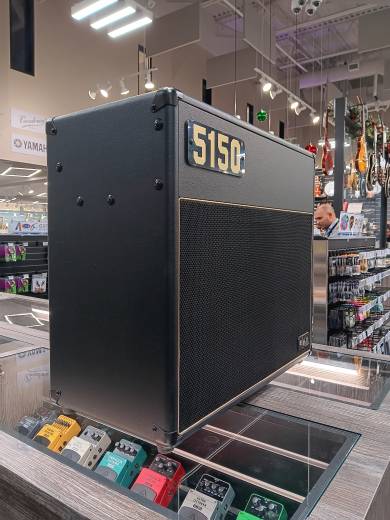

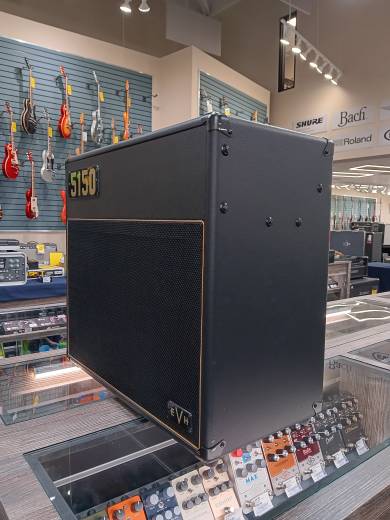

Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 40-watt 1x12 combo is wrapped in either Black textured vinyl with a black cloth front grille and features gold and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed gold anodized aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle.
Features
• 40-watt 1x12 combo• Cabinet is constructed from MDF with a plywood baffle
• Two channels: Green and Red; Green channel has overdrive button to go from clean to increased gain, while the Red channel has a burn button to go from lead to burn
• Dual Gain, Noise Gate (Ch 2), Shared Low, Mid, High EQ, Dual Volume, Shared Boost and Global Reverb, Resonance and Presence controls

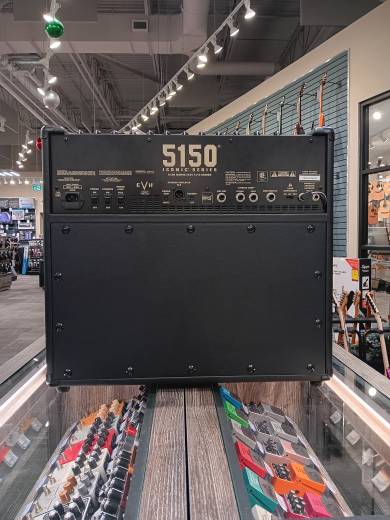

• 1/4 Power level switch, standby switch, power switch and ground lift located on rear panel
• Selectable impedance (4, 8 or 16 ohms)
• Two ECC83 preamp tubes and two EL34 power tubes
• One 12" EVH® Celestion® Custom speaker
• Dual parallel speaker output jacks
• Effects loop
• XLR DI out with speaker simulation
• Two-button footswitch included
Specifications
ElectronicsCONTROLS: Channel 1: Gain w/ Overdrive Switch; Channel 2 Gain w/ Burn Switch; Noise Gate Channel 2: Low, Mid, High EQ; Channel 1/ Channel 2 Volume, Master Boost, Global Reverb, Resonance, and Presence
CONTROL PANEL: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Noise Gate (Channel 2); Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Master Boost; Global Reverb, Resonance and Presence
INPUTS: One - 1/4"
HEADPHONE JACK: None
LINE OUT: Two - (One XLR and One 1/4")
CHANNELS: Two - Clean/Overdrive and Lead/Burn
EFFECTS: Reverb
EFFECTS LOOP: 1/4" (Send/Return)
CONNECTION TYPE: 1/4"
VOLTAGE: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
WATTAGE: 40 Watts
Hardware
CONTROL KNOBS: Black Chicken-Head Style Pointer
AMPLIFIER COVERING: Black Textured Vinyl
CABINET MATERIAL: MDF w/ Plywood Baffle
GRILLE CLOTH: Black
HANDLE: Molded Plastic Strap with Black Powder Coated Caps
SPEAKER JACK: Two - 1/4" Parallel
Speakers
SPEAKERS: One - 12" EVH® Celestion® Custom
SPEAKER WATTAGE: 40 Watts
TOTAL IMPEDANCE: 4, 8, or 16 ohms
Tubes
POWER TUBES: 2 X EL34
PREAMP TUBES: 2 x ECC83S
RECTIFIER: Solid State
