BAE Audio 1073MP Single Channel Preamp with Power Supply

SKU: # 343670   |   Model: # SIN73MPWPS   |    Product Reviews0 Reviews  Write a Review

1073MP Single Channel Preamp with Power Supply

Additional Photos:

1073MP Single Channel Preamp with Power Supply
1073MP Single Channel Preamp with Power Supply
1073MP Single Channel Preamp with Power Supply

Product Videos :

YouTube Video BAE 1073 MP
Your Price: $1,750.00 CDN
or from $145 CDN/mo
Notify Me

Buy Online

 Add to Cart

Buy In-Store

The BAE 1073MP Single Channel preamp yields a really fat sound. It smoothes the top end which gives the highs a silky sheen. This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

A Carnhill transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones. There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments. As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

Features

• All Class A, transformer-coupled design in a 19" 1U chassis
• Line level XLR inputs for extra versatility as a line preamp
• High impedance DI for guitar and synth
• The same Class A components as the 1073 and 1084
• Illuminated phase reverse and phantom power push-buttons
• Input impedance selector switch between 1200 and 300 ohms
• Same modular design and hand-wiring BAE is known for
• Regulated linear power supply will run up to four channels

Specifications

Frequency Response
- 10Hz to -3dB at 55kHz

Mic Input Impedance
- 1200/300 ohms

Line Input Impedance
- 10k ohms

DI Input Impedance
- 150k ohms

Output Impedance
- 65 ohms

Common Mode Rejection Ratio
- 100dB min @ 60Hz

Maximum Output Level
- +27.4 dBu @ 600

Power Requirements
- 115/230 VAC, 30W

Gain dB
- 0 to 71 dB

Equivalent Input Noise
- -110 dBu; Unweighted 300kHz Bandwidth

Weight (Single/Dual)
- 8 LBS/3.63 KG

Dimensions (Inches)
- 19W x 1.75L x 9D

Media

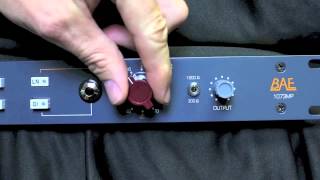

BAE 1073 MPWatch Video
Youtube video product demo

Q & A


There are currently no questions for this product.

Reviews


There are currently no reviews for this product. Be the first to write one!
