WD Music Deluxe Tailpiece - Black
2 models to choose from:

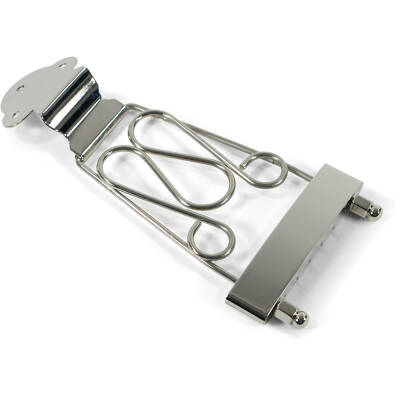

This tailpiece for archtop guitars is a classic design with decorative metalwork supporting the shape of the bracket that links to the tailpiece hinge.
Mounting Hole Locations
- From top curve in bracket mount to the first two screw holes: 9/16 inches
- Width between first two mounting screw holes: 1 11/32 inches
- From top to single bottom screw hole/strap peg: 1 inch
- Length of Bracket from curve to hinge location: 1 3/16 inches
- Length from wire hinge to string mount: 4 1/2 inches
- String spacing E to E on tailpiece: 1 31/32 inches
- Width of metal string mount bracket: 11/16 inches
Mounting Hole Locations
- From top curve in bracket mount to the first two screw holes: 9/16 inches
- Width between first two mounting screw holes: 1 11/32 inches
- From top to single bottom screw hole/strap peg: 1 inch
- Length of Bracket from curve to hinge location: 1 3/16 inches
- Length from wire hinge to string mount: 4 1/2 inches
- String spacing E to E on tailpiece: 1 31/32 inches
- Width of metal string mount bracket: 11/16 inches
