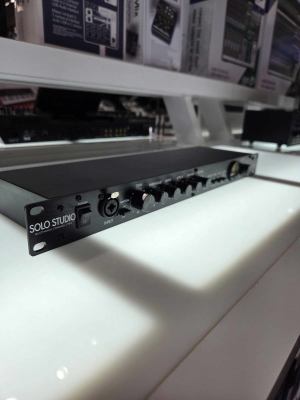

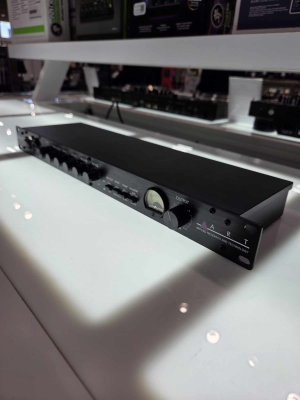

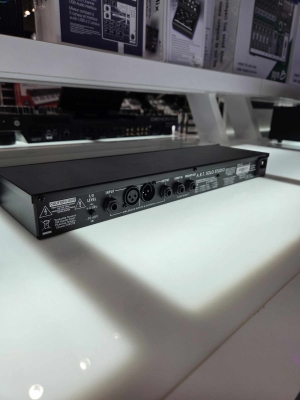

ART Pro Audio Multi-Voice Channel Strip

Combining the best of both worlds, the SOLO STUDIO Multi-Voice Channel Strip allows users to choose between a pristine low-noise/low-distortion solid state transistor circuit and a warmer Class-A tube mic preamp. With the flexible Tilt EQ control, users can voice the SOLO Studio to create their own signature sound.

Featuring 48V phantom power, a front Microphone/Line balanced input or a high impedance Instrument input, users can tailor the SOLO Studio to suit any sound source. A Low-Cut control allows vocals to be sculpted for clarity while the Tilt EQ can be used to emphasize high presence or low-end warmth.

The SOLO Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

Features

• 48 Volt Switchable Phantom Power
• Selectable Multi-Voice Tube/Solid State Control
• Hand selected 12AT7 Tube
• OPTO - Analog Optical Isolators (AOI)
• Optical Controlled Compression
• Pre-Compression Insert Loop
• Flexible Tilt EQ
• Selectable Low Cut Filter (HPF)
• Variable Threshold and Ratio controls
• Variable Attack and Release controls
• Variable Blend (Compression)
• Variable Output Level Control

Specifications

Frequency Response: 15 Hz to 50 kHz (+0, -1dB)
Dynamic range: >110dB (A weighted)
CMRR: >90dB
THD: 800k ohms (Instrument)
Maximum Output Level): +27dBu (XLR)
Output Impedance: < 47 ohms (XLR)
Maximum Gain: 55dBMeter
Attack Time: 0.25msec. to 50msec. variable
Release Time: 150msec. to 3sec. variable
CMRR: >90dB THD
