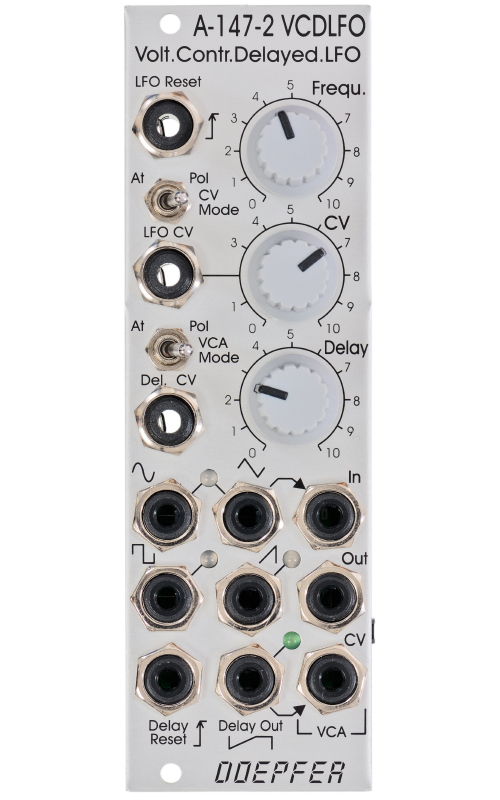

Doepfer Voltage Controlled Delayed Low Frequency Oscillator

Module A-147-2 is the successor of the VCLFO A-147 but offers much more features than the predecessor. The module is made of these sub-units:
VCLFO: voltage controlled low frequency oscillator
VCA: voltage controlled amplifier, switchable to voltage controlled polarizer
VC delay unit: voltage controlled linear attack envelope (only one parameter: attack) for delayed LFO operation in combination with the VCA (e.g. delayed vibrato/tremolo

Specifications

Output level Triangle, Sine and Rectangle: about -4 to +4V (symmetrical)
Output level sawtooth: about 0 to +8V (positive only)
Frequency range without external CV: about 0.005Hz to 200Hz
Frequency range in ultra low mode or external CV: about 1kHz
Trigger signal for LFO Reset/Delay Reset: rectangle with at least min. 6 Vpp
VCA CV/amplification: 0 to +5V for amplification, 0 to +1 (in VCA mode), 0 to +5V for amplification -0,5 to +0,5 (in polarizer mode)
Delay range: about 5ms
