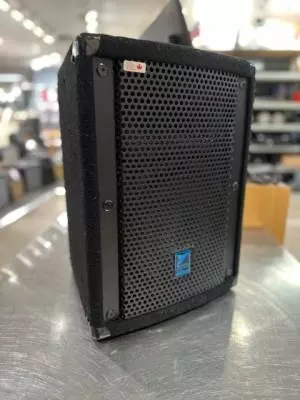

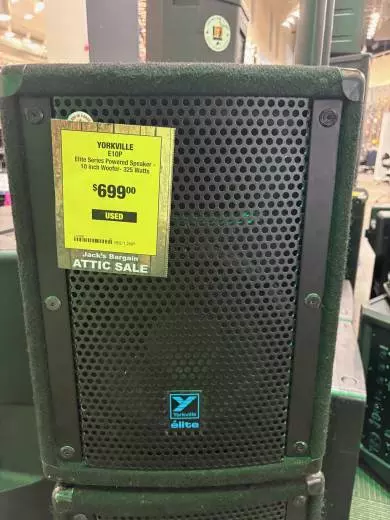

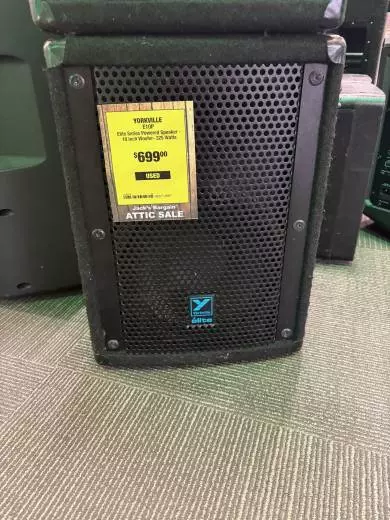

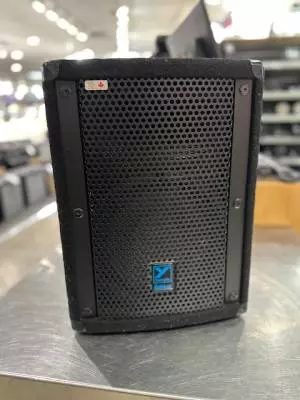

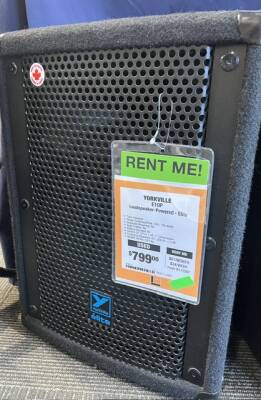

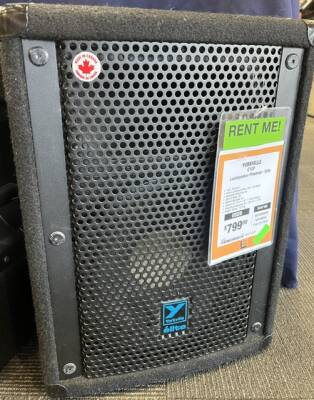

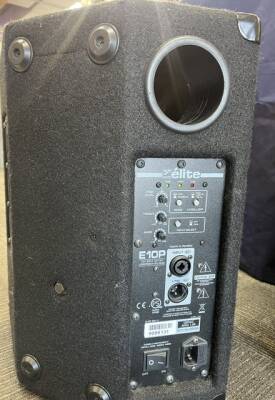

Yorkville Sound Elite Series Powered Speaker - 10 inch Woofer- 325 Watts
Additional Photos:

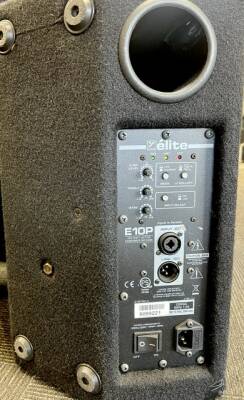

Built for maximum versatility, the E10P input section will easily handle microphone or line level inputs through the XLR / TRS Combi-jack. Bass and Treble EQ in addition to Level control and a Mic/Line input gain selector ensure the E10P can handle virtually any audio source. A Live/Playback EQ preset selector, a 100Hz/50Hz low-frequency Roll-off selector (no crossover needed for subs), a full-time Limiter with LED indicator, a Clip LED, a Link output ensure the E10P can adapt easily to any audio application including use as a front-of-house PA loudspeaker, as a personal wedge monitor or as a single unit micro PA for a paging and playback system (no additional mixer required).
A lightweight, low-noise 300-Watt Class-D amplifier drives the low frequency 10-inch woofer while a two-tier 50-Watt amplifier capable of delivering an exceptionally clear and linear high-frequency response powers the 1-inch horn. An on-board active DSP based crossover ensures that the woofer and horn operate optimally while protecting the high quality speaker components.

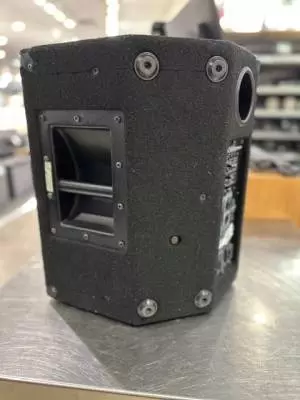

The E10P features a powerful yet lightweight 10-inch low-frequency driver with a neodymium magnet, a silky-smooth 1-inch horn and driver and an enclosure built from voidless 15mm multi-ply Baltic birch for light weight with classic Elite ruggedness. That durability is engineered into the multi-angle enclosure pioneered for the Elite line that enables the E10P to operate vertically on a stand or horizontally as a stage monitor. For added convenience, the E10P easily converts between 120VAC, 230VAC or 240VAC.
Specifications:
System Type - Powered, Biamped Rear-Ported Reflex
Total Applied Power (Watts) - 350
Frequency Response (Hz +/- 3db)- 65-20k
Crossover Frequency (Hz) - 1500
HF Applied Power (Watts) - 50
HF Driver - 1-inch, 60 Watts pgm, 8 Ohms
HF Horn - Non-Resonant Foamcore
HF Dispersion (H x V)- 100 x 25
HF Protection -Peak and Average Limiting
LF Applied Power(Watts)- 300
LF Driver - 10-inch, 300Wpgm, 4 Ohms
LF Protection - Excursion + RMS Limiting
Amplifier Cooling Scheme - Convection
Power Consumption (typ/max) - 120VA/200VA
Mic/Line Input - Combi (XLRF / 1/4-inch)
Link Output - XLRM
Input Impedance (Bal/UnBal)- 4k ohms/2k ohms
Input Level - Selectable, Mic/Line
Line-Level Input Sensitivity (Vrms Sine) - 1.4 at center, 0.35 at max
Controls - Gain, Bass, Treble, Live/Playback Pre-EQ
Selectable LF Rolloffs (Hz) - 45/100
Limiting - Peak and Average on horn and woofer
LED Indicators - Power, Clip. Limit
Corners- Metal
Flypoints - 5 x 1B 1/4" (2 Top, 2 Bottom, 1 Back)
Bar Handles - One
Stand Mount Adapter - 1 3/8"/3.5cm dia.
Enclosure Material - 15mm (5/8-inch) 11-ply Russian Birch
Grille - Perforated Metal
Covering - Black Ozite
Optional Finish - Black Ultrathane Paint (E10PB)
Dimensions (DWH+back, inches)- 12 x 13 x 18.5 x 5.5
Dimensions (DWH+back, cm)- 30 x 33 x 45 x 14
Weight (lbs/kg)- 34/15.5
