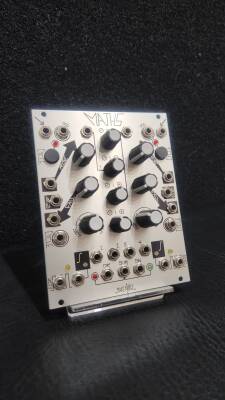

Make Noise MATHS Music Synthesizer Module

The MATHS music synthesizer module is an analog computer designed for musical purposes...amongst other things!

Features

• Generate a variety of linear, logarithmic, or exponential triggered or continuous functions
• Integrate an incoming signal
• With no signal applied, generate a variety of linear, logarithmic, or exponential functions
• Add, subtract and OR up to 4 signals
• Generate analog signals from digital information (Gate / Clock)
• Generate digital information (Gate / Clock) from analog signals
• Delay digital (Gate / Clock) information
• Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz
• Apply Lag, Slew or Portamento to control voltages
• Change the depth of modulation and modulate backwards
• Combine up to 4 control signals to create more complex modulations
• Musical Events such as Ramping up or Down in Tempo, on command
• Initiating Musical events upon sensing motion in the system
• Musical note division and / or Flam
• Perfect for modulating the DPO and just about anything else

Specifications

Width: 20hp
Max Depth (incl. power cable): 32mm
Power: 60mA@ +12V / 50mA @ -12V
