Roland VR-6HD Direct Streaming AV Mixer
Additional Photos:

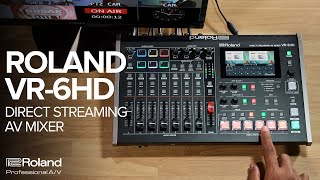

Product Videos :
VR-6HD Key Features
• Ultra-compact audio/video mixer with direct streaming encoders• Powerful live production automation with sequencing, macros, and scene memories
• Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
• Record streams directly to an SDXC card for archiving, editing, and distribution
• Six 1080p HDMI inputs with frame rate converters and real-time scalers
• Support for cinema and broadcast frame rates
• Five-layer video effects engine
Connect with live attendees in Full HD with six HDMI inputs and simultaneously broadcast to the web with the dedicated direct streaming output. The VR-6HD also delivers world-class audio quality with 28 simultaneous channels and acclaimed Roland sound mixing features. Plus, record livestreams directly to an SDXC card for archiving, editing, and future distribution.
Video switching, audio mixing, and LAN/USB streaming encoders are integrated into a single streamlined unit, eliminating the hassle and frustration that comes with connecting multiple devices. And one operator can easily handle all production tasks with minimal study, thanks to the smart interface, deep automation tools, one-touch macro sequencing, PTZ camera control, and more.
Other Features
• Five total outputs: three HDMI, USB-C streaming, and a dedicated direct streaming output• Six selectable output modes: Program, Sub-Program, Aux, Preview, Multi-View, and Still-View
• 28-channel digital audio mixer with advanced effects and processing
• 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
• Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
• Audio Player function with six trigger pads and onboard storage for 12 audio files
• Control six PTZ cameras with support for multiple brands and mixed protocols
• 4.3-inch touch screen with graphical menu
• Extensive device control with Bluetooth®, USB, RS-232, and LAN
• Remote control software available for iPad, macOS, and Windows
• Wireless and wired camera tally support
High-Quality Presentations Made Easy
The powerful video capabilities in the VR-6HD make it simple to bring professional production values to business streaming productions. Connect multiple cameras and computers via HDMI for different views, and incorporate robotic PTZ cameras to change angles at the touch of a button. Quickly assign and switch among sources on the fly, including live HDMI inputs, presentation decks, still images, and video clips. You can also create custom feeds for live and online viewers by assigning composition layers to multiple busses.
Multiple HDMI Inputs
The VR-6HD supports HDMI - the most common video connector in the world - and you can seamlessly combine six HDMI sources in Full HD with a range of broadcast and cinematic frame rates and colour spaces. Built-in scalers with EDID and HDCP support provide easy integration with sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
Integrated Playback of Stills and Video Clips
Enhance events with onboard support for graphics and video playback. Call up still images during transitions between presenters, display graphics, and use PNGs to create dynamic lower thirds. The integrated video player lets you trigger video clips directly from the SDXC card, with no need to connect an external playback device.
Layers and Keyers
Video effects and graphics are must-haves to bring polish and excitement to productions. The VR-6HD's effects engine features five composition layers that can be assigned to the Program, Sub-Program, and Aux outs, so you'll always keep audiences engaged. With up to two picture-in-picture windows and one downstream key layer with transparent PNG and external key support, you can manage any creative need.
Assignable Video Outputs
The VR-6HD puts a high-end video matrix at your fingers with three HDMI outputs, a USB-C streaming output, and an ethernet streaming output. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audiences at once, complete with a clean output left over for recording the presentation to an SDXC card.
Professional Digital Audio Mixing
The VR-6HD delivers world-class audio quality with 28 simultaneous channels and Roland's acclaimed sound mixing features. Comprehensive EQ and dynamics processing is provided on every channel, complete with convenient preset libraries for achieving pro results instantly. Powerful problem-solving tools are also on hand, including audio sync alignment, de-essing, noise suppression, and more. It's even possible to play back stored audio during streams with quick touches on the panel.
Multi-Channel Audio Inputs and Bluetooth
The VR-6HD offers professional analog audio connectivity with six balanced XLR/TRS combination jacks, high-quality mic preamps, and phantom power. Stereo RCA inputs are available for audio players, electronic instruments, and other line-level devices, and you can mix the embedded digital audio from sources connected to the HDMI and USB inputs. And with onboard Bluetooth, it's easy to stream wireless audio from any mobile device.
Powerful Mixing Tools
Set up direct control for your most important sound feeds with seven assignable faders. And when you have multiple presenters to deal with, engage Auto Mixing to lighten your load and ensure that the mix between microphones remains balanced. You can set specific inputs to take priority when someone starts to speak, and other audio levels are automatically reduced as needed.
Shape Your Sound
The VR-6HD combines the full power of the latest digital audio consoles with expansive Roland effects. Four-band EQs and dynamics processing are provided for every input and output, and high-quality reverb is available for music applications and special effects. You also get specialized tools to quickly handle audio issues, like automatic anti-feedback for stage mics and adaptive noise reduction to suppress background noise and hum.
Audio On Demand
With the VR-6HD's unique Audio Player section and six assignable pads, it's simple to enhance events with custom sounds. With a quick press, you can trigger sound effects, event announcements, countdowns for e-sports, or theme songs for presentersthe sky's the limit.
Ethernet/USB Streaming and Onboard Recording
The VR-6HD's advanced technology makes livestreaming to the most popular platforms smooth and worry-free. With direct streaming over ethernet, computer streaming over USB, and Adaptive Bitrate support, you can deliver high-quality presentations to any audience. And with simultaneous SDXC recording, it's easy to capture presentations for archiving and distribution.
USB-C Streaming Up to 60 FPS
Stream to any audience in Full HD to a computer via USB. The USB-C connection offers the same plug-and-play technology as webcams*, so you can begin streaming immediately with Zoom, Microsoft Teams, or any platform that can use a webcam as its source.
*USB video class (UVC) and USB audio class (UAC) compliant.
Take Full Control of Your Productions
Thanks to its well-organized panel and intuitive workflow, even novice operators will feel comfortable using the VR-6HD. Hardware knobs, faders, and buttons offer direct control for essential functions, while the 4.3-inch touch display provides smooth access to deeper parameters and settings. Scene memory, macro, and sequencing features simplify operation even more, letting you pre-program complicated actions and fire them off with simple actions.
PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple operators, provide enhanced broadcast-quality coverage, and can be placed in discreet locations thanks to their small size. The VR-6HD features integrated support for select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like and operate up to six PTZ cameras simultaneously.
Specifications
General
Available Mix Effect Layers: 5
Effect Types: DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys: 1 x Chroma, Alpha, Luma, DVE
Audio Mixing: 28-Channel Mixing
Processing
Processing Resolution: 1080/60p
Colour Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Audio Processing: 48 kHz / 24-Bit
Input
Video Inputs: 6x HDMI Female
Input Video Format:
HDMI (8-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94 fps
720p at 50/59.94 fps
576p at 50 fps
576i / 625 lines at 50 fps
480p at 59.94 fps
480i / 525 lines at 59.94 fps
VGA (640 x 480) at 60 fps
SVGA (800 x 600) at 60 fps
XGA (1024 x 768) at 60 fps
WXGA (1280 x 800) at 60 fps
SXVGA (1280 x 1024) at 60 fps
FWXGA (1366 x 768) at 60 fps
SXGA+ (1400 x 1050) at 60 fps
UXGA (1600 x 1200) at 60 fps
WUXGA (1920 x 1200) at 60 fps
USB-C (8-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
720p at 24/25/29.97/30/50/59.94/60 fps
480p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs:
- 6 x Combo XLR-1/4" TRS Analog Female
- 2 x 2RCA Analog Female
Input Audio Format:
- Analog: 48 kHz / 24-Bit
- LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Input:
- HDMI: 2-Channel (per Input)
- USB-C: 2-Channel
Output
Video Output Channels: 3
Video Outputs:
3 x HDMI Female
1 x USB-C Female
Output Video Format: HDMI / SDI
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/60 fps
720p 50/59.94/60 fps
Audio Outputs:
4 x XLR 3-Pin Mono Analog Male
1 x 2 RCA Stereo Analog Female
1 x 1/4" TRS Stereo Analog Female
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format
Analog: 48 kHz / 24-Bit
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Output
HDMI: 2-Channel (per Output)
USB-C: 2-Channel
Multiview Output: Yes
Monitor Output: 1 x HDMI
COMMON SECTION
Recording Media:
SDHC/SDXC card (sold separately)
USB Memory (sold separately)
*SDXC card is required for video recording.
Stream and Record formats:
Video Player File Format: MP4 (H.264, AAC), Average bit rate of 20,000 kbps or less, Maximum 1080/60p
Other Functions:
- Scene Memory (32 types)
- Macro Control (100 types)
- Sequencer Control (1000 types)
- Panel lock function
- EDID Emulator
- Auto Switching
- Auto Input Detect
- Smart Tally
- Remote Camera Control (Up to 6 units)
- External Rec Control
CONNECTIVITY
Other Connectors
USB HOST: USB A type (for USB flash drive)
USB STREAM: USB Type-C™ (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP 1, 2: 1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
DIRECT STREAM: RJ45, 1000BASE-TX (for Live Streaming and Remote Control)
OTHER
Bluetooth: Ver 5.0
Display Type: Backlite LCD (Colour/Touch screen)
Display Size 4.3"
Screen Resolution: Wide QVGA (480 x 272)
Power Supply: AC Adaptor
Current Draw: 2.3 A
Power Consumption: 55 W
Operation Temperature: 0 to 40 °C / 32 to 104 °F
Dimensions (W x D x H): 370 x 242 x 100 mm / 14.6 x 9.5 x 3.9"
Weight (excluding AC adaptor): 3.4 kg / 7 lbs 8 oz
Accessories:
- Startup Guide
- Leaflet "USING THE UNIT SAFELY"
- AC adaptor
- Power cord
