WD Music Kent Armstrong Handwound Convertible Tapped P-90 Pickup in Humbucker Case - Chrome

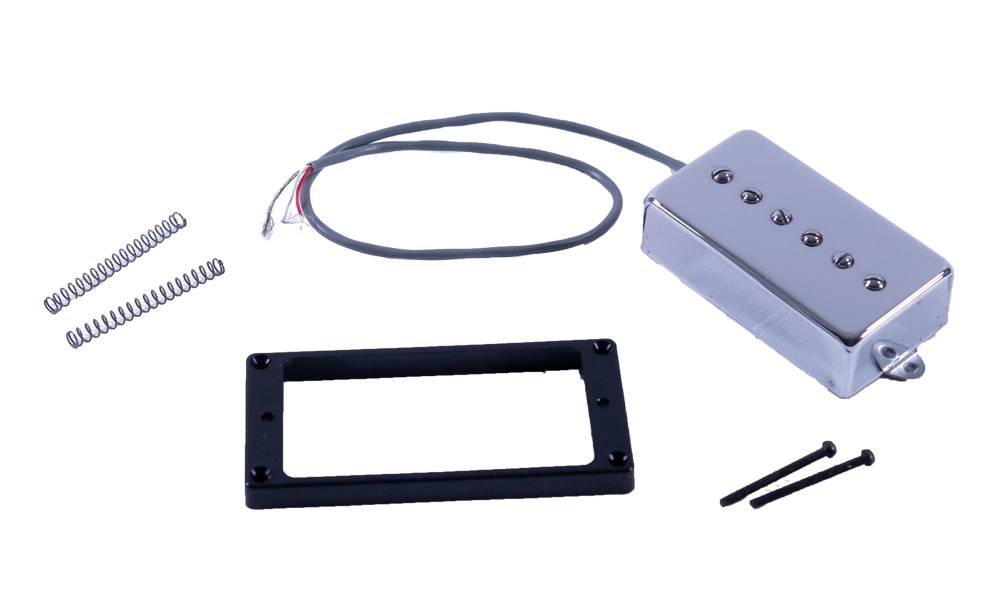

This design is hand-wound by KENT ARMSTRONG® at his USA facility. You get the single coil p90 girth packed into a standard sized metal humbucker cover. This allows complete interchangeability with all standard humbucker built-in/body mount designs. The coil is tapped along the winding length to allow selecting from two different output signals. String span 2 inches ctr/ctr of fillister head pole piece screws. Dual Alnico V magnets. Output can be selected as 13.5k, or 8.5k by following the included diagram. Wax potted to defeat coil oscillation. Mounting hardware and trim ring is included.

Specifications
• Magnet Type = Alnico 5
• D.C. Resistance = 13.5K/8.5K tap
• Pole Piece Spacing = 50mm
• Mount Type = Body or Pickguard
• Lead wire = 2 conductor included
