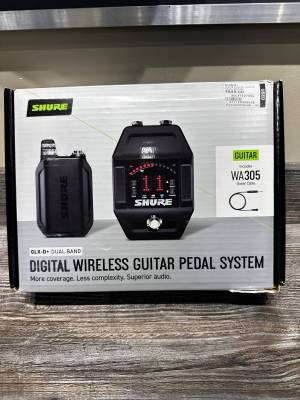

GLXD16+ DIGITAL WIRELESS GUITAR PEDAL SYSTEM
The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver.
The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack, and the GLXD6+ Guitar Pedal. Go wireless without compromising your tone or complicating your rig.
Features
• New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz
• Rugged metal chassis design that can be completely integrated into your pedalboard
• Compatible with 9V power supply in Pedalboards (minimum current: 400mA)
• Transmitter battery life monitoring via highly visible LED segment display
• Included Tuner with adjustable reference pitch (432 447 Hz)
• Easy powering from pedal boards
• New " input makes it easy to go from practice to live performance
• Output " connector for easy daisy-chain connection with other pedals
What's Included
1 - Guitar Pedal Receiver
1 - Bodypack Transmitter
1 - Power Supply
1 - SB904 Li-Ion Battery
1 - USB-C Cable
1 - WA305 Instrument Cable
Specifications
GLXD6+
Tuning Bandwidth Z3: 2400-2483.5 MHz and 5725-5850 MHz
Transmit Mode: Shure proprietary digital
RF Output Power: 10 mW E.I.R.P. maximum
Operating Temperature Range: 0°C (32°F) to 50°C (122°F)
Audio Frequency Response: 20 Hz 20 kHz
Dynamic Range: 120 dB, A-weighted
RF Sensitivity: -88 dBm, typical
Total Harmonic Distortion: 0.02%, typical
Guitar Tuner Accuracy: +/- 1 cent
Tuning Range: F#0 to C8
Maximum Input Level: -20 dBm
Channel Count: Up to 4 typical, 8 optimal
Power Requirements: 9v-15v, 400mA
Dimensions: 138mm x 95mm x 48mm (5.4 x 3.7 x 1.89)
Weight: 560g (19.75 oz)
Housing: Aluminum Alloy
GLXD1+
Power Requirements: SB904 battery
Battery Type: Rechargeable Li-Ion
Battery Life: Up to 11.5 hours
Dimensions: 115mm x 66.94mm x 28.51mm (4.5 x 2.6 x 1.1)
Weight: 153.1g (5.4 oz), without battery
Housing: Aluminum alloy, ABS plastic
Input Impedance: 900 k
TX INPUT: Connector: 4-pin male mini connector (TA4M)
Maximum Input Level: +8.4 dBV (7.5 Vp-p)
