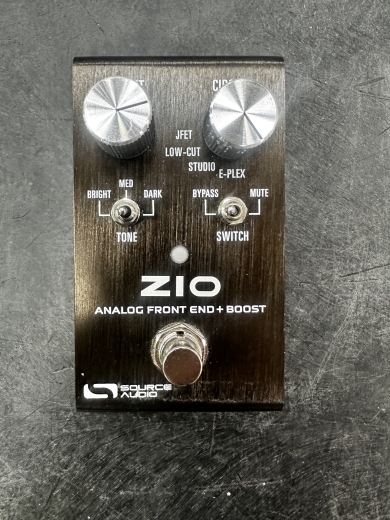

Source Audio ZIO Analogue Front End + Boost Pedal

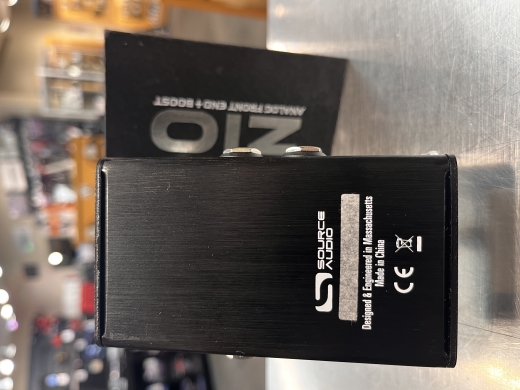

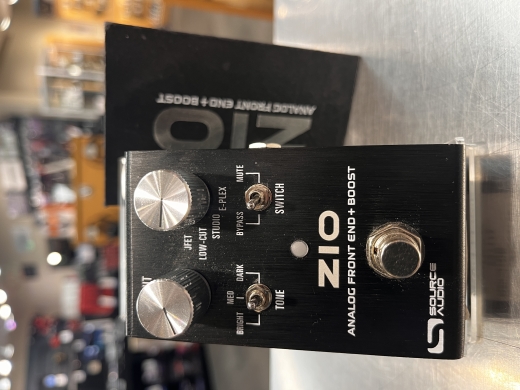

Additional Photos:
Product Videos :
Make Everything Sound Better
ZIO is an all-analog preamp/boost pedal that includes a choice of four distinct preamp circuits, each with up to +20dB of additional output boost. ZIO is Source Audio's first all-analog effects pedal and designed in collaboration with Christopher Venter, the owner and sole engineer at SHOE Pedals.ZIO is a deceptively flexible unit that can serve many different purposes at various places in your signal path. Use it at the front of your chain of effects to shape the rest of your outgoing tone, after your drive pedals as an overall tone sweetener or clean volume boost, or at the the end of your pedalboard to drive a long cable run or as a restorative device to recreate the sound of your guitar going directly into the input of your amplifier. You can also use the ZIO in your amp's effects loop if you want to drive your power amp even harder, or to compensate for a level mismatch between two channels.
ZIO's four distinct preamp circuits:
JFET offers a completely transparent signal boost with zero coloring or distortion.
LOW-CUT reduces "tubby" bottom-end for a tighter sound with added headroom.
STUDIO finds inspiration from the time-honored "Pultec Trick," a studio technique that adds clarity by cutting the "mud frequencies" and adding mid-range articulation.
E-PLEX captures the focused and subtle grit of the preamps found in vintage Echoplex Tape Delay units.
For even more control over your sound, the three toggle positions replicate different lengths of cable. Select the BRIGHT position to introduce a low capacitive load and the most treble content. Selecting MED provides additional capacitance and produces the effect of a medium length of cable (roughly 15 feet). Selecting the DARK mode gives the effect of a longer cable or coils cable and is useful for taming excessive brightness or providing a stylistic voicing choice.
Features
• Circuit knob with four distinct preamp circuits
• High quality components and Burr Brown JFET op-amps
• Output control with up to +20dB of signal boost
• 3-way Tone toggle switch with bright/medium/dark cable capacitance voicing
• 2-way Footswitch Action toggle switch (with always-on "Mute" option)
• Extra Tuner/Line Output
• True Bypass
• Input Impedance: 1 MΩ
• Output Impedance: 150Ω
• Power Consumption: 9V DC center negative @ 20mA
• Brushed anodized aluminum housing
• Dimensions (L x W x H): 4.1" x 2.36" x 2.22" (10.5cm x 6cm x 5.65cm) (including knobs)
