Shure GLXD+ Digital Wireless Bodypack System w/ WL93 Lavalier
Additional Photos:
Product Videos :
GLXD14+ Digital Wireless Bodypack System w/WL93 Lavalier
The new GLX-D+ Dual Band Wireless Presenter System features the miniature omnidirectional WL93 lavalier microphone for spoken word applications and the GLXD4+ tabletop receiver.
Features
• New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz
• Automatic Frequency Management for reliable, dropout-free audio
• Smart Rechargeability using Lithium-Ion SB904 batteries with up to 12 Hours Runtime
• Integrated charging port on receiver front
• Accurate Battery Metering in hours/minutes on display
• Up to 8000 Hours of regular use per SB904 battery (comparable up to 2000 alkaline batteries!)

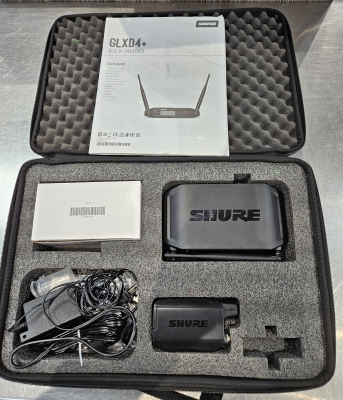

What's Included
1 - Tabletop Receiver
1 - Bodypack Transmitter
1 - WL93 Omnidirectional Lavalier Microphone
1 - Power Supply
1 - SB904 Li-Ion Battery
1 - Carrying Case
Specifications
GLXD4+ Receiver
Tuning Bandwidth Z3: 2400-2483.5 MHz and 5725-5850 MHz
Transmit Mode: Shure proprietary digital
RF Output Power: 10 mW E.I.R.P. maximum
Operating Temperature Range: 0°C (32°F) to 50°C (122°F)
Audio Frequency Response: 20 Hz 20 kHz
Dynamic Range: 122 dB, A-weighted
RF Sensitivity: -88 dBm, typical
Total Harmonic Distortion: 0.02%, typical
Maximum Input Level: -20 dBm
Channel Count: Up to 4 typical, 8 optimal
Power Requirements: 14.5 V 17 V, 600 mA
Dimensions (Antennas Folded): 182.82mm x 121.97mm x 40.3mm (7.2 x 4.8 x 1.6)
Weight: 310g (10.9 oz)
Housing: PC/ABS
Gain Adjustment Range: -20 to 40 dB, 1 dB increments
Phantom Power Protection: Yes
GLXD1+ Bodypack
Power Requirements: SB904 battery
Battery Type: Rechargeable Li-Ion
Battery Life: Up to 11.5 hours
Dimensions: 115mm x 66.94mm x 28.51mm (4.5 x 2.6 x 1.1)
Weight: 153.1g (5.4 oz), without battery
Housing: Aluminum alloy, ABS plastic
Input Impedance: 900 k
TX INPUT: Connector: 4-pin male mini connector (TA4M)
Maximum Input Level: +8.4 dBV (7.5 Vp-p)
