EVH Wolfgang Special QM, Baked Maple Fingerboard - Purple Burst
Additional Photos:
Free Setup Included
In addition to the benefits of the Performance Warranty, we offer one complimentary setup with the purchase of a new or used guitar, to be redeemed at any Long & McQuade location within the initial free-warranty period (1-year on new, 90-days on used).
This Includes:
- Restring (Strings not included).
- Tighten and lubricate all hardware.
- Clean and test electronics.
- Replace battery if needed (Battery not included).
- Adjust or rehang loose wiring.
- Clean and condition the fingerboard.
- Fret polish to remove minor scratches, pits and corrosion.
- Cleaning of the entire instrument.
- Adjust truss-rod to correct neck relief.
- Adjust saddle radius to match fingerboard.
- Adjust action at bridge.
- File nut slots for proper string movement.
- Adjust intonation.
- Adjust tremolo bridge setting to player's preference.
- Add/remove trem-springs as needed (Parts not included).
- Adjust pickup balance.
- Full inspection and play test.
Long & McQuade Performance Assurance
Buying a new instrument is an exciting event and we want to ensure that every instrument we sell comes exactly how the manufacturer intended it to be. That is why Long & McQuade performs a quality control check for every stringed, brass, and woodwind instrument over $99 ordered online at Long-McQuade.com.
Our team of experienced staff will unbox your instrument and perform a detailed inspection to ensure it leaves our warehouse looking and playing great with our QC card signed and dated for your peace of mind.
We work hard to source the best instruments from around the world from the finest brands. It is important to us that you are completely satisfied with your new instrument purchase from day one onwards.
Stringed Instrument Performance Assurance Checklist
Unlike our free set-up, which is included within the first year of purchase, this process is done to have the instrument set to the factory specs rather than to each player's feel or preferences.
We look after the following:
- Inspect finish and hardware.
- Check electronics to make sure everything is in working order. Check batteries on active pickups.
- Inspect strings.
- Inspect frets and fretboard.
- Check truss rod. Adjust for bow and relief.
- Tune instrument to manufacturer's specified tuning.
- Check/set action height.
- Stretch strings and re-tune instrument and ensure machine heads are working well.
- Check for fret buzz by playing every note.
- Check/set intonation.
- Check/set pickup height.
- Cleaning and professional repacking.

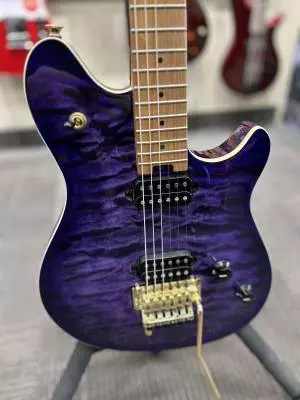

The Wolfgang Special QM features a basswood body with an arched quilt maple top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius caramelized maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.
Specs
Series: Wolfgang® Special
Body Material: Basswood
Body Finish: Gloss Urethane
Neck: Quartersawn Caramelized Maple with Graphite Reinforcement, Wolfgang® Backshape
Neck Finish: Hand-Rubbed Satin Urethane
Fingerboard: Caramelized Maple, 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Frets: 22, Jumbo
Position Inlays: Black Dot
Nut (Material/Width): Floyd Rose® R2 Locking, 1.625" (41.3 mm)
Tuning Machines: EVH®-Branded Gotoh®
Scale Length: 25.5" (64.77 cm)
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Pickups: Direct Mount EVH® Wolfgang® Humbucking (Bridge), Direct Mount EVH® Wolfgang® Humbucking (Neck)
Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
Control Knobs: Black Plastic with White Indicator
Hardware Finish: Gold
Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
Specifications
| Active EQ: | No |
| Body Cap Material: | Arched Quilt Maple |
| Body Colour: | Purple Burst |
| Body Finish: | Gloss Urethane |
| Body Material: | Basswood |
| Body Shape: | Wolfgang |
| Body Type: | Solid |
| Bridge Design: | EVH Branded Floyd Rose Locking Tremolo w/ EVH D-Tuna |
| Bridge Type: | Tremolo |
| Case/Gigbag: | Purchased Separately |
| Celebrity Model: | EVH Wolfgang |
| Controls: | 1 Volume w/ Treble Bleed Circuit + 1 Tone |
| Country of Origin: | Mexico |
| Features: | Arched top/ Attractive Binding /Color Matched Wolfgang Headstock/ Floyd Rose Retainer Bar String Tree |
| Fingerboard: | Maple -Baked |
| Fingerboard Inlay: | Dots - Black |
| Fret Profile: | Jumbo |
| Fretboard Radius: | Compound 12-16"/304.8-406.4 mm |
| Hardware Finish: | Gold |
| Included: | Tremolo Arm, Hex Keys & User Manual |
| Instrument Size: | Full |
| Neck Body Join: | 4 Bolt w/ Graphite Reinforcement |
| Neck Body Join-Fret: | 17th |
| Neck Finish: | Satin Urethane – Hand Rubbed |
| Neck Material: | Maple – Quartersawn Baked |
| Neck Shape: | Wolfgang Backshape |
| Number of Frets: | 22 |
| Number of Pickups: | 2 |
| Number of Strings: | 6 |
| Nut Material: | Floyd Rose R2 Locking |
| Nut Width: | 1.625 " / 41.3 mm |
| Orientation: | Right |
| Pickup Brand: | Direct Mount EVH Wolfgang Humbucking |
| Pickup Configuration: | HH |
| Pickup Type: | Humbucker(s) |
| Scale Length: | 25.5" / 648 mm |
| String Gauge: | .009 - .042 |
| String Type: | Steel |
| Switching: | 3-Position Toggle |
| Tailpiece: | Floyd Rose Locking Tremolo |
| Tuning Machines: | EVH Branded Gotoh |
Q & A
Reviews
Protect your investment with the Long & McQuade Performance Warranty
A warranty can be a very important factor when making a buying decision. Because repairs can be very expensive in terms of parts and labour costs, manufacturers usually only provide one year limited warranties that generally only cover items that malfunction due to a manufacturer’s defect. With an important purchase such as a musical
instrument or piece of studio gear, however, many people want to have the peace of mind in knowing that their investment will be protected should the product no longer be performing at 100%.
Because of this, Long & McQuade provides our customers with a FREE one-year Performance Warranty on most of our products. The Long & McQuade Performance Warranty supplements the manufacturer’s warranty to ensure that our customers receive complete “no hassle” warranty coverage within their first year.
How does the Long & McQuade Performance Warranty differ from most manufacturers' warranties?
- Performance Guarantee: Normal wear and tear is covered, so your product will be performing as well as the day you purchased it for the entire duration of the coverage. Band and Orchestral Performance Warranty does not include replacing pads or cleaning for woodwind instruments, unless deemed necessary by our repair staff. Ultrasonic cleaning for brass instruments will be provided if deemed necessary by our repair staff, but is not routinely offered under the Performance Warranty.
- Product Replacement: If your product cannot be fixed or costs too much to fix, we will replace it with the equivalent model for no additional charge. If this is not possible, a full refund will be provided.
- No Lemon Policy: Your product will be replaced should the same problem occur multiple times.
- Convenient: Easy drop off and pick up of the product at any Long & McQuade location.
- Guitar Setup: Guitars purchased at Long & McQuade come with 1 free setup, to be redeemed within 1 year for new guitars and 90 days for used guitars.
- Loaners Available: A loaner product may be given while the product is being repaired.
- Power Surge Protection: Your product is covered even if damaged from a power surge.
- Accessory Coverage: Any peripheral devices or accessories that come with your product (i.e. foot pedal, case) are also covered.
- Commercial Use Coverage: Music and recording professionals who purchase gear for “heavy-use” commercial purposes will still be covered.
Long & McQuade reserves the right to restrict the purchase of additional years of Performance Warranty. Used products come with a 3-month Long & McQuade Performance Warranty. Some products (i.e. computers, software, cymbals and other items) are covered only by the manufacturer‘s warranty. Consumables (i.e. strings, reeds, drum sticks, batteries, tubes, cross faders) are excluded as they are designed to be replaced. Cosmetic Damage, Accidental Damage, or problems caused by Humidity or Temperature Issues are not covered. Speakers damaged by overpowering are generally not covered. Our coverage does not provide compensation for loss of use. As of June 2018 the Performance Warranty is no longer transferable. The warranty is only valid in Canada.
Purchasing additional years of coverage
Some manufacturers provide warranties for longer than 1 year; however, these are usually limited warranties that do not provide the same coverage as the Long & McQuade Performance Warranty. Customers interested in more complete and convenient (but not necessarily longer) coverage are still able to purchase additional years of the Performance Warranty.
If you are interested in receiving this coverage for longer than one year, you have the option of purchasing additional years of the Performance Warranty. The pricing is as follows:
- NEW products: Starting at 4% of the current new selling price to double the warranty from 1 year to 2 years. Starting at 4% for each additional year.
- USED products: Starting at 4% of the current new selling price to increase the warranty from 3 months to 1 year. Starting at 4% for each additional year.
- GUITARS: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year. $45 maximum. An additional free setup is not included with additional purchased years of Performance Warranty.
- BAND and ORCHESTRAL instruments: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year.
