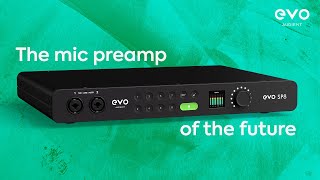

Audient EVO SP8 8-Channel Smart Preamp with AD/DA
Product Videos :
The perfect partner for your audio interface
Bigger sessions demand more channels and expanding your existing audio interface via ADAT might be the most cost effective solution to scale up your studio. EVO SP8 provides eight mic/line inputs, eight line outputs and 2 x ADAT connections, giving you enough I/O firepower to easily tackle multi-mic sessions like recording drums, or taking on a full band.
Better converters = better audio
In the studio, sound is everything and EVO SP8's high performance AD/DA converters use 32-bit technology to make sure you hear your audio accurately at all times, whether you're recording music or sending audio to your favourite outboard gear and back when mixing. Better converters mean better audio - helping you make creative decisions confidently, identify issues and improve your overall recording and mixing game.
A total gain-changer
Make recording drums and larger sessions easy with Smartgain. Automatically set the gain for all eight channels at once with a simple touch of a button. Powered by the lightning quick Smartgain algorithm, Smartgain uses advanced peak analysis to automatically analyse, adjust and set your gain to the perfect levels - all in less than 20 seconds! Now it's up to you to figure out what to do with all that time you're saving.
Features
• 8 x EVO Mic Preamps
• 2 x JFET Instrument Inputs
• 8 x Line Outputs
• 2 x ADAT Inputs
• 2 x ADAT Outputs
• Class Leading AD/DA Converters
• Multi-Channel Smartgain
• "EVO Motion UI" Control System
• High-Res LCD Screen
• One Knob Centralised Control
• Ultra Clear Metering
• Input/Output Control
• Channel Status Indication
• Optional Rack Ears
• Word Clock Input
• 32bit / 96kHz
Specifications
Microphone Preamplifier
Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48v +/-4v @ 10mA/Channel
Mic EIN: -127.5dB
CMRR: 80dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): 3kΩ Balanced
Input Impedance (Line) 10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: -105dBu @ 1kHz -103 @ 10kHz
THD+N @ 0dBu (1kHz): 0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I Inputs
D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 500k
Frequency Response: +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): 0.1%
SNR: 100dB
1/4" Jack: TIP (Hot) & SLEEVE (Shield)
ADC
Digital Reference Level: 0dBFS = +10.5dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -125dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): 0.001%
Dynamic Range: 112.5dB A-Weighted
Line Outputs
Maximum Output Level: 12dBu
Digital Reference Level: 0dBFS = +12dBu
Output Impedance: 50Ω
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): 0.006%
Dynamic Range: 117dB A-weighted
1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Dimensions
Unit: 355 x 255 x 53 mm
