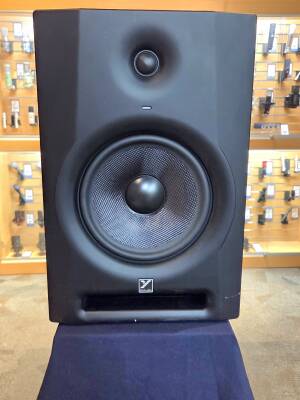

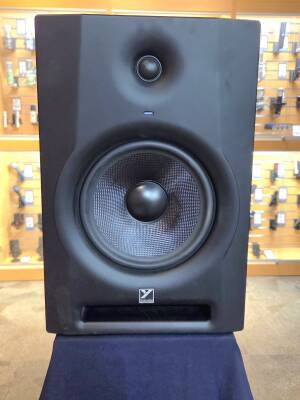

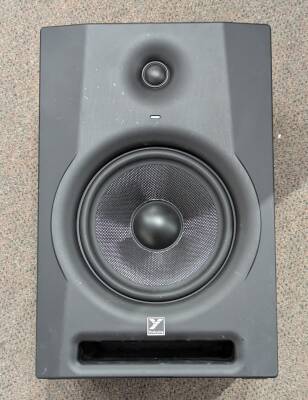

Yorkville Sound YSM8 Series 2 100 Watt Powered Studio Monitor - 8'' (Single)
Additional Photos:

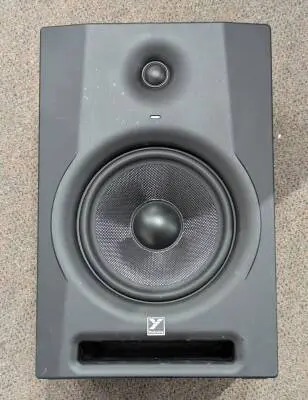

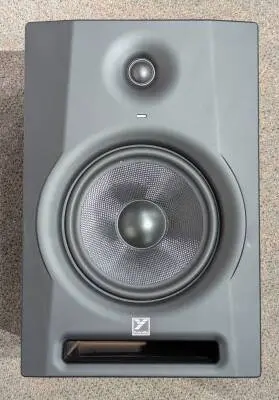

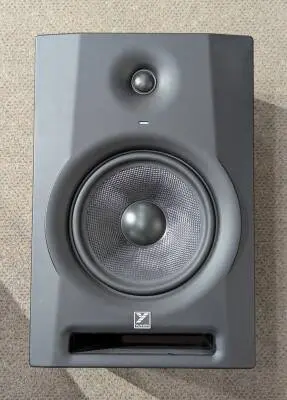

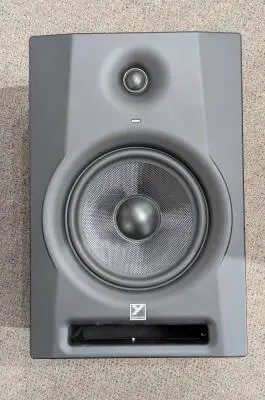

The YSM8-2 features 1-inch black-silk diaphragm neodymium dome tweeters. These tweeters blend seamlessly into the specially designed low-diffraction waveguide which is integrated into the front baffle. The edges of the wave-guide perfectly couple the tweeter with the woofer, reducing sonic anomalies normally associated with driver/tweeter proximity. The fibre-reinforced composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Integrated DSP is utilised to deliver transparent signal processing and bi-amplification has been optimised for each driver. The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.
Features
• 8-inch low frequency driver; 1-inch silk dome tweeter

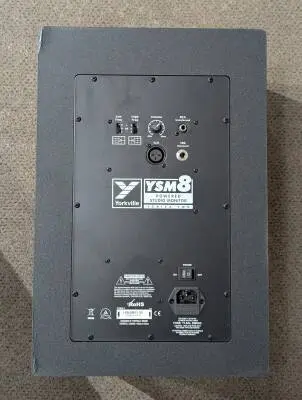

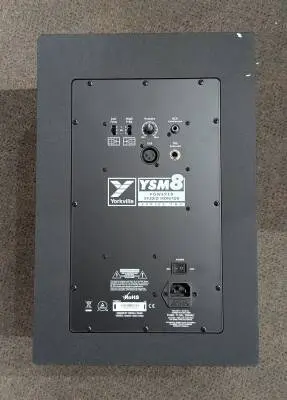

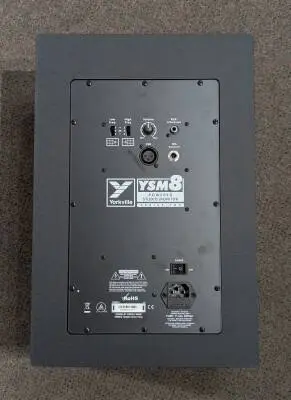

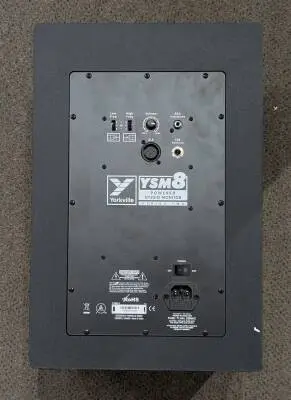

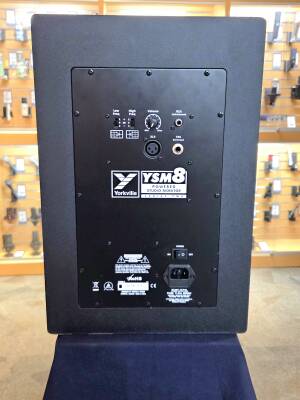

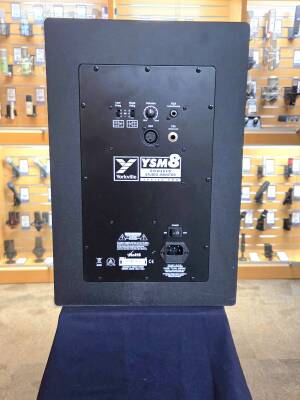

• Balanced XLR and 1/4- inch TRS inputs
• Unbalanced RCA input
• High and Low Frequency Adjust Controls
• Built in HF and LF limiters
• Volume Control
Specifications
Active or Passive: Active
Power (watts): 100
Biamp / Configuration: Yes-Two Way
Max SPL (dB): 105
Frequency Response: (Hz +/- 3dB)40Hz-22kHz
Crossover Frequency: (Hz)2.1 kHz
HF Driver(s): Neo Soft dome
HF Program Power (watts)25
LF Program Power (watts)75
Power Cable included
Power Switch: Back, with LED on Baffle
Power Consumption (typ/max): 60W
Inputs - 1/4-inch Jacks1
Inputs - XLR1
Inputs RCA1
Level Controls: 1
EQ Controls: 2
LED Indicators: Power on front
Enclosure Materials: mdf
Baffle Material: MDF/ABS
Covering / Finish: Textured Vinyl
Dimensions: 10.8 x 10.25 x 16.5" (27.43 x 26.04 x 41.91 cm)
Weight: 21 lbs (9.5 kg)
