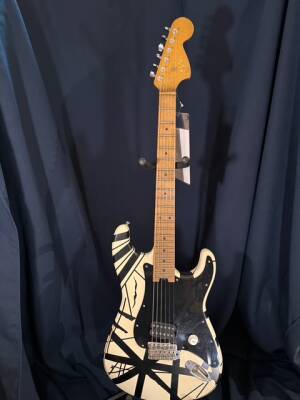

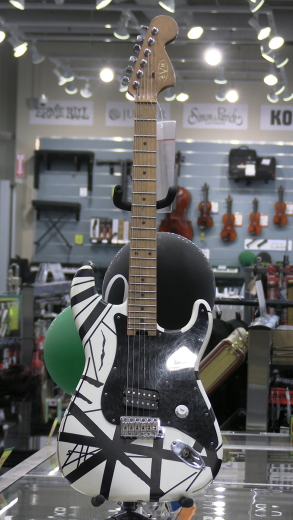

EVH Striped Series '78 Eruption, Maple Fingerboard - White with Black Stripes Relic
Additional Photos:
Free Setup Included
In addition to the benefits of the Performance Warranty, we offer one complimentary setup with the purchase of a new or used guitar, to be redeemed at any Long & McQuade location within the initial free-warranty period (1-year on new, 90-days on used).
This Includes:
- Restring (Strings not included).
- Tighten and lubricate all hardware.
- Clean and test electronics.
- Replace battery if needed (Battery not included).
- Adjust or rehang loose wiring.
- Clean and condition the fingerboard.
- Fret polish to remove minor scratches, pits and corrosion.
- Cleaning of the entire instrument.
- Adjust truss-rod to correct neck relief.
- Adjust saddle radius to match fingerboard.
- Adjust action at bridge.
- File nut slots for proper string movement.
- Adjust intonation.
- Adjust tremolo bridge setting to player's preference.
- Add/remove trem-springs as needed (Parts not included).
- Adjust pickup balance.
- Full inspection and play test.
Long & McQuade Performance Assurance
Buying a new instrument is an exciting event and we want to ensure that every instrument we sell comes exactly how the manufacturer intended it to be. That is why Long & McQuade performs a quality control check for every stringed, brass, and woodwind instrument over $99 ordered online at Long-McQuade.com.
Our team of experienced staff will unbox your instrument and perform a detailed inspection to ensure it leaves our warehouse looking and playing great with our QC card signed and dated for your peace of mind.
We work hard to source the best instruments from around the world from the finest brands. It is important to us that you are completely satisfied with your new instrument purchase from day one onwards.
Stringed Instrument Performance Assurance Checklist
Unlike our free set-up, which is included within the first year of purchase, this process is done to have the instrument set to the factory specs rather than to each player's feel or preferences.
We look after the following:
- Inspect finish and hardware.
- Check electronics to make sure everything is in working order. Check batteries on active pickups.
- Inspect strings.
- Inspect frets and fretboard.
- Check truss rod. Adjust for bow and relief.
- Tune instrument to manufacturer's specified tuning.
- Check/set action height.
- Stretch strings and re-tune instrument and ensure machine heads are working well.
- Check for fret buzz by playing every note.
- Check/set intonation.
- Check/set pickup height.
- Cleaning and professional repacking.

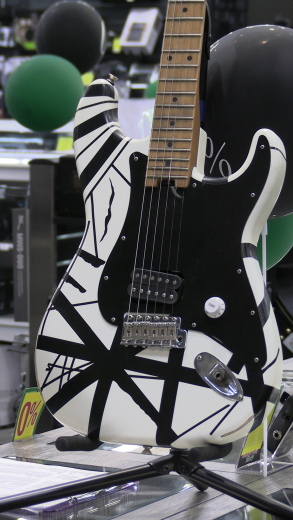

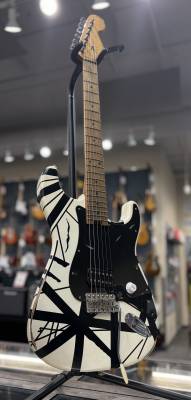

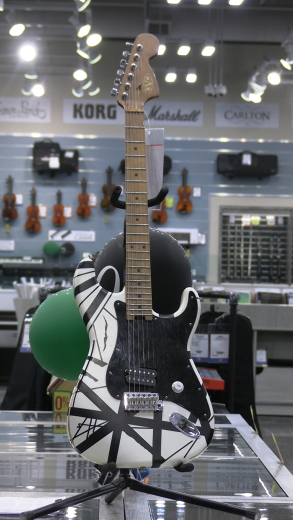

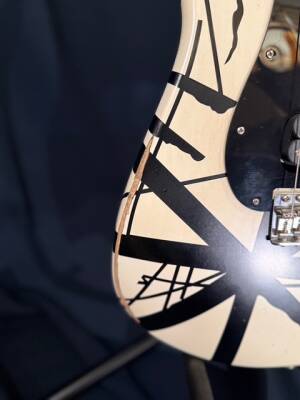

The all-new EVH Striped Series '78 Eruption guitar combines many of Van Halen's famed mods along with modernized features and a relic treatment.

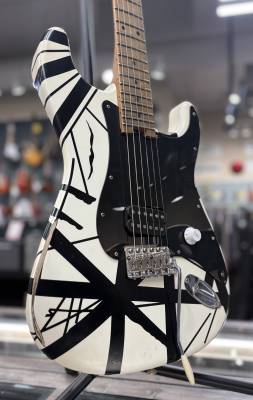

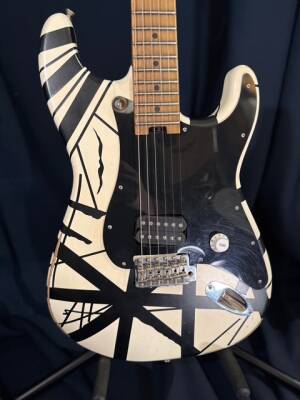

The Stratocaster-style body sports Eddie's famed white-and-black-striped paint job and has been paired to a quartersawn maple neck with a hand-rubbed satin urethane back finish. The 12"-16" compound radius maple fingerboard with 22 jumbo frets was designed for fast and furious playing styles with maximum comfort, while a heel-mount truss rod wheel makes for time-saving neck adjustments.
A single EVH Wolfgang humbucking bridge pickup provides classic Eddie Van Halen guitar tone - from crystal cleans to fat and rich mids and lows, while the brass nut and six-saddle vintage Fender Stratocaster synchronized tremolo bridge with a 43mm brass block allow for authentic EVH tone.

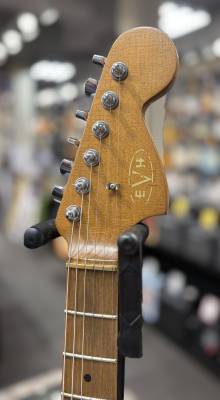

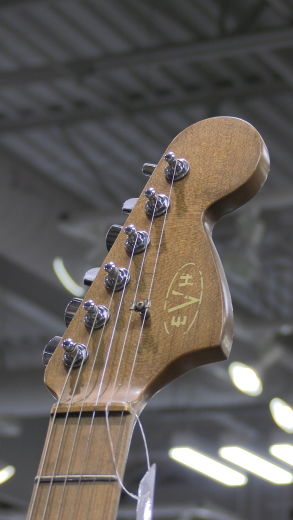

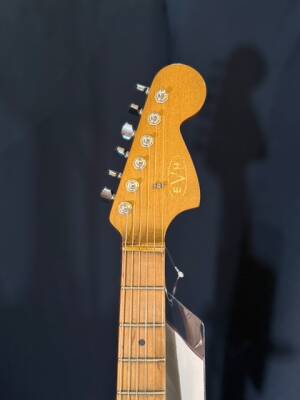

Other features include a skirted white Strat-style volume control knob (labeled "tone") with 500K EVH Bourns low friction pot and treble bleed circuit, black pickguard, chrome hardware, oversized strap buttons, EVH neck plate and larger, '70s-style licensed Fender Strat headstock with gold EVH logo.
Specifications
SERIES: Striped Series
BODY MATERIAL: Basswood
NECK: Quartersawn Maple
NECK FINISH: Hand-Rubbed Satin Urethane
FINGERBOARD: Maple, 12"-16" Compound Radius (304.8 mm to 406.4 mm)
FRETS: 22, Jumbo
POSITION INLAYS: Black Dot
NUT (Material/Width): Brass, 1.6875" (42.86 mm)
TUNING MACHINES: EVH-Branded Gotoh
SCALE LENGTH: 25.5" (648 mm)
BRIDGE: 6-Saddle Vintage-Style Fender Strat Synchronized Tremolo with 43mm Brass Block
PICKUPS:
Bridge: EVH Wolfgang Humbucking
Neck:
PICKUP SWITCHING: None
CONTROLS: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit
CONTROL KNOBS: White Stratocaster-Style Skirt (Labeled "Tone")
HARDWARE FINISH: Reliced Chrome
STRINGS: EVH Nickel Plated Steel (.009-.042 Gauges)
CASE/GIG BAG: EVH Striped Series Gig Bag (P/N 022-7742-100) Included; Optional EVH Striped Hardshell (P/N 022-6100-506)
Specifications
| Active EQ: | No |
| Body Colour: | White w/ Black Stripes Relic |
| Body Finish: | Lacquer |
| Body Material: | Basswood |
| Body Shape: | Other |
| Body Type: | Solid |
| Bridge Design: | Fender Vintage-Style 6-Saddle Strat Synchronized Tremolo w/ 43mm Brass Block |
| Bridge Type: | Tremolo |
| Case/Gigbag: | Gigbag Included |
| Celebrity Model: | EVH (Eddie Van Halen) |
| Controls: | Volume |
| Country of Origin: | Mexico |
| Electronics: | Treble Bleed Circuit |
| Features: | Skirted Strat-style volume knob/ '70s-style licensed Fender Strat headstock with gold EVH logo |
| Fingerboard: | Maple |
| Fingerboard Inlay: | Dots - Black |
| Fret Profile: | Jumbo |
| Fretboard Radius: | Compound 12-16"/304.8-406.4 mm |
| Hardware Finish: | Chrome Relic |
| Included: | Tremolo Arm, Hex Keys & User Manual |
| Instrument Size: | Full |
| Neck Body Join: | 4 Bolt w/ Graphite Reinforcement |
| Neck Body Join-Fret: | 16th |
| Neck Finish: | Satin Urethane – Hand Rubbed |
| Neck Material: | Maple - Quartersawn |
| Neck Shape: | EVH Modified "C" Backshape |
| Number of Frets: | 22 |
| Number of Pickups: | 1 |
| Number of Strings: | 6 |
| Nut Material: | Brass |
| Nut Width: | 1.6875" / 42.86 mm |
| Orientation: | Right |
| Pickup Brand: | Direct Mount EVH Wolfgang Humbucking |
| Pickup Configuration: | H |
| Pickup Type: | Humbucker |
| Scale Length: | 25.5" / 648 mm |
| String Gauge: | .009 - .042 |
| String Type: | Steel |
| Switching: | Not Applicable - Single Pickup |
| Tailpiece: | Synchronized Tremolo |
| Tuning Machines: | EVH Branded Gotoh |
