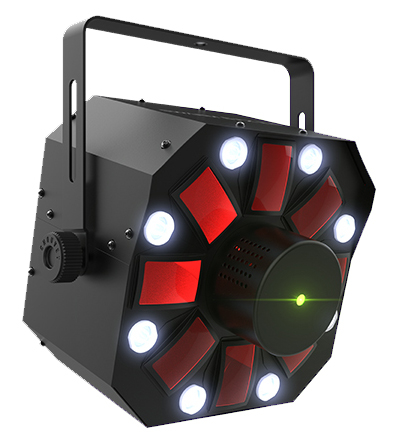

Chauvet DJ Swarm 5 FX ILS
Additional Photos:
Swarm 5 FX ILS also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Flexibility is even greater with automated and sound-activated programs, or Master/Slave and DMX modes and separate colour and program control.
Features
• 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Laser projects thousands of red and green laser beams
• Operation allows for separate colour and program control
• Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes
• Save time running cables and extension cords by power linking multiple units
• Fits best inside the CHS-40 VIP gear bag
Includes
- Swarm 5 FX ILS
- Power cord
- User manual
Specifications
DMX Channels: 9
DMX Connectors: 3-pin XLR
Light Source: (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
Strobe Rate: 0 to 20 Hz
Beam Angle: (strobe): 17°
Field Angle: (strobe): 35°
Coverage Angle: (laser): 100° (Swarm): 65°
Illuminance: (strobe): 823 lux @ 2 m
Power Linking: 15 units @ 120 V; 26 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz 62 W, 0.3 A @ 230 V, 50 Hz
Weight: 9.8 lb (4.5 kg)
Size: 9.75 x 11.7 x 12.2" (248 x 298 x 310 mm)
Approvals: CE, FDA, RoHS, UKCA
Classified per EN/IEC 60825-
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice
