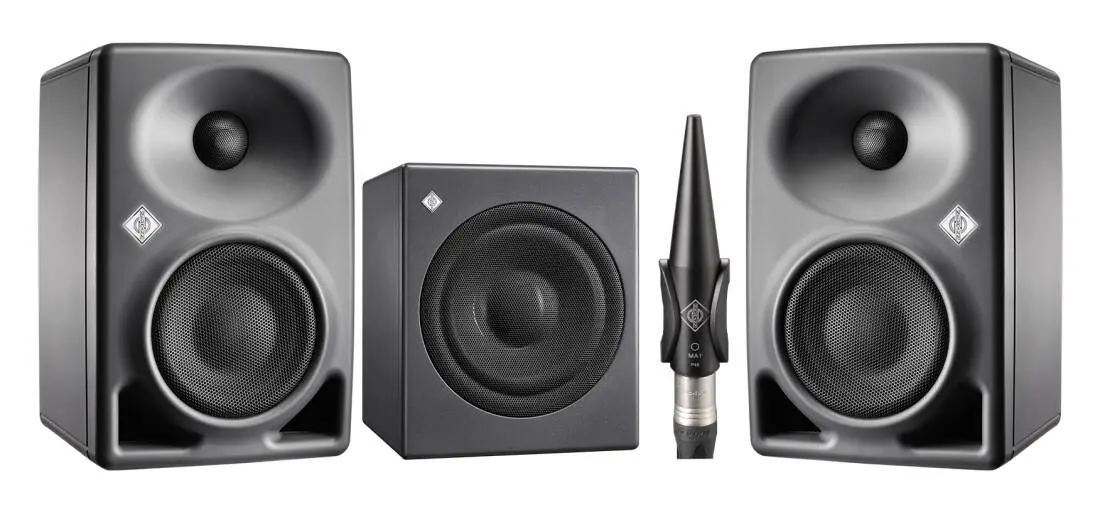

Neumann Monitor Alignment Kit 3 with KH 80 Monitors, Subwoofer and MA 1 Microphone
Additional Photos:
Neumann's Automatic Alignment is a dedicated tool for stereo sets of KH 80 DSP monitors with or without the KH 750 DSP as well as two non DSP-based KH-Line monitors connected to the analog outputs of a KH 750 DSP subwoofer. Unlike conventional correction software it is an integrated solution with novel algorithms, jointly developed with the Fraunhofer Institute for Integrated Circuits (IIS) specifically for Neumann studio monitors.
No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered monitors themselves. As a unique benefit, the software not only optimises the amplitude response but also optimises the phase. This provides highest accuracy in terms of tonality and impulse reproduction.
Using the KH 750 DSP subwoofer, stereo sets of analog KH-Line monitors, too, can be used with the Automatic Monitor Alignment Software. The KH 750 DSP has enough processing power to align the entire system including the two analog loudspeakers connected to its outputs. Additionally, KH 120, KH 310, and KH 420 loudspeakers profit from phase linearization of their built-in crossover filters! The result is increased clarity, a dry bass, and a time-correct, more accurate depiction of reverbs and acoustic spaces.
Microphone Specifications
Acoustical operating principle: Pressure transducer
Directional Pattern: Omnidirectional
Frequency Range: 20 Hz - 20 kHz
Sensitivity at 1 kHz into 1 kohm: 30 mV/Pa -30 dBV +/- 3 dB uncalibrated | 30 mV/Pa -30 dBV +/- 0,5 dB Calibrated (via software)
Rated Impedance: 50 Ohms
Rated load impedance: 1000 Ohms
Equivalent noise level, CCIR): 39 dB
Equivalent noise level, A-weighted): 27 dB-A
Maximum SPL for THD 0.5%): 132 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL): 55 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 67 dB
Maximum output voltage: 10 dBu
Supply voltage (P48, IEC 61938): 48 V + 4 V
Current consumption (P48, IEC 61938): 3 mA
Matching connector: XLR3F
Weight: 37 g
Diameter: 23 mm
Length: 117 mm
Operating conditions: 0 °C - +70 °C (32 °F - 158 °F); max. 90 % at +20 °C
Transport/storage conditions: −20 °C - +70 °C (−4 °F - 158 °F); max. 90 % at +20 °C
Includes
- 1x SG 105 - Stand mount
- 1x Quick Start Guide
- 1x Safety Guide
- 1x MA 1 - Automatic Monitor Alignment Software
- 2x KH 80 DSP - Studio Monitor
- 1x KH 750 DSP - Subwoofer
- 1x MA 1 - Automatic Monitor Alignment
Hardware Requirements
- 1 pair of KH DSP loudspeakers or 1 KH 750 DSP subwoofer in combination with a pair of analog (non-DSP based) KH loudspeakers
- Neumann MA 1 measurement microphone
- Computer (Windows 10 64 Bit and macOS 10.13, 10.14 or 10.15)
- Audio interface with balanced analog input with 48 V phantom power and 2 balanced analog outputs or digital AES3 output (only with KH 750 DSP)
- Network switch
Software Requirements
- Operating system: Windows 10 64 Bit and macOS 10.13, 10.14 or 10.15
- Neumann Automatic Monitor Alignment software
- ASIO driver (for Windows)
