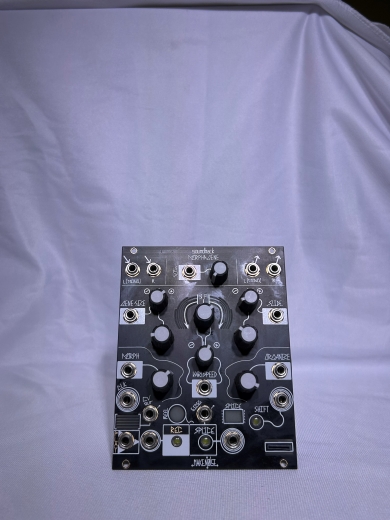

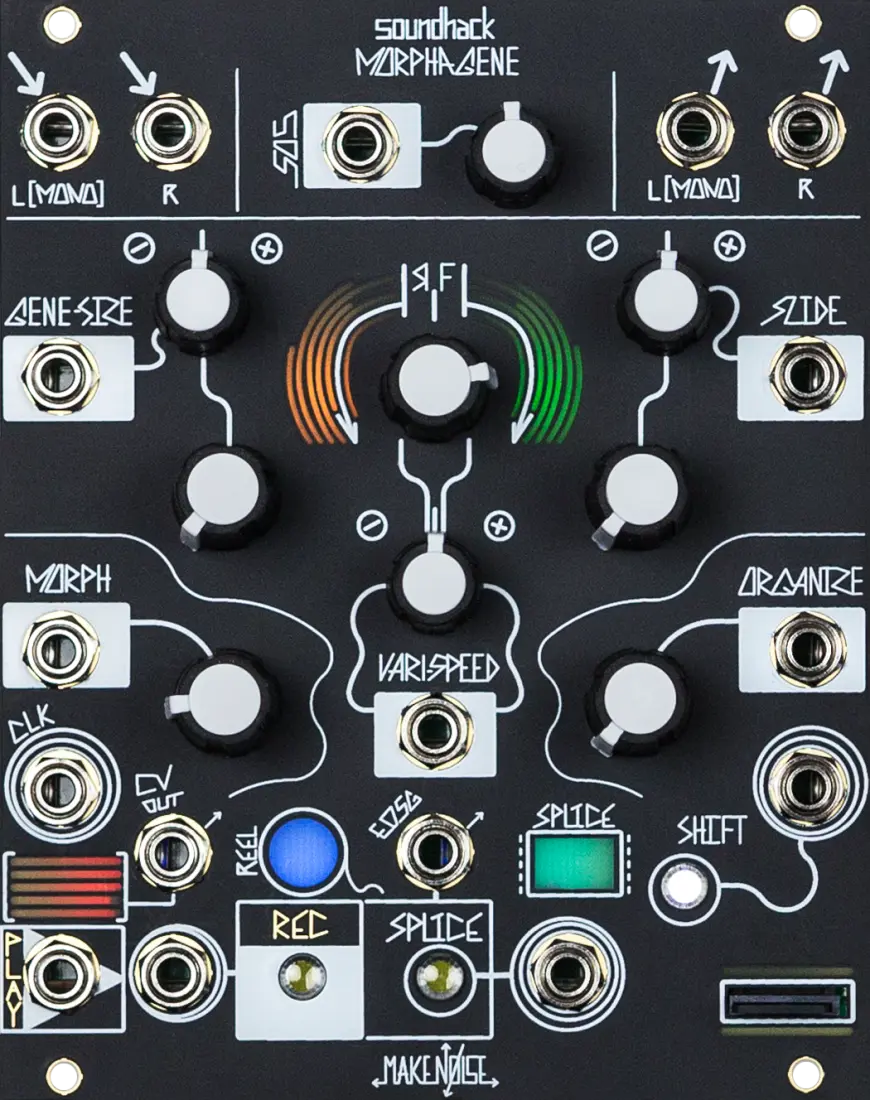

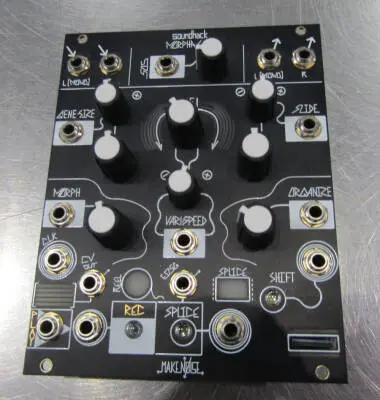

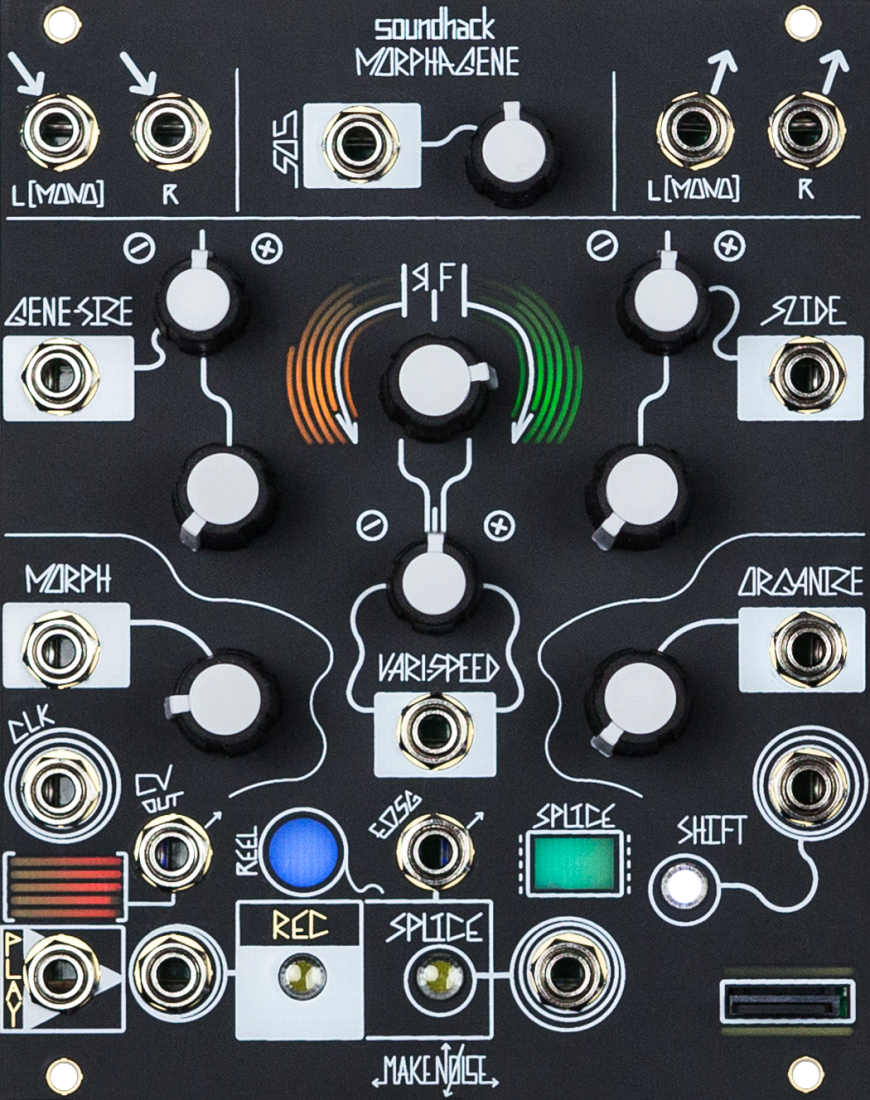

Make Noise Morphagene Module

The Morphagene music synthesizer module is a next generation tape and microsound music module that uses Reels, Splices and Genes to create new sounds from those that already exist. Search between the notes to find the unfound sounds.

A few of the Morphagene's most basic uses: Splice recorded audio and jumble it using ORGANIZE. Manipulate playback speed and direction with Vari-Speed. Granularize with Gene-Size and Slide. Layer or Stagger Genes using MORPH. Undertake iterative music processes by recording manipulations and overdubs into new Splices, like having two machines (one for Playback and modulations, one for Record). Process sound in real time using Time Lag Accumulation. Utilize envelope following CV OUT and EOSG Trigger to engage Morphagene in conversation with the rest of your modular system. Stretch and squash sound with Clock input.

Features
• NEW revision Morphagene firmware MG204 adds great functionality. Download today!
• Voltage control over all sound manipulation parameters
• STEREO I/O with Input Gain Selection, works with line- or modular-level signals
• Recording Reel can be up to 2 minutes 54 seconds long
• Record/ create up to 99 Splices per Reel
• SD Card stores multiple Reels
• Sound On Sound allows for layering sounds
• Playback and Recording independent, like having two machines
• Vari-Speed range 12 semitones up and 26 down, over 3 octaves
• 24-bit codec, creates 48k 32bit WAV files
• Back up Reels on computer with SD Card
• Share and download Reels at freesound.org! [see how]
• Includes blank SD Card

Specifications
Width: 20hp
Max Depth (incl. power cable): 45mm
Power:
- 165mA @ +12V
- 20mA @ -12V
