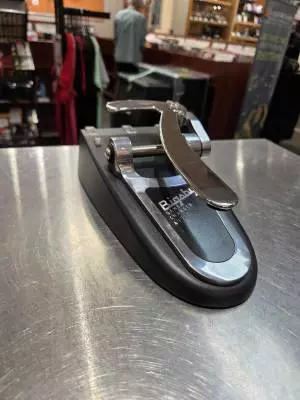

Gamechanger Audio Bigsby Polyphonic Pitch Shifter Pedal

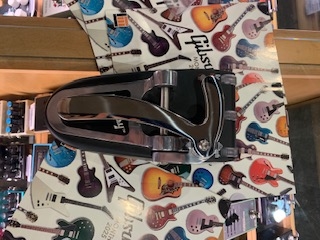

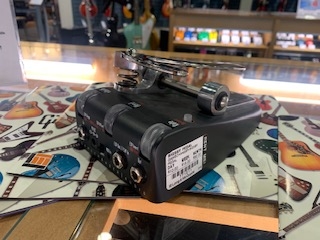

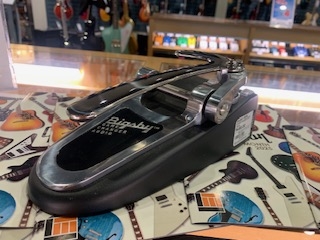

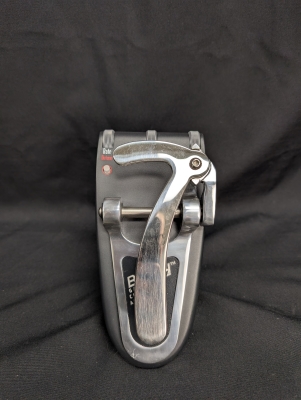

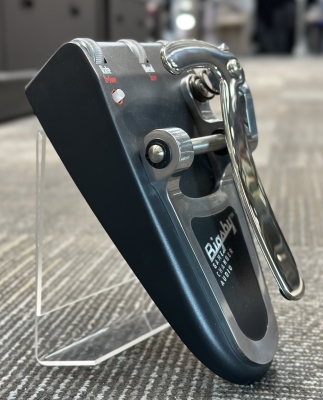

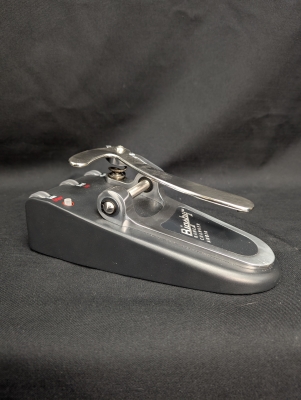

Additional Photos:
The unique spring loaded foot pedal design makes it possible to incorporate pitch shifting into your playing in new and creative ways. The BIGSBY pedal is always "on", the only thing you need to do to activate it is to step on the foot pedal. The algorithm ensures that transitions between the DRY and WET (pitched) signals are as smooth as possible, allowing you to seamlessly incorporate pitch bends into complex picking patterns as well as lead and melodic lines.
This opens the door to a world of new strumming patterns, bend combinations and beautiful lap steel and slide inspired licks that cannot be achieved with traditional tremolo systems. Another key component of the BIGSBY Pedals sound is the DETUNE parameter, another carefully crafted algorithm that is designed to emulate the imperfections and dissonant properties of traditional mechanical string bending hardware. As a result, the vibrato effects produced by the BIGSBY Pedal are almost indistinguishable from those of a conventional tremolo arm
Features
• Polyphonic pitch shifting and a reproduction of the BIGSBY tremolo arm string bending and vibrato effects
• Spring loaded rocking foot pedal for upwards and downwards pitch bending movements
• High quality buffered bypass and seamless transitions into and out of bypass
• Multi-function LED lit knobs. LED color and intensity are indicators of the selected parameters and values
• AUTO mode, with an LFO controlling the pitch bend rate and the foot pedal controlling pitch bend depth
• Up to 12 semitone pitch shifts in both directions. The pitch bend range can be set separately for both directions
• Foot pedal and pitch shift direction invert switch
• BLEND control for mixing in the DRY signal to achieve harmonizer or chorus sounds
• DETUNE control for emulating the tuning instability of hardware tremolo systems
• Full MIDI PC and CC control over all parameters and extended functionality. A 3.5 mm TRS to 5 pin DIN MIDI adapter is included
• 10 user preset slots accessible via MIDI PC
• Expression output for controlling other gear with the spring loaded dual direction foot pedal, with adjustable expression depth and center position offset controls
• Latching mode is accessible via an external footswitch. The BIGSBY Pedal is compatible with both momentary and toggle type footswitches with a TS 1/4 inch jack
• KNOB LOCK option to prevent accidental parameter adjustment during performances
• Powered by a standard 9V DC center negative power supply with at least 500 mA. Power supply is not included

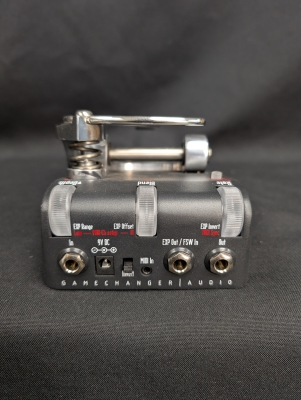

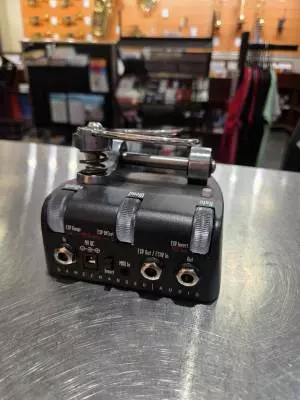

Specifications
Connector type In: 1/4" Unbalanced TS
Input impedance: 1 MΩ
Max input level: 9 dBu
Connector type Out: 1/4" Unbalanced TS
Output impedance: 100 Ω
Max output level: 9 dBu
Connector type Exp: 1/4" Unbalanced TRS (Exp out) / 1/4" Unbalanced TS (FSW in)
Input impedance (ring): 100 kΩ
Output impedance (tip): 220 Ω
Max input level: 20 dBu
Max output level: 20 dBu
Connector MIDI: 3.5 mm TRS (mini jack), Type B
Type: Optically isolated input, RF filtered
Frequency response: 20 Hz to 20 kHz (1 dB)
Signal to noise ratio: 90 dB (A weighted)
Operating temperature: 0° to 50° C
Connector type power supply: 9V DC, center negative 2.1 x 5.5 mm plug
Input voltage: 9V DC
Input current: 220 mA
Power consumption: 2 W
Dimensions (LxWxH): 220 x 110 x 86 mm / 8.6 x 4.3 x 3.3 in
Weight: 960 g / 2.11 lb
