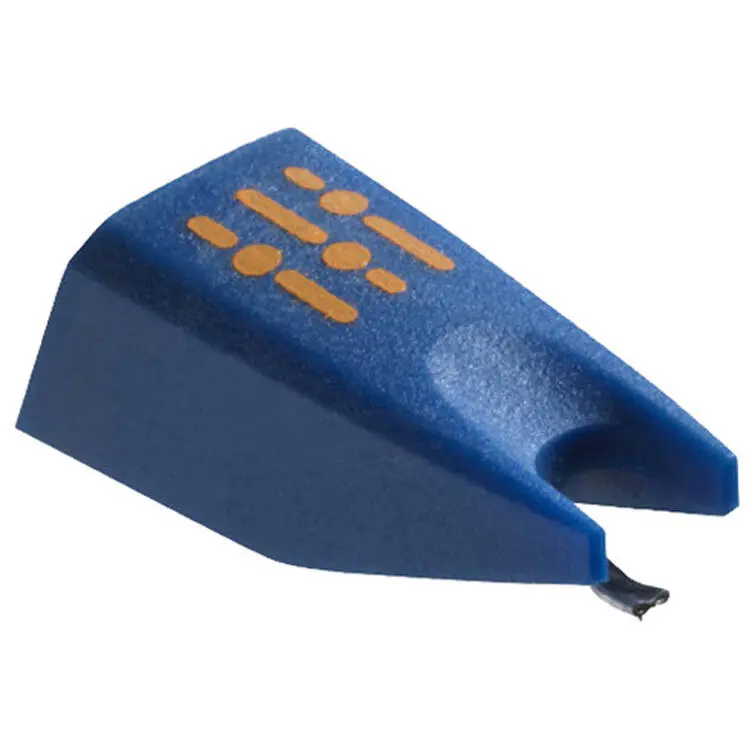

Ortofon Concorde MKII DJ Replacement Stylus

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear. The DJ is great for any style of music.

All in all: Improved tracking, alongside of accurate sound reproduction and an excellent groove handling.

Specifications
Output Voltage at 1000Hz, 5cm/sec.: 6 mV
Channel Balance at 1kHz: 1 dB
Channel Separation at 1kHz: 22 dB
Channel Separation at 15 kHz: 15 dB
Tracking Ability at 315 Hz at Recommended Tracking Force: 100 μm
Compliance, Dynamic Lateral: 14 μm/m N
Stylus Type: Spherical R 18 μm
Tracking Force Range: 3 - 5 g
Tracking Force Recommended: 4 g
Internal Impedance, DC Resistance: 700 Ohm
Internal Inductance: 450 mH
Recommended Load Resistance: 47k Ohm
Recommended Load Capacitance: 200-600 pF
Cartridge Weight: 18,5 g
Replacement Stylus Unit: DJ
