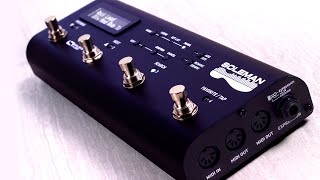

Source Audio Soleman MIDI Foot Controller
Additional Photos:
Product Videos :
Scene Mode
In Scene Mode, the Soleman steps through programs in sequential order and outputs Program Change messages, Note On messages, or Macros. Program Change messages are enabled by default. This is the simplest mode of operation and matches the functionality of most basic MIDI controllers. This mode works very well with Source Audios Neuro Hub, as a way to recall Scenes. Scenes are basically a way of storing preset information for multiple effects pedals in the same system, with the benefit of being able to save and recall those presets all at the same time with a single program change message.
List Mode
List Mode is similar to Scene Mode in many ways: scenes can be selected using the Previous and Next footswitches, and each scene will output (by default) a corresponding MIDI Program Change message. The advantage of List Mode is that the user has control of the order of the Scenes. Users can create up to 64 custom Lists, each containing up to 90 Scenes.
Panel Mode
Panel Mode is the most powerful and flexible operating mode of the Soleman. In Panel mode, each footswitch is capable of sending a completely customizable MIDI message (or group of multiple MIDI messages) when it is activated as well as a different MIDI message (or group of multiple MIDI messages) when it is deactivated. This allows the user to create a control surface that is highly customized for their specific use case.
Features
• Highly configurable MIDI controller contained in a compact and durable housing
• Four footswitches to scroll through presets (ie "scenes"), launch individual MIDI messages, step through set lists, or trigger highly customizable MIDI macros
• Scene mode, list mode, and panel mode
• Preset ("scene") naming
• Configuration software
• Two MIDI outputs
• USB-MIDI interface
• Expression pedal
• Tap tempo
• External switch port
• Anodized aluminum housing
Specifications
Power:
- 70 mA@9V DC negative tip (positive sleeve) barrel power jack
- 2.1 mm inner diameter
- 5.5 mm outer diameter 5V DC bus power (USB)
Dimensions LxWxH: 10.5 x 3.75 x 2.75 in / 26.7 x 9.5 x 7 cm
Weight: 2.2 lb./1 kg.
