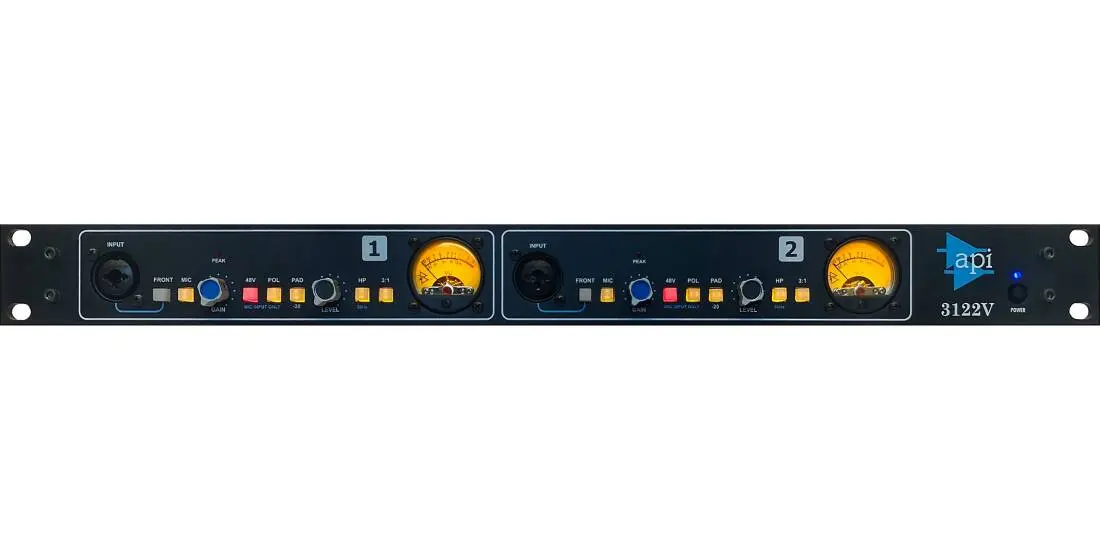

API 3122V 2-Channel Mic/Line Preamp with Variable Output
Additional Photos:
Features
• 2 Channels of classic API circuit design
• API 2520 and output transformer
• Proprietary AP2516 input transformer
• Variable output control
• Fixed frequency high pass filter
• Vintage style analog VU meters
• 3:1 Output transformer tap selection
• Two switchable front or rear XLR input
• Front panel 1/4" Hi Z instrument input
• Front panel mic/instrument selection switch
• Front panel polarity switch
• Front panel 48V power switch
• Front panel -20dB pad switch
• Peak LED
• Maximum 68dB of gain
Specifications
Input Impedance:
Mic: 1500 Ohms
Hi-Z: 470 kOhms unbalanced
Output Impedance: Less than 75 Ohms, transformer balanced
Nominal Levels: XLR channel output: +4 dBu
Frequency Response: +/- 0.5 dB, 20 Hz to 40 kHz
SNR:
Mic: -128 dB
Hi-Z actual: -106 dB
Gain Range:
Mic input: 14 dB min., 68 dB max (inc. pad)
Hi-Z: -6 dB min., 48 dB max (inc. pad)
Metering:
VU calibrated for XLR output, 0VU = +4 dBu
PEAK LED calibrated to +18 dBu at 312 amp output
Connections:
Front: two female mic input XLRs, two Hi-Z instrument inputs
Rear: two female mic input XLRs, two male line output XLRs
Power Consumption, Quiescent: 8 Watts
Size:
Dimensions: 19" X 1.75" (1U) X 11" Deep
Weight:9 lbs.
