Yorkville Sound YXL15P 15 Inch 1000 Watt Powered Loudspeaker
Additional Photos:
Product Videos :
Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.
YXL15P Features
• 1000 watts (peak) 500 watts (program)
• Superior DSP processing with component protection
• 15-inch woofers with 2.5-inch voice coil
• 1-inch HF compression driver
• 90 x 40 HF dispersion Horn
• Dual purpose full-range and wedge monitor speaker
• Ultra-clear reproduction throughout the whole audio bandwidth
• Lightweight and high efficiency bi-amped power module
• Low distortion and high power-handling

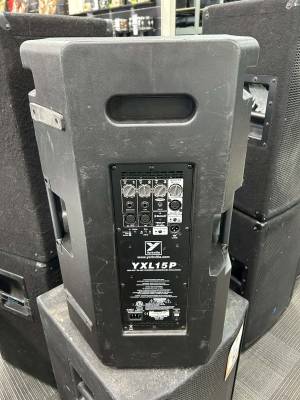

• Recessed control panel
• Master Level control with Activity indicator (cabinet level adjustment)
• 3 Performance modes, Concert, Club and Monitor
• Defeatable 3 channel mixer with level controls and Clip indicators
• Bluetooth input / streaming, not affected by Mixer Defeat
• 2 Microphone Inputs with level control and phantom power
• 1/4-inch TRS Instrument and Line Inputs
• 1/8-inch Aux Input for connecting mono or stereo audio sources
• An XLR Main In and Link output for easy connection and looping
• Selectable Sub filter (HPF) for connecting a subwoofer
• ABS / Polypropylene cabinet construction
• Tough, full length metal grille
YXL15P Specifications
• System Type - Active Loudspeaker
• Active or Passive - Active
• Power Rating (Watts) - 500 Watts Program (1000 Watts Peak)
• Max SPL (dB) - 127dB Continuous
• Frequency Response (Hz +/- 3dB) - 45 - 16k (Hz +/-3dB)
• Dispersion (H x V) - 90 x 40
• Crossover Frequency (Hz) - 1.6kHz
• HF Horn - Integrated into Baffle
• LF Driver(s) - 15-inch (2.5-inch voice coil)
• LF Power Rating (Watts) - 450 Watts Program (900 Watts Peak)
• HF Power Amplifier (Watts) - 50 Watts Program (100 Watts Peak)
• HF Amplifier Type - Class A/B
• LF Amplifier Type - Class D
• Cooling Scheme - Speed controlled fan
• Power Cable - Yes
• Power Switch - Yes
• Mixer Controls - 3 recessed dial controls
• Level Controls - x3 Chanels + Master
• EQ Controls - Push button select, Concert, Club, Monitor
• Limiter - Multiband excursion, RMS, rail
• Other Controls / Features - 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
• Feet - Rubber
• Bar Handles - 2 x Side / 1 x Back
• Flying Hardware - 2 (Top), 1 (Pullback)
• Enclosure Materials - Polypropelene, Metal grille
• Baffle Material - Polypropylene
• Grille - Powder Coated Steel with Grille Cloth
• Other Details - Rubber feet on bottom and side with the monitor Wedge
• Dimensions (DWH xbackW, inches) - 21 x 18.5 x 32
• Dimensions (DWH xbackW, cm) - 52 x 47 x 79
• Weight (lbs/kg) - 45 / 20.4
