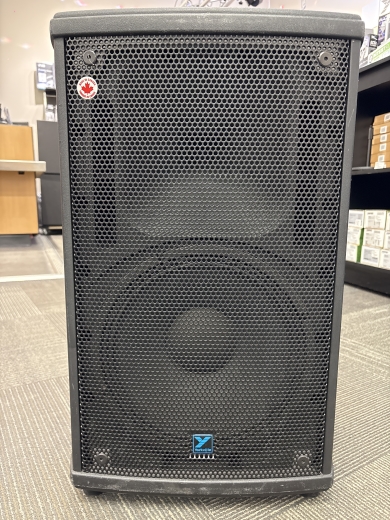

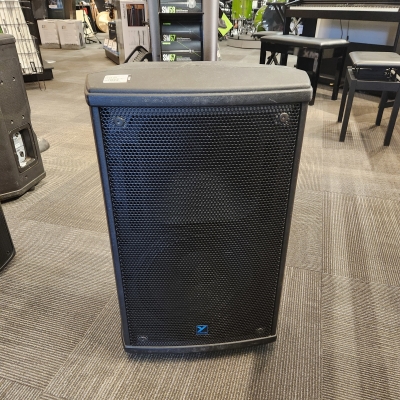

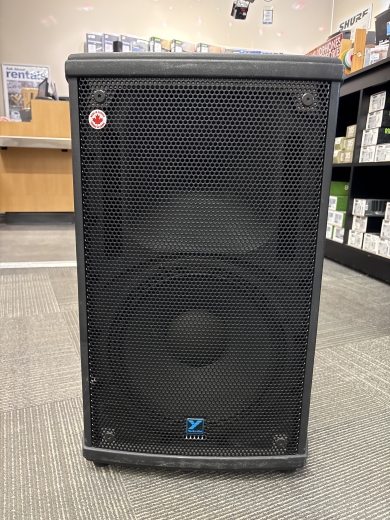

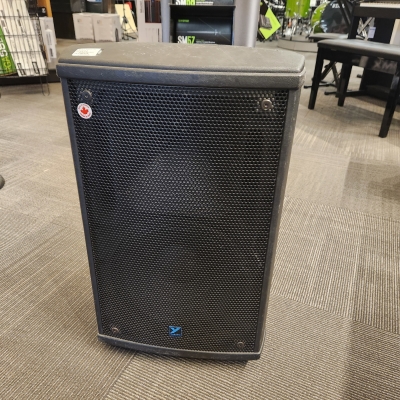

Yorkville Sound 500Wpgm, 8-Ohm 12'' + 1'' PA Speaker
• 500-Watt Full Range Loudspeaker, 1,000 Watts peak
• Dual purpose full range/wedge monitor format
• Ultra-clear reproduction throughout bandwidth
• Ultra-high-efficiency performance requires less power for more output
• High quality 1" High Frequency drivers
• Next generation woofer / driver / horn technology
• Integrated flypoints
• Tough, full length metal grille

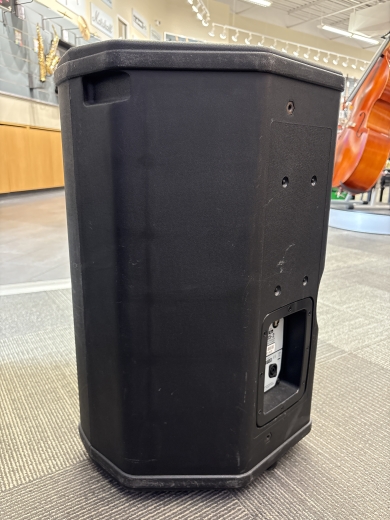

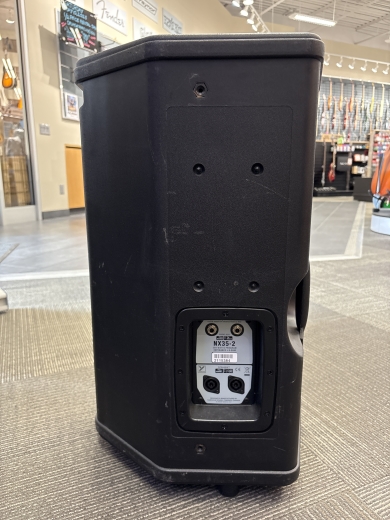

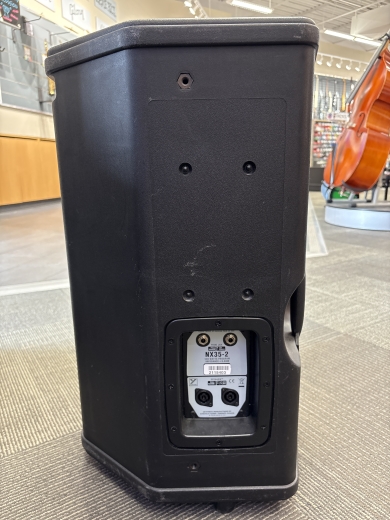

• Recessed Input panels
• Dual bulb CTL Horn protection system
• Made in Canada
Specifications
System Type: 2-Way
Active or Passive: Passive
Power Capacity: 500 Watts pgm, 1000 Watts Peak
Biampable: No
Nominal Impedance: 8 Ohms
Sensitivity: 100dB@1Watt@1m
Max SPL: 130dB Peak, 127dB Continuous
Frequency Response (Hz +/- 3dB): 60 - 18k
Crossover Frequency: 2kHz
Driver Configuration: 12 inch / 1 inch
HF Driver: 1.4-inch Aluminum Diaphragm w/1-inch exit
HF Impedance: 8 Ohms
HF Dispersion (H x V degrees): 80 x 50
HF Protection: Dual bulb CTL (current-to-light)
LF Driver: 12-inch cone w/2.5-inch voicecoil
LF Impedance: 8 Ohms

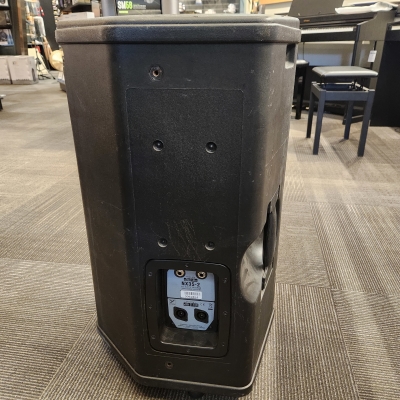

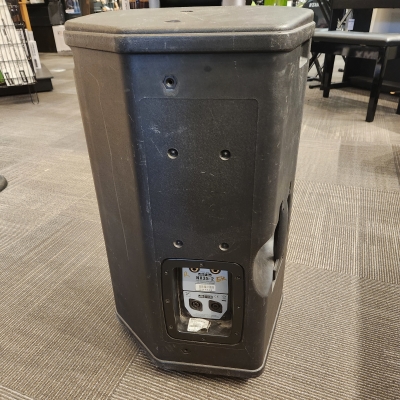

Inputs: 2 x 1/4" jacks + 2 x 4-pin Speakons

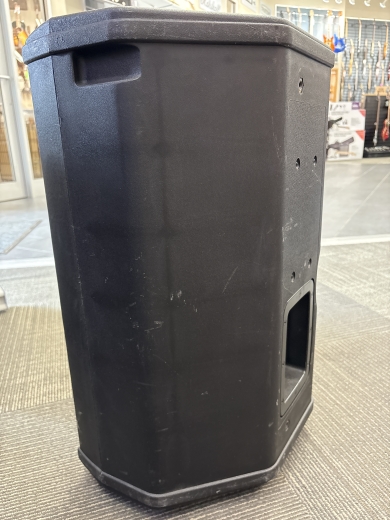

Handle: 1 bar (Side)

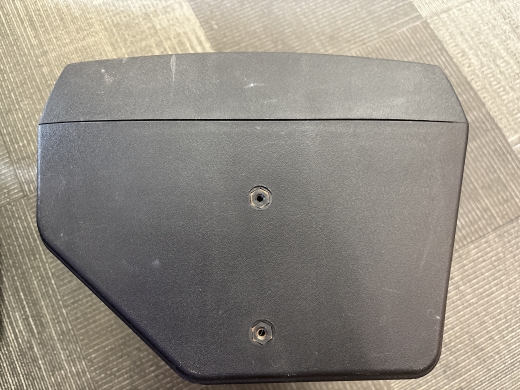

Flypoints: 1/4-20 x 5 - 2 Top, 2 Bottom, 1 Pullback
Optional Flying Hardware: NXF Flyware
Pole Mount Adapter: steel, 1 3/8" (3.5cm) dia.
Enclosure Material: Molded Polypropylene
Grille:Black Perforated Metal
Finish:Black
