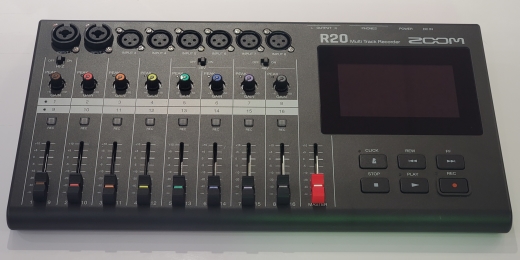

Zoom R20 16 Track Recorder with Touchscreen Interface
Additional Photos:
Product Videos :
YouTube Video
With a familiar touchscreen interface, the R20 makes it insanely simple to track, edit and mix your songs, letting you focus on the music. The R20 has the best preamps and noise floor of any multi track recorder Zoom has ever designed. With six XLR inputs, two combo inputs, and 16 tracks of recording, the R20 is perfect for singer-songwriters to full bands.
Features
• 4.3" Full-colour LCD touchscreen display
• Easy-to-use DAW-inspired interface
• Record up to 16 tracks (8 simultaneously)
• Eight XLR mic preamps, including two mic/line/instrument combo jacks
• Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
• Onboard editing and built-in effects
• Pre-loaded drum loops
• Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
• USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
• Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
• New locking-type AC Adapter (ZAD-1220)
• Up to 24-bit /44.1kHz audio in BWF-compliant WAV
• Compatible with Guitar Lab software for Mac/Windows PC
Specifications
• Inputs: Mic/line (Mono) X8
• Outputs: Master out X1
• Maximum simultaneous recording tracks: 8
• Maximum simultaneous playback tracks: 16
• Maximum number of simultaneous effects: 3 effects
• Patch memories: 50
• Tuner: Chromatic/guitar/bass/open A/open D/open E/open G/DADGAD
• Remote: Dedicated wireless adapter (Zoom BTA-1)
• Power: Ac adapter (Zoom Zad-1220): 12 V/2.0 A
• Power consumption: 11 W maximum
• External dimensions: 378 mm (W) x 206 mm (D) x 58 mm (H)
• Weight (unit only): 1.33 Kg
Features
• 4.3" Full-colour LCD touchscreen display
• Easy-to-use DAW-inspired interface
• Record up to 16 tracks (8 simultaneously)
• Eight XLR mic preamps, including two mic/line/instrument combo jacks
• Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
• Onboard editing and built-in effects
• Pre-loaded drum loops
• Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
• USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
• Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
• New locking-type AC Adapter (ZAD-1220)
• Up to 24-bit /44.1kHz audio in BWF-compliant WAV
• Compatible with Guitar Lab software for Mac/Windows PC
Specifications
• Inputs: Mic/line (Mono) X8
• Outputs: Master out X1
• Maximum simultaneous recording tracks: 8
• Maximum simultaneous playback tracks: 16
• Maximum number of simultaneous effects: 3 effects
• Patch memories: 50
• Tuner: Chromatic/guitar/bass/open A/open D/open E/open G/DADGAD
• Remote: Dedicated wireless adapter (Zoom BTA-1)
• Power: Ac adapter (Zoom Zad-1220): 12 V/2.0 A
• Power consumption: 11 W maximum
• External dimensions: 378 mm (W) x 206 mm (D) x 58 mm (H)
• Weight (unit only): 1.33 Kg
Media
Youtube video product demo
Q & A
There are currently no questions for this product.
Reviews
3.142.136.210
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
An upgrade from the R16 in the IMPORTANT areas. 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Halifax, Nova Scotia
Sound-wise, the playback sound and guitar effects are much nicer than the R16 right out of the box.
The compressors are very useful on this. The R16 compressors I found useless.
The ability to improve on already great sounding guitar effects sets it way above the R16's abilities. I could never get a great sounding metal tone out of the R16, but the presets in the R20 are nice even before tweaking them.
Navigating through songs with markers was easier with the R16 since there was dedicated marker buttons, though I've had this 1 week and haven't checked out the online manual to see if there are easier options to make markers.
Those R16 marker buttons were SOOOO easy, though.
Too bad I didn't wait a week though....the darn things went from $519 to $449 in less than 1 week! D'oh!!!!
The compressors are very useful on this. The R16 compressors I found useless.
The ability to improve on already great sounding guitar effects sets it way above the R16's abilities. I could never get a great sounding metal tone out of the R16, but the presets in the R20 are nice even before tweaking them.
Navigating through songs with markers was easier with the R16 since there was dedicated marker buttons, though I've had this 1 week and haven't checked out the online manual to see if there are easier options to make markers.
Those R16 marker buttons were SOOOO easy, though.
Too bad I didn't wait a week though....the darn things went from $519 to $449 in less than 1 week! D'oh!!!!
Posted by Jackson Axe on Oct 25, 2022
Compact & feature laden 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Peterborough, Ontario
I bought the Zoom R-20 because I wasn't familiar with computer program DAWs and had always worked on standalones. I found just reading the instructions on DAWs and the tinkering involved to much of a hassle. I'm a hand-on, tactile amateur musician and learn better from doing than reading about/studying about it.
The R-20 is more compact than my last standalone; a Tascam 2488 MrkII. It's hands on (faders, knobs) but also has a 4.3" full colour LCD touchscreen with colour-coded tracks for each track (knobs colour-coded, too).
The LCD has short-cut icons at the top for easy access to settings. Mine came with a free-to-use version of Cubase-LE. Unfortunately, although I followed instructions verbatim, I can't download the user interface for the program, just the plug-ins, etc. Zoom couldn't help me with the problem; I've tried in vain to contact Steinberg about it (as I've read others have as well). I may have to contact Yamaha, Steinberg's rep in Canada.
It doesn't come with a CD burner, which I'm used to so I will have to transfer master songs to a DAW at some time, I think.
It's a great little machine for amateurs 'cause face it, pros go mostly to recording studios with higher-end equipment.
I'm quite satisfied and Long & McQuade has been fantastic in helping me out with financing. No complaints, here.
Posted by Wayne on May 27, 2022
