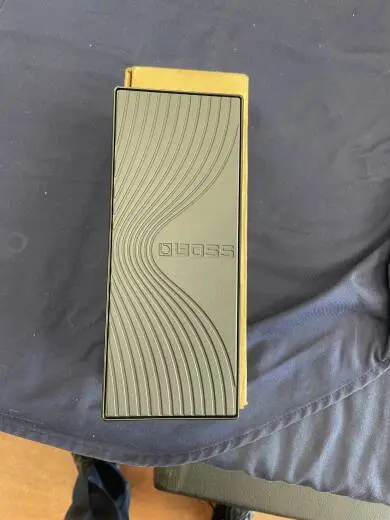

BOSS EV-1 WL Wireless Expression Pedal
Additional Photos:
Control MIDI Stompboxes, Multi-Effects, and More
With its space-saving TRS MIDI output, the EV-1-WL is a powerful accessory for all types of MIDI music hardware, from effect pedals and multi-effects processors to keyboards, drum machines, and beyond. Use a TRS-to-TRS cable to connect with BOSS pedals equipped with TRS MIDI, including 200 series effects and the RC-5 and RC-500 Loop Stations. Or grab the BOSS BMIDI-5-35 cable to connect with any device that has a standard 5-pin MIDI input jack.
Deep Customization
The free EV-1-WL Editor app for iOS and Android devices lets you customize MIDI CC assignments for the EV-1-WL's pedal, toe switch, and up to two external footswitches. The Bluetooth, USB, and TRS MIDI outputs support simultaneous operation, and you can create independent control settings for each. It's also possible to set the switches for momentary or latching operation, adjust the pedal's response curve, and much more.
Features
• Powerful MIDI control pedal with three ways to connect: Bluetooth wireless, USB, and TRS MIDI
• Use all three outputs at once with independent MIDI CC settings for each
• Communicate wirelessly with the BOSS GS-1-CTM guitar, Waza-Air, and any device that supports Bluetooth MIDI
• Class-compliant USB for plug-and-play operation with music software on macOS and Windows computers
• TRS MIDI output for controlling MIDI devices with TRS or 5-pin inputs
• Supports communication with the Roland WM-1 and WM-1D wireless MIDI adaptors
• Built-in toe switch with on/off indicators on both sides of the pedal
• Control input for up to two BOSS FS-series footswitches
• Dedicated iOS/Android app for assigning MIDI CC numbers, customizing the response, and more
• Powered with two AA batteries or BOSS PSA-series adaptor
• Compatible with: GS-1, WAZA-AIR, KTN-AIR, POCKET-GT, GT-1000, WM-1
Specifications
Controls
• POWER switch
• Bluetooth button

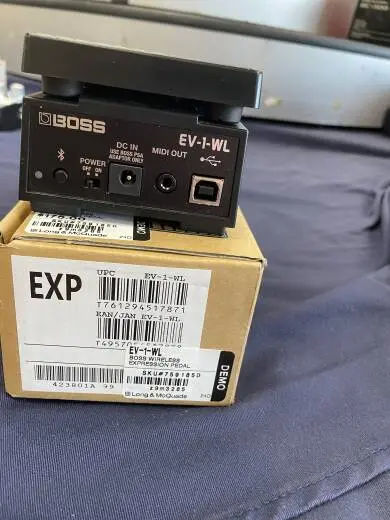

Connectors
• MIDI OUT jack: stereo miniature phone type
• USB COMPUTER port: USB B type
• CTL 1, 2 jack: 1/4-inch TRS phone type
• DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately)
Current Draw: 75 mA
Expected battery life under continuous use (Alkaline battery): 30 hours
Dimensions (W x D x H): 87 x 200 x 62 mm / 3-7/16 x 7-7/8 x 2-1/2 inches
Weight: 600 g / 1 lb 6 oz; 650 g / 1 lb 7 oz (including batteries)
Accessories
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- Alkaline battery (AA, LR6) x 2
Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
TRS/MIDI connecting cable: BMIDI-5-35
