EVH 5150 Iconic Series 40W 1x12 Combo - Black
Additional Photos:
Product Videos :
Designed by renowned amp engineer, James Brown, the 5150 Iconic Series 40-watt 1x12 combo, is powered by two JJ 6L6 power tubes and voiced with two JJ ECC83S preamp tubes, providing all the firepower the modern guitarist needs. Armed with a custom designed EVH 12" Celestion speaker voiced specifically for this preamp circuit, the pristine cleans and searing high gain tones are tight, clear and articulate. The cabinet is constructed out of MDF with special internal plywood baffling for tight and increased bass response, and houses a custom designed EVH 12" Celestion speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.
Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel's burn button adds fiery crunch that's ideal for blistering leads.

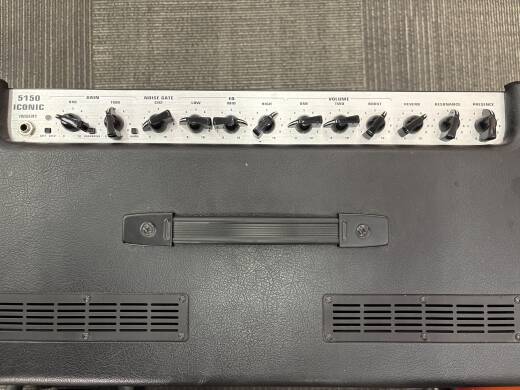

Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The channel two noise gates' quick attack suppresses any hiss while ensuring all staccato riffing is articulate and crisp, not choked and choppy. The Boost control on Channel 2 allows you to add another 10dB of foot-switchable volume to your tone - perfect for ensuring your solos cut through the mix. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.
Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, 1/4 power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system.

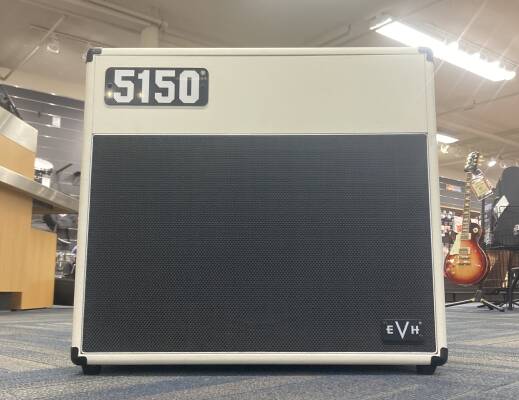

Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 40-watt 1x12 combo is wrapped in either Black or Ivory textured vinyl with a black cloth front grille and features silver and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle. A high-quality fitted cover is available as an EVH Accessory.
Features
• 40-watt 1x12 combo
• Cabinet is constructed from MDF with a plywood baffle
• Two channels: Green and Red; Green channel has overdrive button to go from clean to increased gain, while the Red channel has a burn button to go from lead to burn
• Dual Gain, Noise Gate (Ch 2), Shared Low, Mid, High EQ, Dual Volume, Shared Boost and Global Reverb, Resonance and Presence controls

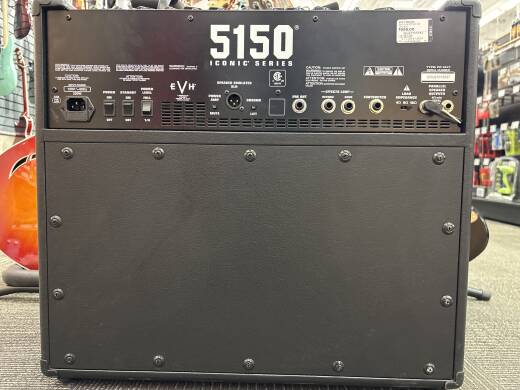

• 1/4 Power level switch, standby switch, power switch and ground lift located on rear panel
• Selectable impedance (4, 8 or 16 ohms)
• Two JJ ECC83S preamp tubes and two JJ 6L6 power tubes
• One 12" EVH Celestion Custom speaker
• Dual parallel speaker output jacks
• Effects loop
• XLR DI out with speaker simulation
• Two-button footswitch included
• Available in Black or Ivory with black cloth front grille and silver and black 5150 and EVH logo badges
• Optional high-quality fitted cover is available, sold separately
Specifications
SERIES: EVH 5150 Iconic Combos
AMPLIFIER TYPE: Tube
INPUTS: One - 1/4"
SPEAKERS: One - 12" EVH Celestion Custom
SPEAKER JACK: Two - 1/4" Parallel
CHANNELS: Two - Clean/Overdrive and Lead/Burn
CONTROLS: Channel 1: Gain w/ Overdrive Switch; Channel 2 Gain w/ Burn Switch; Noise Gate Channel 2: Low, Mid, High EQ; Channel 1/ Channel 2 Volume, Master Boost, Global Reverb, Resonance, and Presence
CONTROL KNOBS: Black Chicken-Head Style Pointer
WATTAGE: 40 Watts
PREAMP TUBES: 2 x JJ ECC83S (12AX7)
POWER TUBES: 2 x JJ 6L6
RECTIFIER TUBES: Solid State
CABINET MATERIAL: MDF w/ Plywood Baffle
GRILLE CLOTH: Black
AMPLIFIER COVERING: Black Textured Vinyl
COLOUR: Black
HANDLE: Molded Plastic Strap with Black Powder Coated Caps
Media
Description: André Skinner and Kevin Simpson give an in-depth demonstration and overview of the new EVH Iconic Series 5150 combo amp. This video contains a full rundown of the amp’s features along with an amazing playing demo by Kevin Simpson.
Q & A
- asked on Feb 12, 2024
- answered by roy shermack, Edmonton Highlands, Alberta
Reviews
of my guitar.
I get endless sustain standing in front of it.
Had to get a capo because my fingertips were getting blood dots under the skin from holding the string so long.
Have an Ibanez with Sustainiac pickup but never use it because the EVH amp does it with any guitar!
The 5150 has a really great reverb which provides a built in option. The DSL40CR has reverb but it is less than the 5150. The 5150 you can turn it down. The DSL you only turn it has high as the amp provides. That feature is better in the 5150.
I like them both. Massive high gain and both sound great when clean.
I would probably decide based on which one I could get if I was buying today.
You can't lose either way.
Available In Gear Hunter
Sale Price: $999.00
