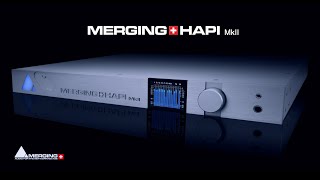

Merging HAPI MkII
Additional Photos:
Product Videos :
YouTube Video
YouTube Video
Your Price: $3,625.00 CDN
or from $168 CDN/mo
MERGING+HAPI has been a hugely popular networked audio converter and instrumental in introducing so many to the exciting world of RAVENNA/AES67. Its economical form factor made it the ideal local stagebox or studio rack unit for any application. Now is the time to build on that success with new technology and new features that still allow full interface card compatibility with the original Hapi and Horus products.
Hapi MKII utilizes the ZMAN technology introduced with Anubis and this powerful processor allows some very meaningful performance upgrades. The recent introduction of the ADA8S and ADA8P cards improved the headroom of the mic-pre inputs and effectively doubled the analog I/O count to 16 in/16 out in DSD, all in 1U rack mountable box.
Merging's range of audio device options make Hapi the optimum interface for any DAW, regardless of OS.
Modular By Design
Build a Hapi unit to fit your exact needs by adding from range of analog and digital option cards. Put small amount of inputs and outputs in various locations, or load 16 channels of analog I/O in a single unit. Digital I/O conversion and routing can also be managed in this compact unit. Flexibility and power in any form you need.
Horus Quality, Hapi Size.
Able to hold both the standard and premium analog cards from the Horus means that Hapi owners get the exact same sound that Horus users have been winning awards with for many years.
AES67 Built-In
Using RAVENNA (AES67 compatible), Hapi is able to provide flexible connectivity of every single input and output across standard networks, using off-the-shelf network equipment. The future is most definitely networked audio, and Hapi provides it today.
AC or DC power... Proper Rock and Roll.
With a choice of AC or DC power supplies, Hapi is able to be powered from standard power sources and from battery packs and "wall warts" as well! Implemented for a variety of reasons, from sound quality concerns to what is available on site.
Completely Controlled Over LAN
Hapi is designed to fit into hard to reach places. So, Hapi comes with the same web-browser based control interface allowing any web-enabled device to access all the parameters of each Hapi unit over the network. ANEMAN can easily manage AoIP networks of any size.
Broadcast Standards Compliance
Merging has kept abreast of AoIP developments by participating in international showcases and standardisation events. It is no surprise that Hapi MKII complies with the key broadcast requirements.
ST2022-7 Seamless Protection Switching
Adding to the fantastic and constantly evolving feature set of Hapi, the Hapi MkII version features two network ports for ST2022-7 compliance.
NMOS
While all MERGING Devices can be discovered and inter connected using MERGING ANEMAN Network Manager, Hapi MkII (as well as all other Merging interfaces) is also capable to register itself into an NMOS server as well as comply to connection requests from a compliant NMOS Network Manager such as VideoIPath from Nevion.
Hapi MkII is compliant with:
• NMOS IS-04 (Discovery & Registration)
• NMOS IS-05 (Device Connection Management)
SMPTE ST2110
MERGING holds strongly to its commitment to broadcasters and has been implementing all the new IP protocols into its products. As a regular participant in IP Showcase events, Merging has implemented ST2110 and AES67. Hapi MkII meets the demanding requirements of JT-NM and is self-certified.
Features
• Channel-based routing. Each channel can be routed individually to make the most efficient use of resources
• Improved Headphones specifications and features
- Mastering grade Headphone Amp
- Powerful Headphone Amp suitable for ultra-low to very high impedance headphones.
- Headphones DSD volume support (DSD64, DSD128, DSD256)
- Headphones DSD256 support.
• New front panel with improved display. Clear Plexiglas with dimming options
• ST2022-7 Support. Perfectly complementing Anubis SPS and MAD, Hapi MKII is now fully compliant with the Seamless Protection Switching strategy
• Switch mode support - Remove the need for an external network switch when using one other Networked Interface
• Additional DA Roll Off filters
• Per channel DA Trims level and polarity support
• 0.1 dB level precision steps on DA and all trims - Precision mastering control
• Per channel Headphones Trims level and polarity support
Base Unit - Hardwired Features
Digital I/O
• 8 AES/EBU I/O (D-SUB)
• 8 ADAT / 2 SPDIF (Switching)
• RAVENNA / AES67 (RJ45)
• Word Clock I/O
Synchronization I/O
• LTC
• MIDI
• Video Reference
Sample Rate support
• 44.1 - 384 kHz PCM
• DXD and DSD64/128/256
User Interface
• Remote control over LAN (CAT5E/CAT6)
• Direct access on unit with rotary control
Redundant Power Options:
• Optional DC power input to be used as a redundant or alternate power source
Specifications
Case Material: Powder Coated Steel
Front Panel Material: Brushed Aluminum
Weight (excluding redundant PS): 4.5 kg / 10 lbs
Dimensions (1U rack mounting): 483 x 320 x 44 mm
Voltage (AC): 90V-260V, 47-63 Hz
Voltage (DC) (optional): 10-14V
Power Consumption (Max): < 30 Watts
Front Panel TFT size/resolution: OLED (160x128 px)
Headphone Monitor Jacks
Headphone Jacks: 6.35mm (1/4") & 3.5mm TRS Female Stereo
Dynamic Range (A-weighted, typ.) High / Low: > 118 dB
Max output Level High / Low: 15.5 dBu / 7.3 dBu (load 600/16 Ω)
Max output Power: 2 x 200 mW (load 16 Ω)
Frequency response +0/-0.2dB @ fs = 48 kHz: 6 Hz - 22 kHz
Frequency response +0/-3dB @ fs = 96 kHz: 2 Hz - 44.2 kHz
Frequency response +0/-3dB @ fs = 192 kHz: 2 Hz - 88.1 kHz
Output Impedance: 20Ω
THD+N 1 kHz @ 0 dBFS High / Low: < -106 dB (0.0005%)
Attenuation Range (Software controlled): - ∞ dB to 12 dB
Gain Step / Precision: 0.5 dB / +/-0.05 dB
DXD Support: Native
DSD Support: DSD 64 to DSD 256
Sync Connectors
"Sync" Cable (LTC/Video Ref/MIDI): D-Sub 15Pin
LTC In & Out (via "Sync" Cable): Balanced XLR
Video Reference In (via "Sync" Cable): BNC
MTC (I/O via "Sync" Cable): 5-Pin DIN
Word Clock Input (Switchable 75 Ω Termination): BNC, 0.5Vp-p min
Word Clock Output (Zout = 35 Ω): BNC, 5Vp-p
Maximum supported deviation: +/-1000ppm
RAVENNA Module
RAVENNA Primary / Secondary (GbE): RJ45
AES-EBU Module
AES Connector pinout (DB-25 female): DB25 / AES59 (Tascam Dig.)
AES I/O: Grounded and transformer coupled
Input & Output Impedance: 110 Ω
MADI Module
MADI types (Coaxial / Optical): BNC / SC
Input & Output Impedance: 110 Ω
ADAT Module
ADAT/SPDIF: Optical Toslink
