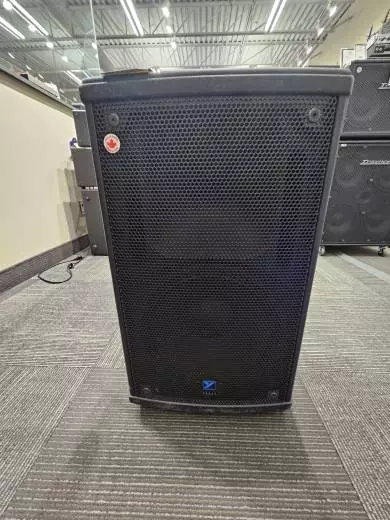

Yorkville Sound NX Series 600 Watt Peak 12-Inch+Horn Active PA Cabinet

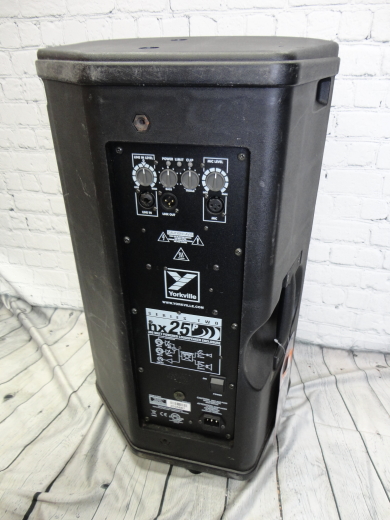

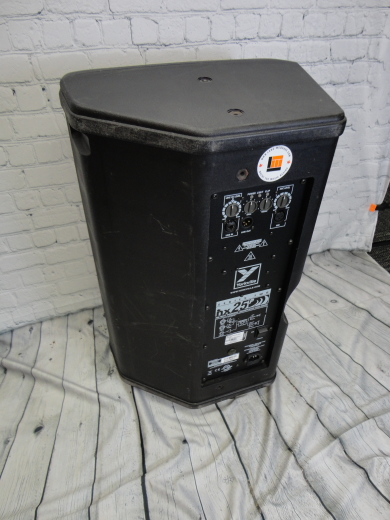

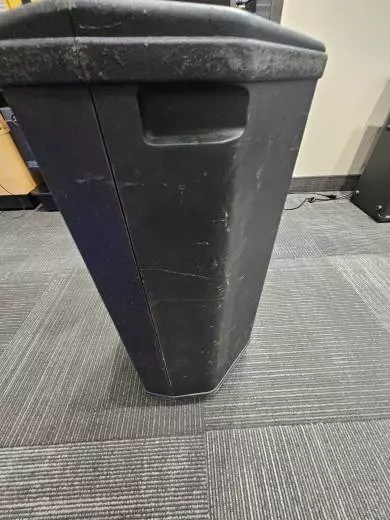

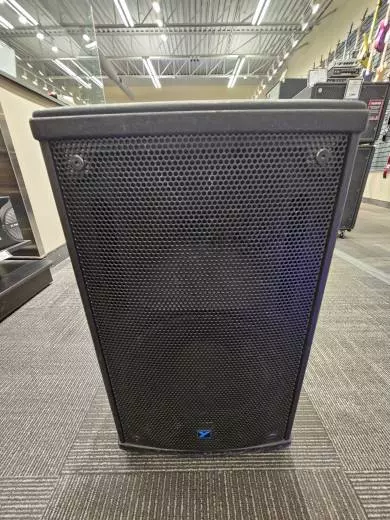

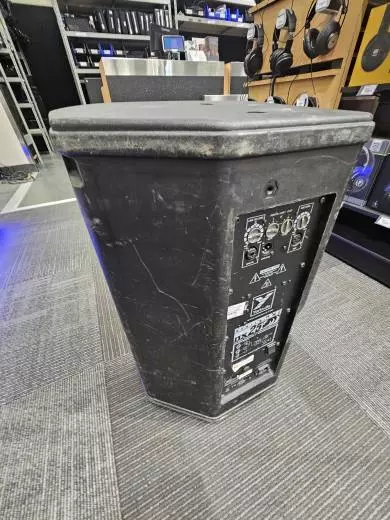

Additional Photos:
The new NX25P-2 offers the best value in a 12-inch and horn active loudspeaker cabinet. The bi-amped 300-watt (Program) power module has a minimum of controls yet provides maximum versatility making the NX25P the ideal solution for many applications.
Two-band EQ, XLR balanced microphone input as will as balanced combi-jack line input on the power module means the NX25P-2 can be easily connected to any source and quickly EQ balanced for the room. An XLR balanced line output allows multiple cabinets to be linked together for use in an array or for easy distribution around a large room when used as repeater cabinets.
The horn amplifier produces loud clean transients to keep up with the high output of the Class-H two-tier amplifier driving the woofer. The high efficiency Class-H topology delivers higher headroom and lower operating temperature, making it the ideal amplification solution for this active loudspeaker.
The NX25P-2 enclosure, like all cabinets in the NX loudspeaker line, has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor cabinet with well-protected inputs and controls.
The NX25P-2 can easily be used in any orientation, and close to walls, floors and in close arrays with multiple cabinets. Particular care was taken designing the components to reduce extraneous heat production.
Technology
Non-resonant Polypropylene construction materials, an improved cabinet design with greatly reinforced internal structure improves the low frequency response of the NX Series boxes, making for a better and more balanced overall loudspeaker performance.
Innovative light weight biamplified power modules deliver high headroom with ample burst power while running at lower operating temperatures - making them a perfect solution for powering the NX Series cabinets.
The modified trapezoidal shape of the NX series loudspeakers allows both active and passive versions to function flawlessly in any PA application. The reinforced cabinet design ensures a proper up-angle and stable footing when NX loudspeakers are employed as monitors, and allows NX cabinets to be packed in more compact arrays or multiple cabinet clusters.

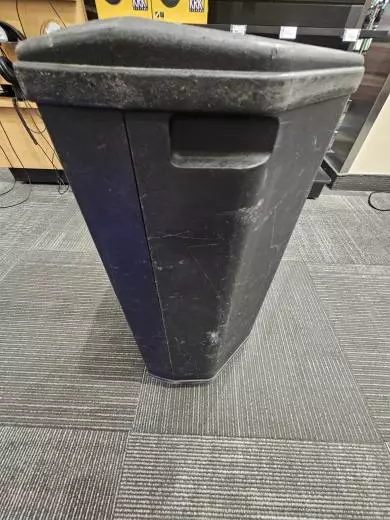

Integrated bar handles and stand mount adaptors make lightweight NX Series loudspeakers an ideal highly mobile live or DJ PA solution. Integrated 1/4-20 flypoints and optional flyware assemblies ensure the NX Series cabinets can be easily adapted to any installation.
Specifications
System Type: 2-Way
Active or Passive: Active
Total Onboard Power: 300 Watts Continuous, 600 Watts Peak
Biampable: Self Powered, Biamp Operation Only
Max SPL: 124dB Peak (120dB Continuous)
Frequency Response (Hz +/- 3dB): 70 - 18k
Crossover Frequency; 3kHz
Driver Configuration: 12-inch / 1-inch
HF Driver: 1.4-inch coil w/1-inch exit PETP Driver
HF Dispersion (H x V): 80 x 50
HF Protection: Peak Limiter
HF Amplifier Type: Class A/B
LF Driver: 12-inch w/Ceramic Magnet
LF Amplifier Type: Two Tier Class H
Power Cable: Removable
Power Consumption (typ/max): 120 / 310 VA

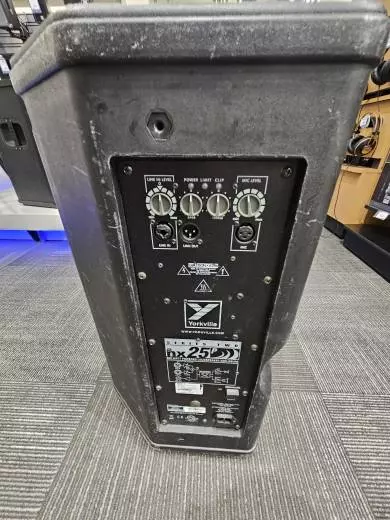

Inputs: XLR mic + XLR/TRS-combi line
Output: XLR male LINK line out
Controls: Mic Gain, Line In Gain + Low and Hi EQ
Limiter: Yes
LED Indicators: Power, Activity & Limit

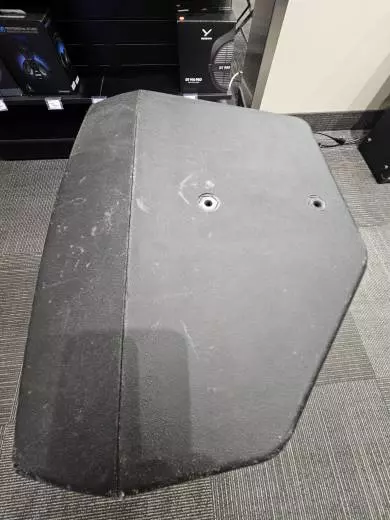

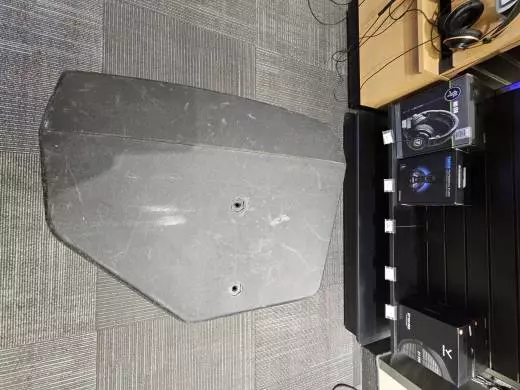

Flying Hardpoints: 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Pole Mount Adapter: 1 3/8"-3.5cm diameter
Enclosure Materials: Moulded Polypropylene
Grille: Perforated Metal
Dimensions(DWH xbackW, inches): 12.25 x 16 x 26.5 x 9
Dimensions (DWH xbackW, cm): 31.12 x 40.6 x 67.3 x 22.9
Weight (lbs/kg): 39 / 17.6
